3.1 Unpacking inspection
When unpacking the product ensure that:
1. No damage can be detected to the inverter unit or to the package;
2. The operation manual, port and installation accessories are to be found in the package;
3. No damage or loss has occurred to the items (accessories) in the package;
4. The product type stated in your order corresponds to the one stated on the product label;
Should you find any problem, contact your supplier promptly.
Please note that the delivery list of single-phase inverter differs from the one of three-phase inverter.
Following is the detailed packing list of single-phase inverters:

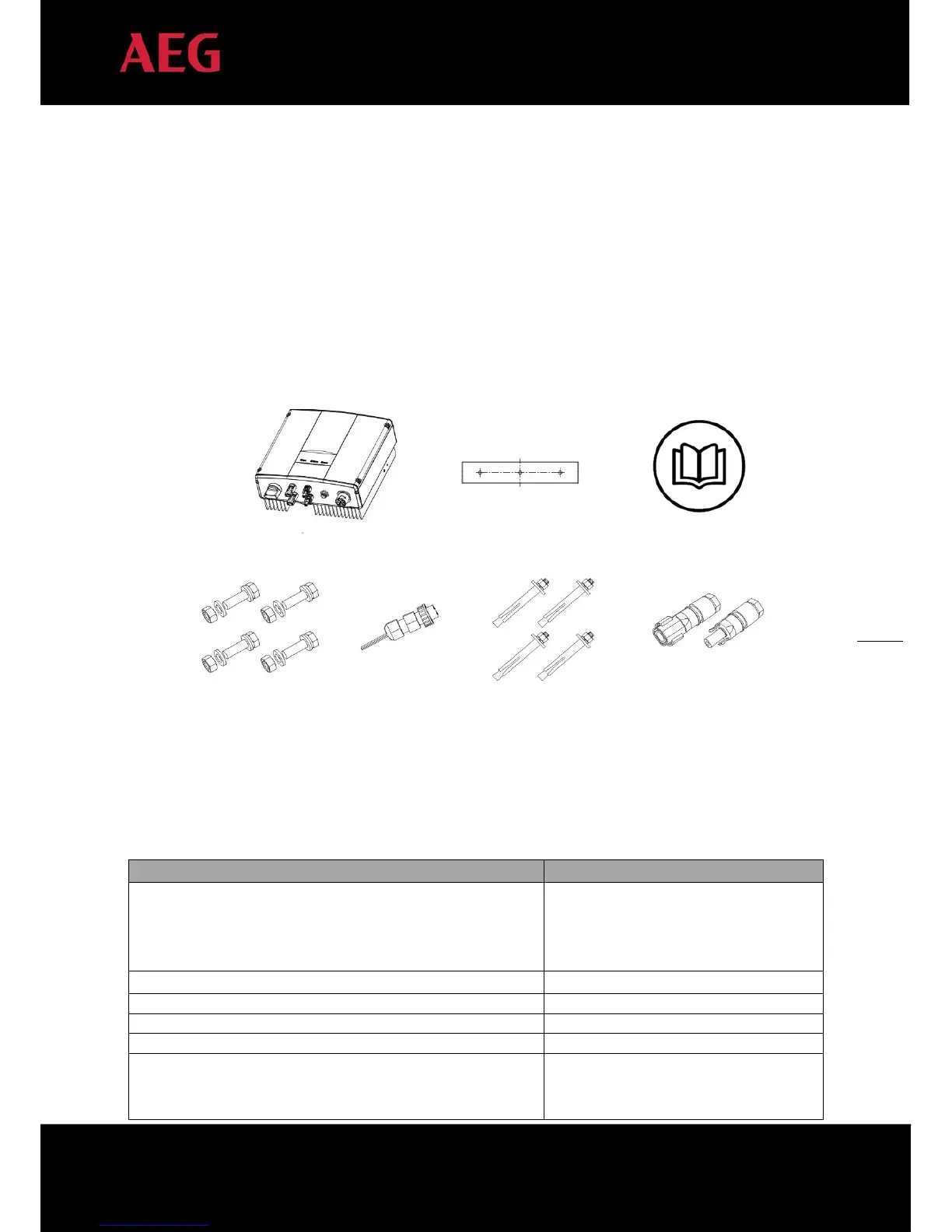

Figure 7: Packing list of single-phase inverter
Detailed packing list of single-phase inverters of AS-IR01 and AS-IR01-2 series:
Item Quantity
Product (AS-IR01-750 / AS-IR01-1000 / AS-IR01-1500 /
AS-IR01-2000/ AS-IR01-3000 / AS-IR01-4000 / AS-IR01-4600 /
AS-IR01-5000 / AS-IR01-3000-2 / AS-IR01-4000-2 / AS-IR01-
4600-2 / AS-IR01-5000-2
1 unit
Installation bracket 1 unit
Operation manual (optional)
1 unit
Hexagon assembling bolt M4*16 2 units
Communication connector 1 unit
Expansion bolts M6*60
AS-IR01-750 / AS-IR01-1000 /
AS-IR01-1500 / AS-IR01-2000/
AS-IR01-3000: 3 units
