AEG AS-IR01 - Monitoring communication; Standard communication; Optional communication; AEG WiFi200 (AEG WiFi Stick) communication module

40
PD201806 AEG GRID-TIED SINGLE-PHASE SOLAR INVERTER V.1-18 EN
40
6. Monitoring communication
This section describes the communication connection of inverter and the inverter’s monitoring system (computers,
mobile devices etc).
The standard communication mode of AEG AS-IR01 and AS-IR01-2 series of grid-tied solar inverters is RS485. The RS485
port can communicate with computers and mobile devices.

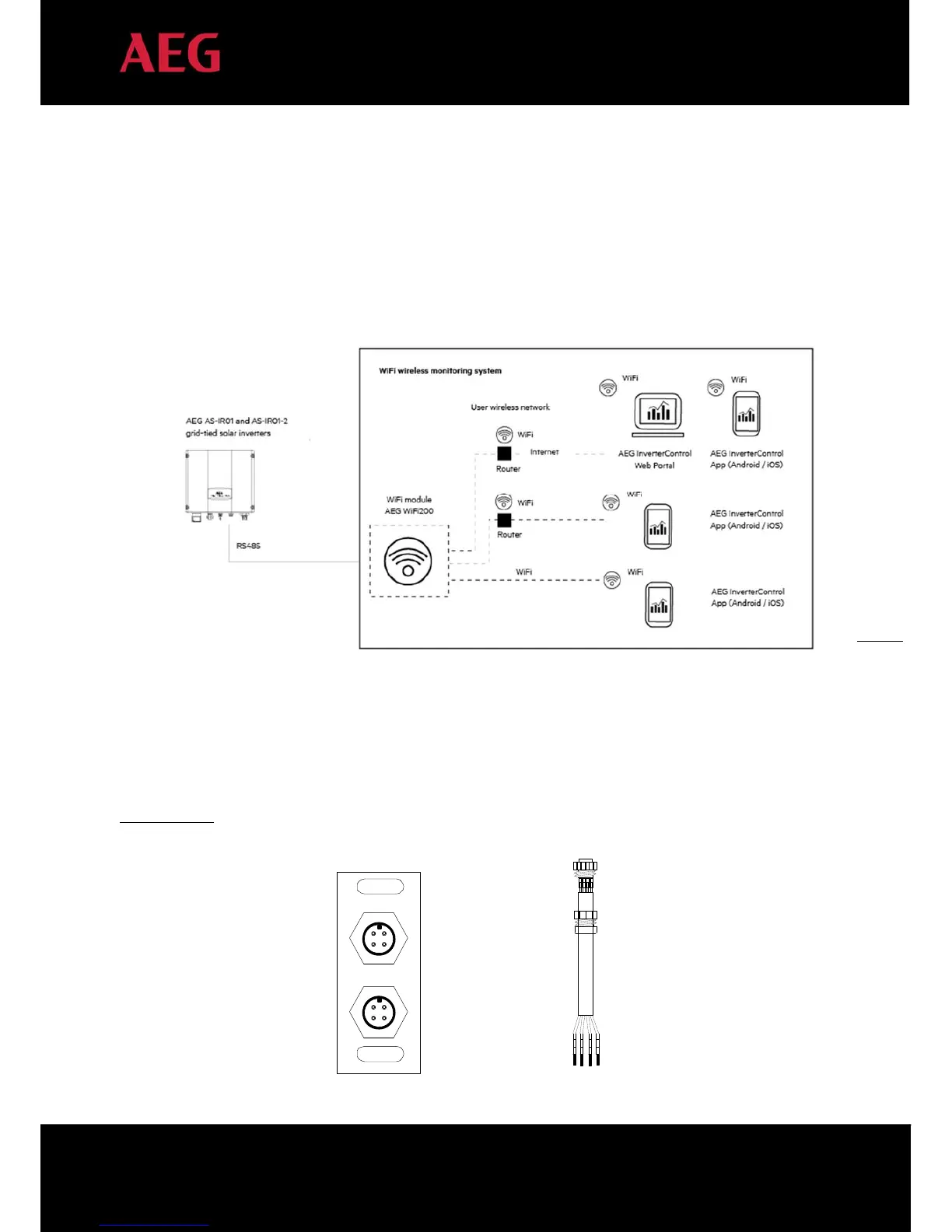

The monitoring system is sketched in figure 31.
Figure 31: Inverter monitoring system
6.1 Standard communication
Pins on inverter
RS485
EXT
32
14
32
1
4
1
+5V
485+ 485- GND
23
4
Figure 32 (left): RS485 pin on inverter (right) Communicator connector
