- 9 / 50 - BN 09 2671/01/01
3.2 INSTALLING AND SECURING THE
RECTIFIER CHARGER
Select an installation site with the following characteristics:
- Ambient temperature and relative humidity as specified in section 3.4.
- Ambient air free from dust and corrosive gases.
- Floor sufficiently flat.
- Floor sufficiently strong to carry the weight of the equipment.

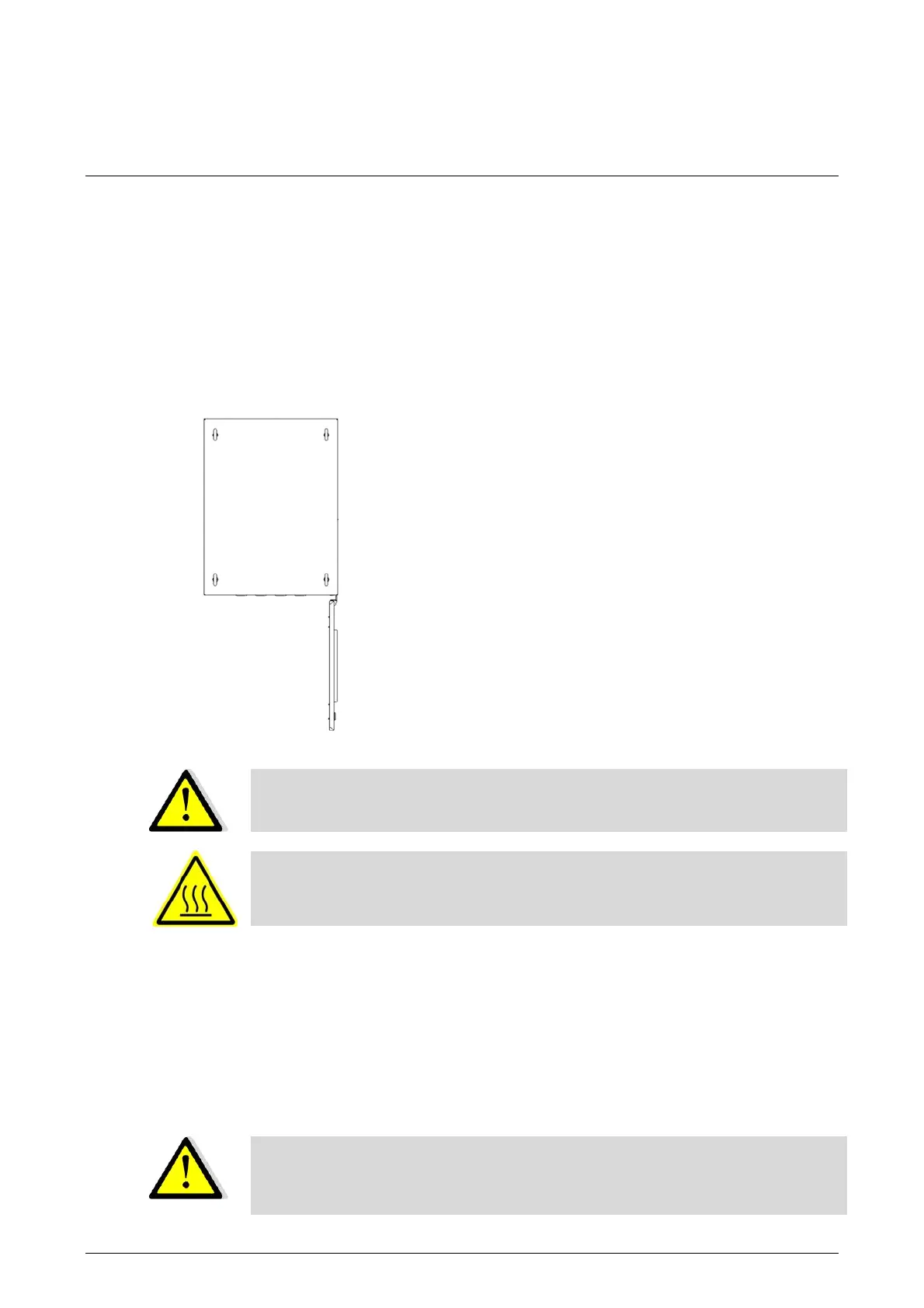

- Sufficient space at the front to open the door (see picture below).
- So that the cabinet will not be distorted, some wedges can be used to ensure the mechanical interface
between the floor and cabinet fixations. This ensures a correct tightening torque.
- For the distances between hole centre, the location and the diameter of the fixing holes, refer to the
customer drawings.
CAUTION:
Securing the cabinets to the floor is recommended.
CAUTION:
Do not touch the metal section near the heating resistor.
Do not touch the rectifier bridge heatsinks.
Installing a single cabinet :
- For the distances between floor fixing hole centers, the location and the diameter of the floor fixing holes, refer
to the product drawings.
- Mark the cabinet position on the floor.
- Perform the drillings (four holes).
- Position the cabinet.
- Fix the cabinet to the floor.
CAUTION: Make sure that a minimum distance of 100mm is available on both sides in
order to have a correct air intake on the side panels ventilation meshes and to ensure a
proper cabinet cooling.
The maximum door opening is 180°.
The minimum door opening in order to
carry out the maintenance tasks is 120°.
