may damage the product.
Contains small parts; keep away from children.
Quick Start.
Determine the power type.
MultiSensor 7 can be a sleeping battery device or a repeater as a USB powered device. Make sure you select your
preferred power type before you start pairing.
Any time you change the input power type (ie. Battery to USB power), you must re-include as your Z-Wave hub will
only understand if it is a sleeping device or a Repeater device upon its first pair into your controller.
For a USB powered installation (acts as a repeater upon initial pair):

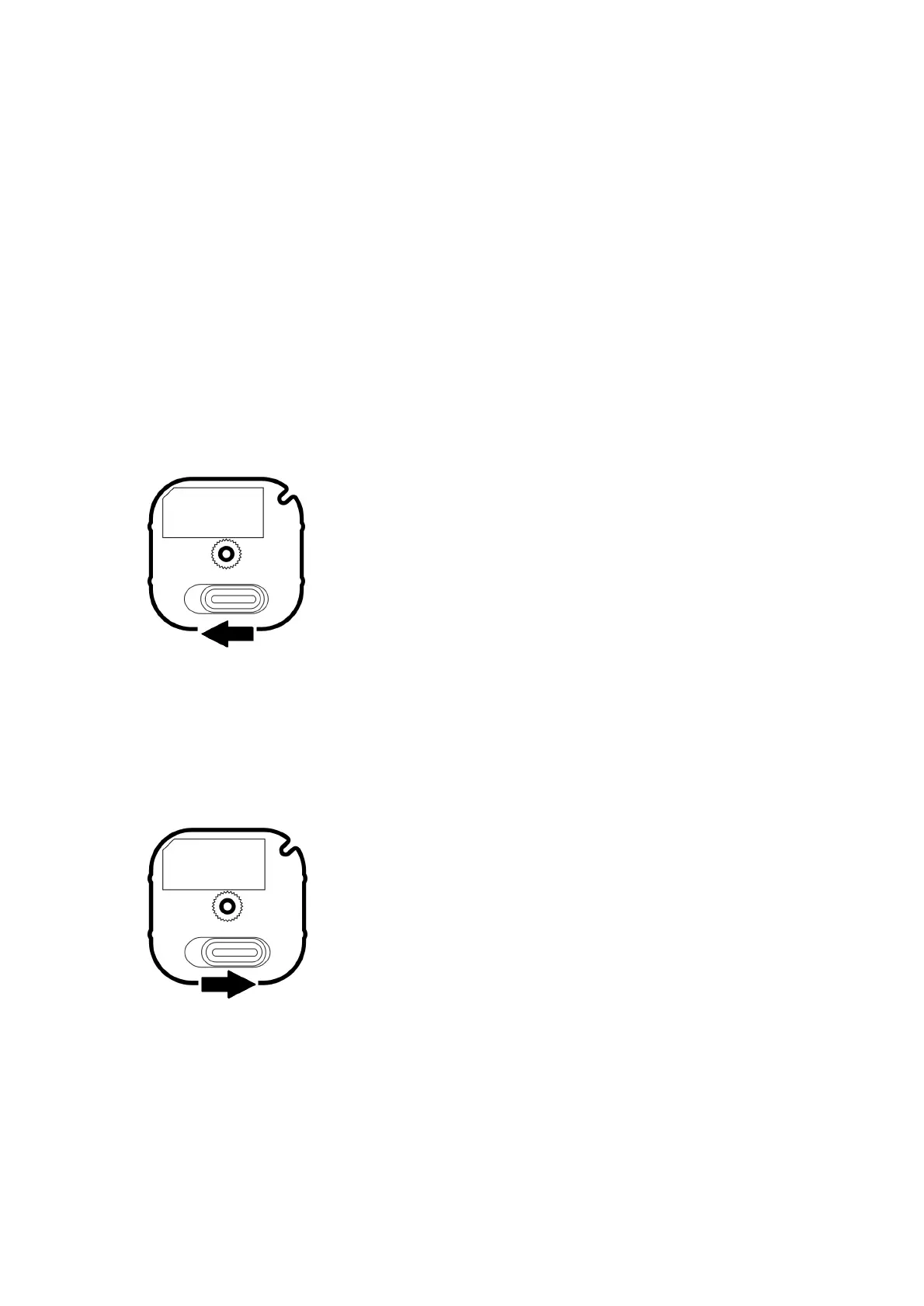

1. Remove the battery cover by sliding the Unlock button LEFT, then pull the cover off.
2. Insert the microUSB of the provided USB cable into your sensor's microUSB port.
3. Insert the larger end of the USB cable into a computer or any 5V adapter which will immediately power your
MultiSensor 7.
4. Make sure to seat the Battery Cover back onto the MultiSensor 7 and lock it in by sliding the Unlock button
RIGHT.
For a battery powered installation (acts as a sleeping device upon initial pair):
1. Remove the battery cover by sliding the Unlock button LEFT, then pull the cover off.
