AERMEC CXA-T Series - Dimensioni • Dimensions; Spazi Tecnici Minimi • Minimum Technical Space

14

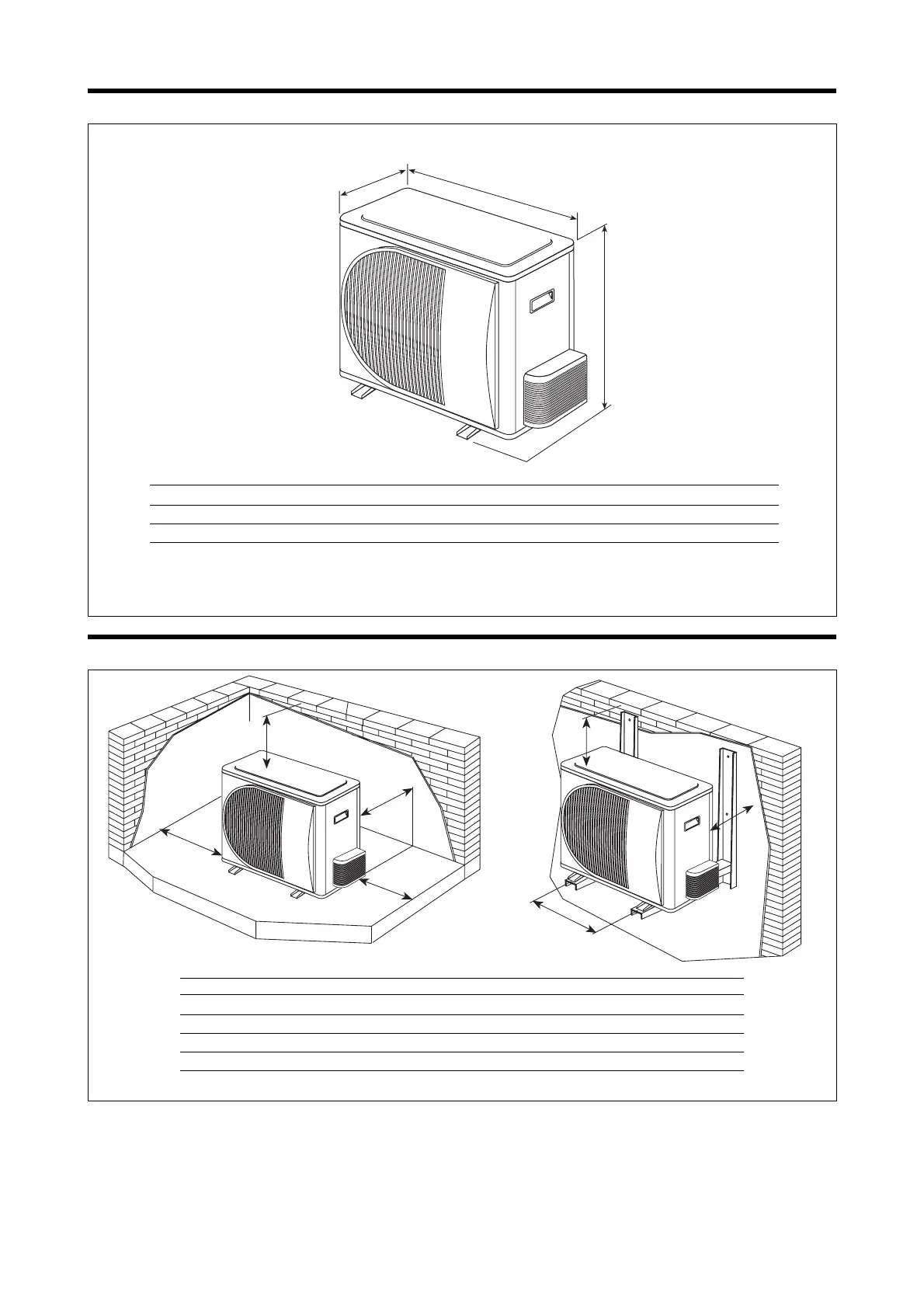

DIMENSIONI • DIMENSIONS [mm]
300
850
680
ABC
CX 1807T / CXA 1807 T 680 850 300
CX 2407T / CXA 2407 T 680 850 300
SPAZI TECNICI MINIMI • MINIMUM TECHNICAL SPACE [mm]
A
B
500
D
500
500
C
Mod. CX / CXA 1807T 2407T
A [mm] 260 260
B [mm] 220 220
C [mm] 600 600
D [mm] 170 170
