AERMEC CXA-T Series - Dimensions • Abmessungen; Espaces Techniques Minimum • Minimum Wandabstände

30

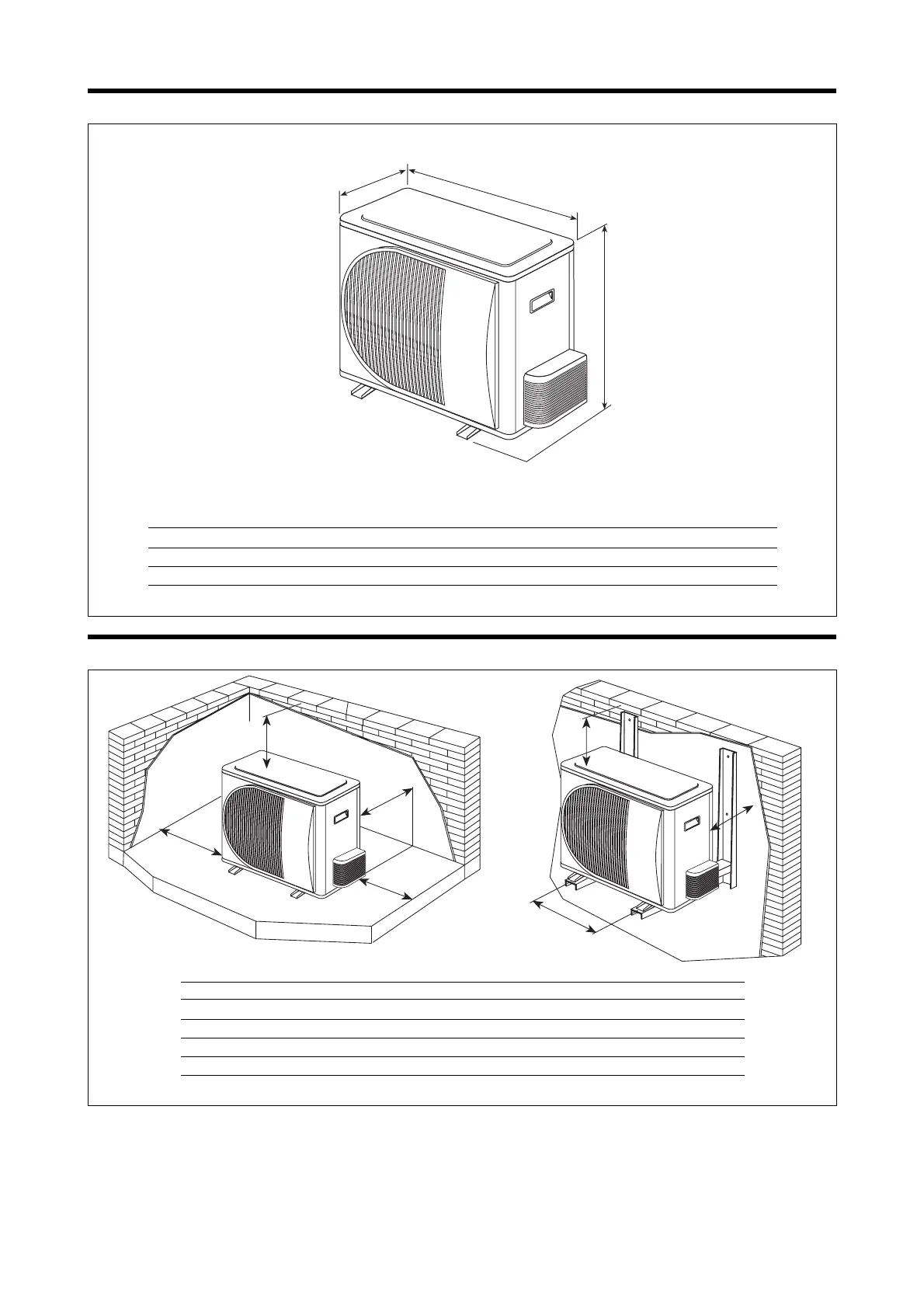

DIMENSIONS • ABMESSUNGEN [mm]
300
850
680
ESPACES TECHNIQUES MINIMUM • MINIMUM WANDABSTÄNDE [mm]
A
B
500
D
500
500
C
ABC
CX 1807T / CXA 1807 T 680 850 300
CX 2407T / CXA 2407 T 680 850 300
Mod. CX / CXA 1807T 2407T
A [mm] 260 260
B [mm] 220 220
C [mm] 600 600
D [mm] 170 170
