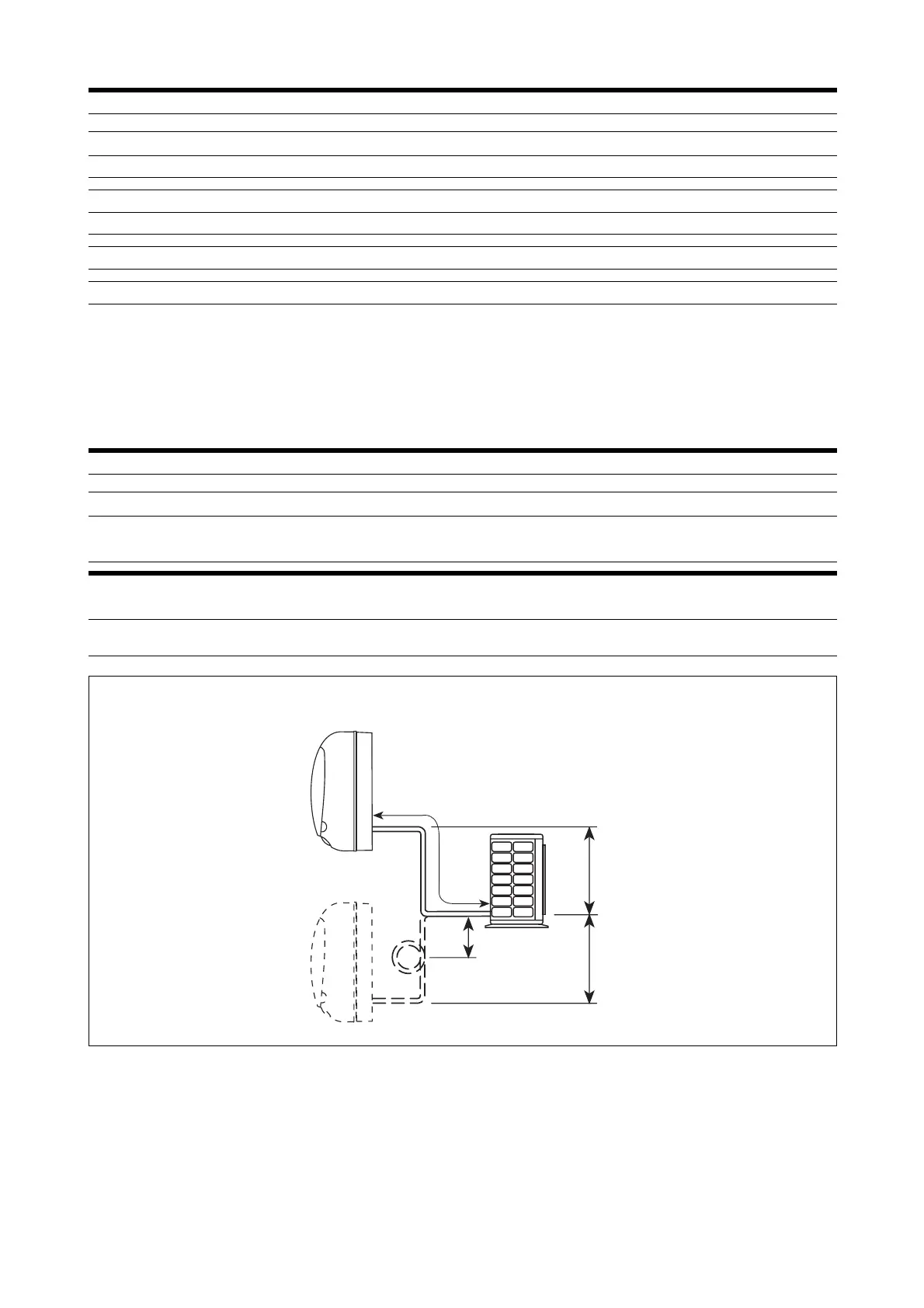

TAB C COLLEGAMENTI FRIGORIFERI • REFRIGERANT CONNECTION
Mod. CX / CXA 1807 T 2407 T
LG Ø [mm] 12,7 x 0,81 (
1
/
2
”) 15,88 x 0,81 (
5
/
8
”)
CS [N.m] 49 ÷59 62 ÷76
LL Ø [mm] 6,35 x 0,71 (
1
/
4
”) 6,35 x 0,71 (
1
/
4
”)
CS [N.m] 15 ÷20 15 ÷20
L max. [m] 15 15
H max. [m] 7 7
LG = linea gas • gas line
LL = linea liquido • liquid line
CS = coppia serraggio raccordi • joint torque
L max. = lunghezza massima linee frigorifere • maximum refrigerant line lenght
H max. = Massimo dislivello tra unità interna ed esterna • Max. difference of level between indoor and outdoor units
TAB D REINTEGRO CARICA REFRIGERANTE • REFRIGERANT RECHARGE
Mod. CX / CXA 1807 T 2407 T
Reintegro carica refr. • Ref. charge 20 [g/m] 20 [g/m]
Per lunghezza linee superiore a
10 - 15 [m] 10 -15 [m]
For line lenght longer than
TAB E TARATURA DISPOSITIVO BASSA TEMPERATURA
LOW AMBIENT TEMPERATURE DEVICE SETTING
DCPX
16 ± 2 [kg/cm
2
] 18 [kg/cm
2
] = 220 V 14 [kg/cm
2
] = 0 V
1.570 ± 196 [kPa] 1.766 [kPa] = 220 V 1373 [kPa] = 0 V
9
Max.
+7 m.
Max.
-7 m.
Max. 15 m.
3 m.
