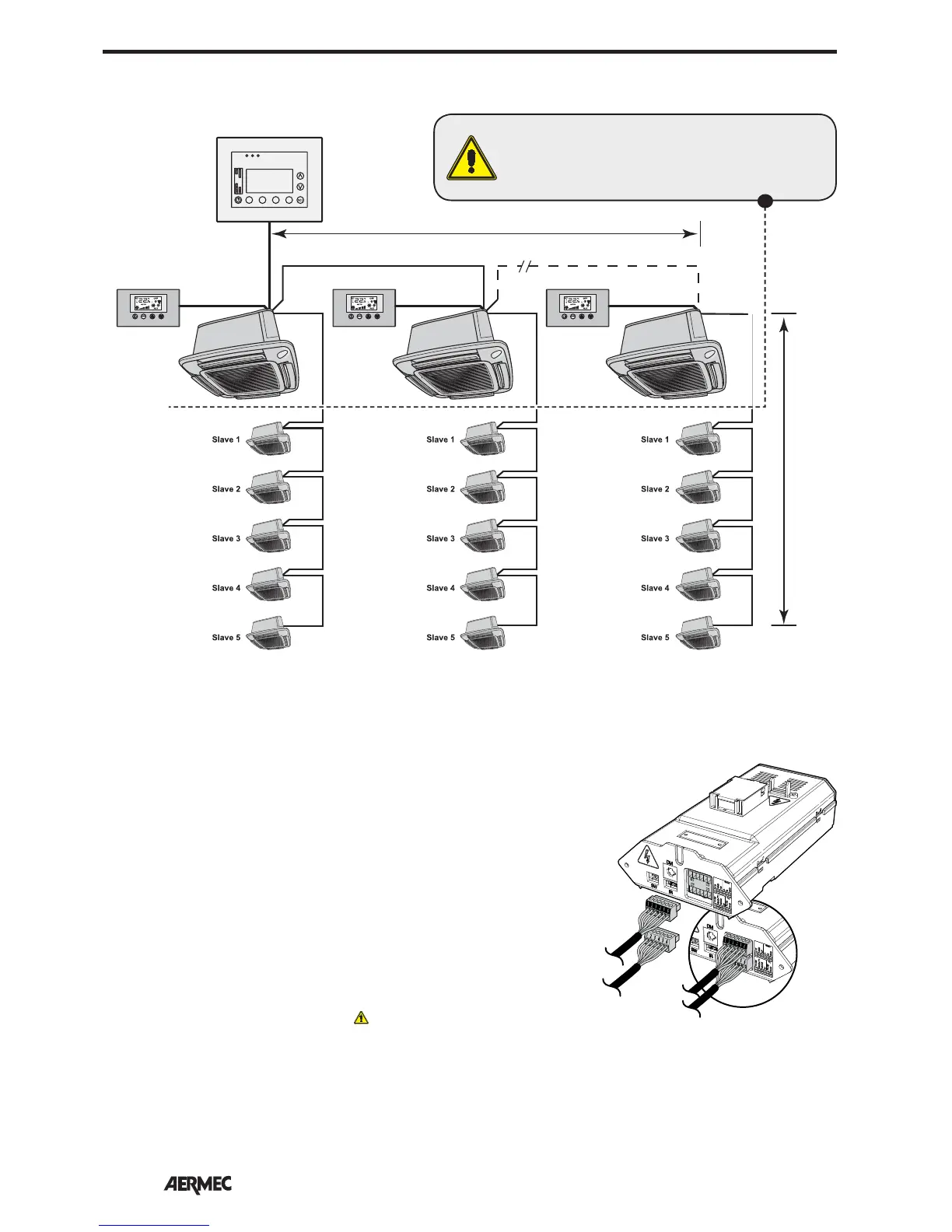

IFCLTY 1112 - 4528511_04
MASTER 1
FCL+GLL_N
RS485
TTL
TTL
TTL
RS485
RS485
VMF-E5B
VMF-E5N
MASTER 2
FCL+GLL_N
MASTER 64
FCL+GLL_N
TTL MAX 30m
VMF-E4 / VMF-E4D
RS485 MAX 1000m
VMF-E4 / VMF-E4DVMF-E4 / VMF-E4D
WARNING: the VMF-E5B / VMF-E5N panel allows the management
of the individual masters; The slave units connected to each master
cannot be individually managed from the VMF-E5B / VMF-E5N
panel, but they acquire the settings of the master to which they
are connected.
• Maximum number of MASTER fancoils = 64
• Maximum number of SLAVE fancoils that can be connected to each MASTER = 5
VMF-E5B / E5N SYSTEM'S MAIN SUPERVISION INTERFACE
Recessed supervisor control panel,
available in two colours:
• VMF-E5B white
• VMF-E5N black.
Graphic back-lit LCD display and
capacitive keyboard.
VMF-E5B / VMF-E5N allows for the cen-
tralised control/operation of a complete
hydronic system consisting of:
• Fan coils: up to 64 fan coil zones com-
prising 1 master + maximum 5 slaves.
• Chiller/heat pump equipped with
controls Modu_Control, GR3 and
pCO2 / PCO ³ (required accessory RS
485 interface respectively MODU-
485A, AER485, AER485P2 / AER485P1)
• Circulators: maximum of 12 configura-
ble zone circulators.
• Boiler: boiler consensus management
for hot water production.
• Heat recovery units: consents up to 3
per programmable recovery units based
on the timing and/or by measuring the
air quality obtained with the VMF-VOC
accessory.
• Domestic hot water module: complete
management of the domestic hot water
production through the control of:
- Diverting valve/circulator
- Supplementary heater
- Accumulation temperature probe
- Anti-legionella circuit
The main feature is the possibility of
managing the plant through dedicated
algorithms to achieve a comfortable
environment with energy saving in
mind.
See the accessories manual for
complete information on its features.
