AIM OF THE UNIT
The fan coil is a room air treatment terminal unit for both winter and summer operation.
FCL version
Cassette-type fan coil for installation in suspended ceilings.
DESCRIPTION OF THE UNIT
AVAILABLE SIZES
The Cassette fan coils of the FCL range are available in two basic sizes, called "Modules"
For 2-pipe systems
7 sizes
FCL 32 (Module 600)
FCL 36 (Module 600)
FCL 42 (Module 600)
FCL 62 (Module 600)
FCL 72 (Module 600)
FCL 82 (Module 840)
FCL 102 (Module 840)
FCL 122 (Module 840)
For 4-pipe systems
7 sizes
FCL 34 (Module 600)
FCL 38 (Module 600)
FCL 44 (Module 600)
FCL 64 (Module 600)
FCL 84 (Module 840)
FCL 104 (Module 840)
FCL 124 (Module 840)
• Standard FCL version, with standard
internal 3-way valve fi tted with fast con-
nection actuator and visual position sig-
nalling.
• FCL_V2 version, with standard internal
2-way valve fi tted with fast connection
actuator and visual position signalling,
suitable for systems with a variable wa-
ter fl ow rate.
• FCL_VL version, without an internal
valve.
VERSIONS
The cassette fan coils are available in
three versions, to satisfy all system re-
quirements.
The sizes, performance levels and outer
dimensions are the same as those for the
standard FCL version.
In this manual, versions FCL_VL and
FCL_V2 will only be referred to when
there are differences compared with
the standard FCL version; otherwise
they will simply be called FCL. Versions
FCL_VL and FCL_V2 are available upon
request.
The same FCL unit can be combined
with several grille accessories to allow
different operation modes.
Detailed information is given in the
manuals supplied with the acces-
sories; here we merely wish to
highlight the differences between
the various delivery and suction
grille units.

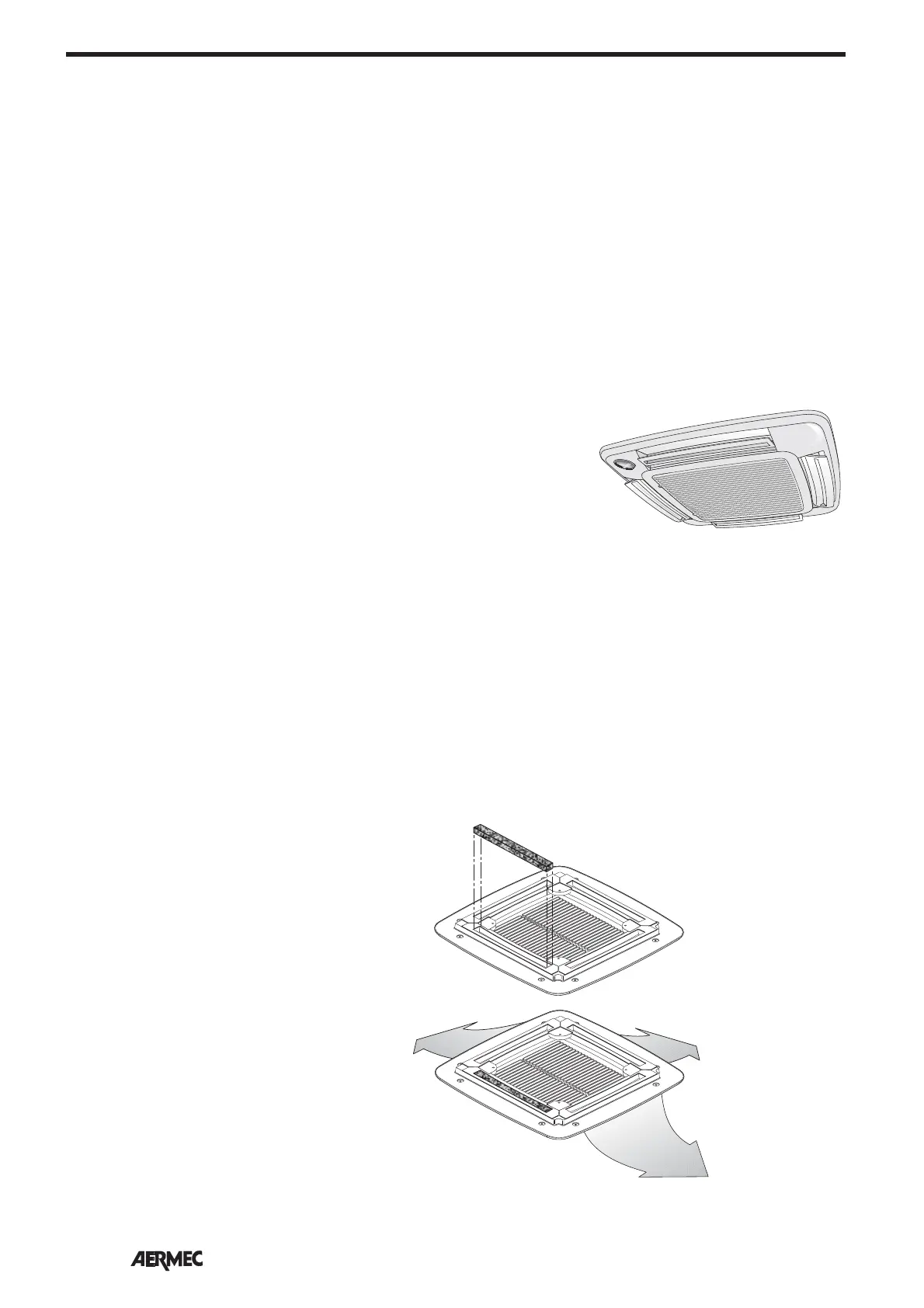

- GLL10 / GLL20
If you intend to connect an electronic
control panel, check the settings
of the dip switches inside the panel
correspond to the system requirements;
if necessary, modify the settings
as indicated in the control panel
instructions.
In units with 4-speed motors, select
the 3 fan speeds most suitable for the
system.
- GLL10M / GLL10R / GLL20R
Check the settings of the dip switches
inside the electric box correspond to
the system requirements; if necessary,
modify the settings.
In units with 4-speed motors, select
the 3 fan speeds most suitable for the
system.
