TECHNICAL DATA
FCL 4-pipe versions FCL 34 38 44 64 84 104 124
Heating
Heating capacity 70°C
Speed 4 W - - 3070 3800 8500 10000 12500
Speed 3 W 2600 2600 2730 3380 7150 8250 10400
Speed 2 W 2190 2190 2290 2990 6400 7300 9300
Speed 1 W 1950 1950 1960 2640 5300 5900 7050
Water fl ow rate
Speed 4 l/h - - 264 327 731 860 1075
Speed 3 l/h 224 224 235 291 615 710 894
Speed 2 l/h 188 188 197 257 550 628 800
Speed 1 l/h 168 168 169 227 456 507 606
Pressure drop (VL)
Speed 4 kPa - - 14 21 14 19 29
Speed 3 kPa 11 11 12 17 10 14 21
Speed 2 kPa 8 8 8 14 9 11 17
Speed 1 kPa 6 6 6 11 6 7 10
Cooling
Cooling capacity
Speed 4 W - - 3650 4610 6000 7200 8800
Speed 3 W 1900 2770 3000 3640 4790 5760 7270
Speed 2 W 1470 2080 2340 2970 4050 4915 6220
Speed 1 W 1160 1650 1810 2460 2800 3500 4570
Sensible Cooling
capacity
Speed 4 W - - 2920 3530 4200 5300 6770
Speed 3 W 1520 2240 2180 2600 3300 4180 5520
Speed 2 W 1250 1660 1680 2100 2770 3530 4670
Speed 1 W 990 1300 1270 1720 1900 2480 3370
Water fl ow rate
Speed 4 l/h - - 628 793 1032 1238 1514
Speed 3 l/h 327 476 516 626 824 991 1250
Speed 2 l/h 253 358 402 511 697 845 1070
Speed 1 l/h 200 284 311 423 482 602 786
Pressure drop (VL)
Speed 4 kPa - - 22 31 25 26 38
Speed 3 kPa 10 13 15 21 17 18 27
Speed 2 kPa 7 8 10 14 12 13 20
Speed 1 kPa 4 5 6 10 6 7 12
Common data
Fans no.1111111
Air fl ow rate
Speed 4
cu.m/h - - 700 880 1100 1350 1750
Speed 3
cu.m/h 600 600 530 660 830 1010 1350
Speed 2
cu.m/h 410 410 360 500 680 830 1100
Speed 1
cu.m/h 300 300 260 380 460 560 750
Sound power
Speed 4 dB(A) - - 53 61 50 54 60
Speed 3 dB(A) 46 46 46 54 45 48 54
Speed 2 dB(A) 38 38 38 47 43 45 50
Speed 1 dB(A) 35 35 35 41 39 40 44
 Sound pressure
Speed 4 dB(A) - - 44 52 41 45 51
Speed 3 dB(A) 37 37 37 45 36 39 45
Speed 2 dB(A) 29 29 29 38 34 36 41
Speed 1 dB(A) 26 26 26 32 30 31 35
Input power
Speed 4 W - - 75 83 150 155 175
Speed 3 W 45 45 47 53 105 110 125
Speed 2 W 31 31 32 37 80 80 105
Speed 1 W 21 21 22 26 45 50 55
Input current (max speed) A 0.22 0.22 0.33 0.37 0,70 0,69 0,75
Peak current A 0.66 0.66 0.99 1.11 2,10 2,07 2,25

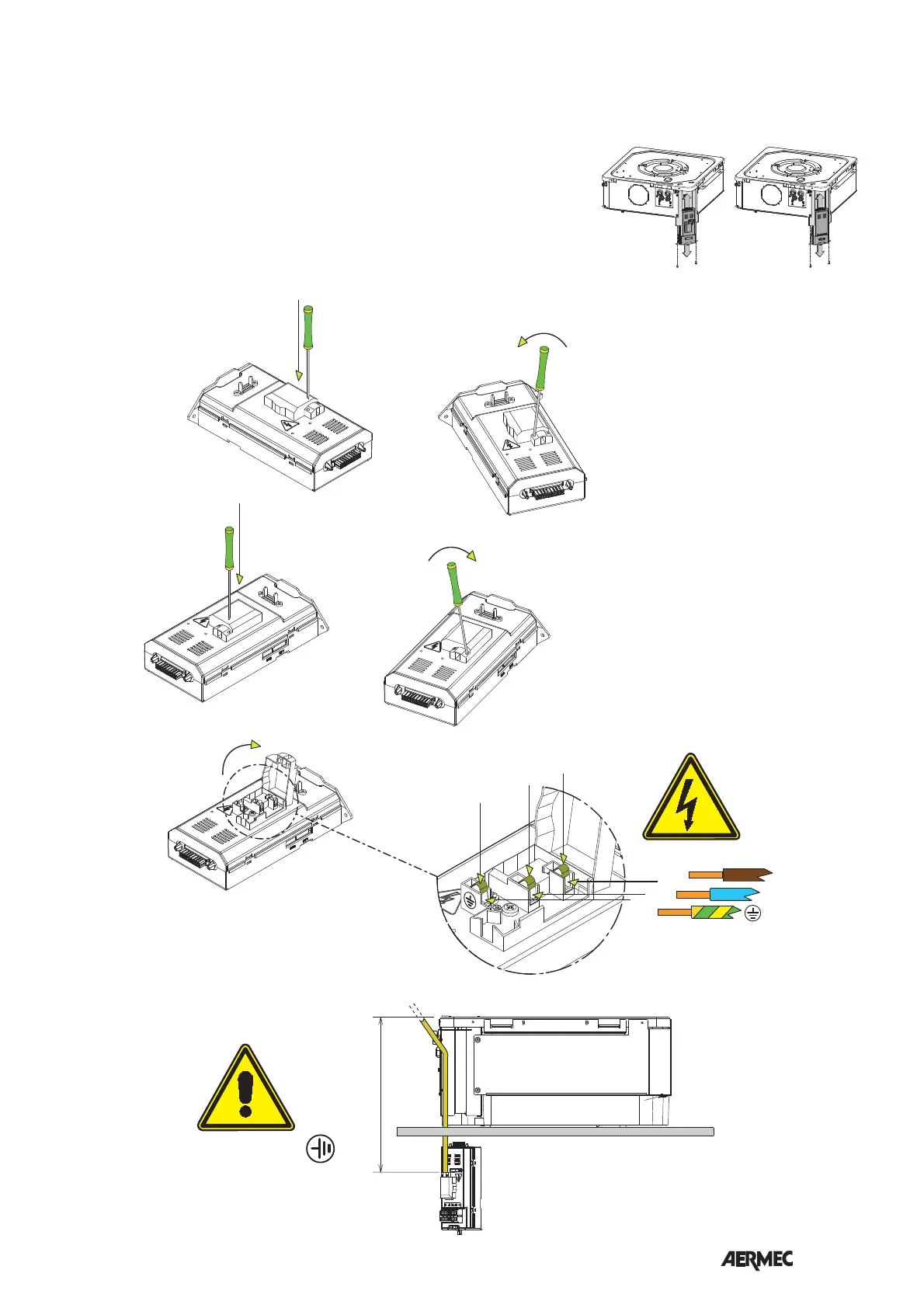

Power supply V / Hz 230 ~ 50Hz
Maximum protection level IP 20 20 20 20 20 20 20
Heat exchanger water content L 1.2 1.5 1.5 2.1 3 4.5 4.5
Water connections (cold circuit) Ø gas 3/4” 3/4” 3/4” 3/4” 3/4” 3/4” 3/4”
Water connections (hot circuit) Ø gas 1/2” 1/2” 1/2” 1/2” 1/2” 1/2” 1/2”
Kvs (3-way valve, standard version) 2.5 2.5 2.5 2.5 4 4 4
Kvs (2-way valve, V2 version) 2.5 2.5 2.5 2.5 2.5 2.5 2.5
Performance values refer to the following conditions:
 Sound pressure measured in
semi-reverberating chamber, 100m
3
,
and with reverberation time Tr = 0.5s
Cooling:
- room air temperature 27°C D.B. ; 19°C W.B.
- inlet water temperature 7°C ; maximum speed
- t water 5°C
Heating:
room air temperature 20°C
• water inlet temperature: 70°C ; t water 10°C
• water inlet temperature: 50°C ; maximum speed
- water flow rate as for cooling
= Performance certified EUROVENT 6/3 - Acoustic tests certified EUROVENT 8/2 (ISO 3741/2001)
