AERMEC GLL10R - Electric Connections

22
English
AGLLRIJ 0907 - 4528560_03
ELECTRIC CONNECTIONS
The unit must be connected directly
to an electrical outlet or to an
independent circuit.
The FCL cassette fan coils must be
powered with 230V ~ 50Hz current
and have an earth connection. The
line voltage must remain within the
tolerance of ±10% with respect to the
nominal value.
In order to protect the unit against short
circuits, mount a max. 2A 250V (IG)
magnet circuit breaker omnipolar
switch on the power supply line with
a minimum contact opening distance
of 3 mm.
The electrical power supply cable must
be of the H07 V-K or N07 V-K type
with 450/750V insulation if inside
a tube or raceway. Use cables with
double H5VV-F type insulation for
visible cable installation.

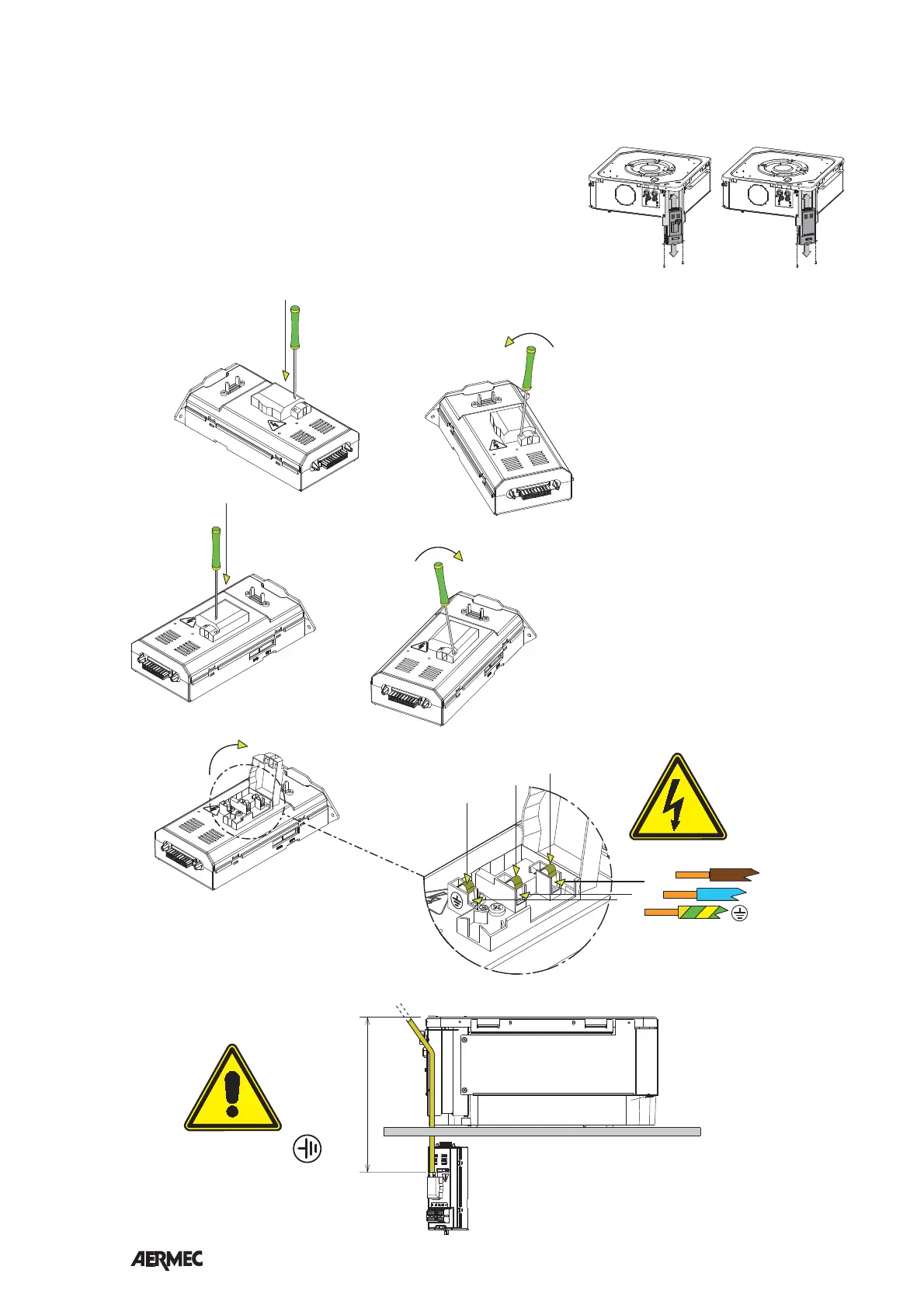

For the connections, refer to the fan coil
wiring diagrams.
L
N
L
N
2
2
2
1
1
1
C
D
B
B-1
A
A-1
- L - N
> 650mm
230VAC
230VAC
