AERMEC GLL10R - Dip Switch Settings; Some Examples

23
English
AGLLRIJ 0907 - 4528560_03
SW 2
Dip 1 (Default OFF)
Factory settings.
Dip 2 (Default OFF)
Factory settings.
Dip 3 (Default OFF)
Factory settings.
Dip 4 (Default OFF)
Factory settings.
Dip 5 (Default OFF)
Factory settings.
Dip 6 (Default OFF)
Factory settings.
Dip 7 (Default OFF)
Factory settings.
Dip 8 (Default ON)
Factory settings.
SW 1
Dip 1 (Default OFF)
Resistance control:
- functioning in integration mode, OFF
- functioning in replacement mode, ON
Dip 2 (Default OFF)
Presence of the resistance:
- with resistance, OFF
- with resistance, ON
Dip 3 (Default OFF)
Type of plant:
- 2 pipes, OFF
- 4 pipes, ON
Dip 4 (Default OFF)
Factory settings.
Dip 5 (Default OFF)
Factory settings.
Dip 6 (Default OFF)
- continuous ventilation, OFF
- thermostat ventilation heating mode, ON
Dip 7 (Default ON)
Factory settings, ON
Dip 8 (Default ON)
Factory settings, ON
emove voltage to the unit.
To be carried out in the installation phase by specialised staff.
SW2 contains settings that must not be modified (the default settings are given in the table).
By acting on the Dip-Switches of the SW1 the following functionalities are obtained:

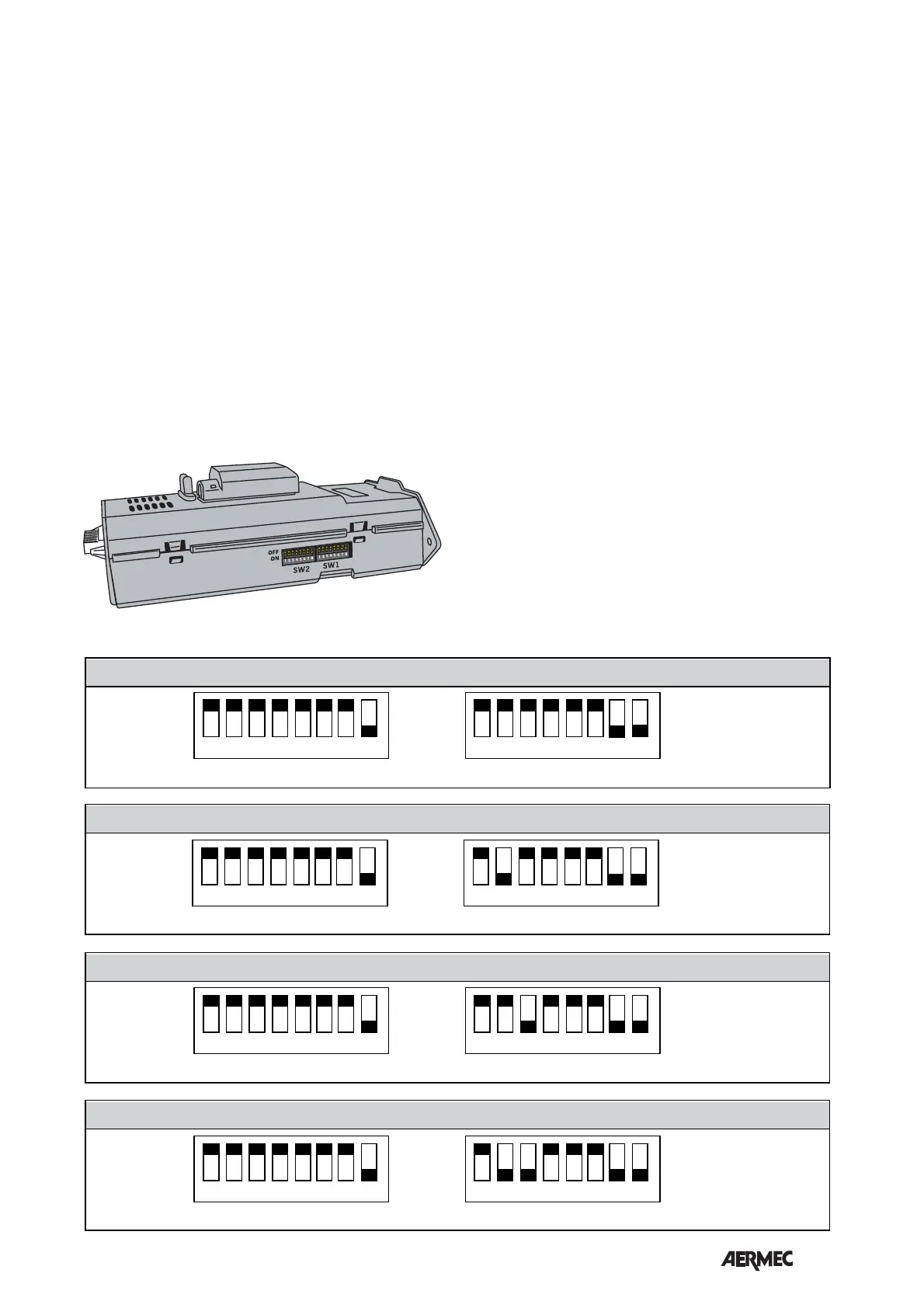

DIP-SWITCH SETTINGS
OFF
ON
SW2
1 2 3 4 5 6 7 8
OFF
ON
SW1
1 2 3 4 5 6 7 8
OFF
ON
SW2
1 2 3 4 5 6 7 8
OFF
ON
SW1
1 2 3 4 5 6 7 8
OFF
ON
SW2
1 2 3 4 5 6 7 8
OFF
ON
SW1
1 2 3 4 5 6 7 8
OFF
ON
SW2
1 2 3 4 5 6 7 8
OFF
ON
SW1
1 2 3 4 5 6 7 8
SOME EXAMPLES:
FCL 2 pipes (default)
FCL 2 pipes + Resistance (only for models with Module 600)
FCL 4 pipes
FCL 4 pipes + Resistance (only for models with Module 600)
