MAIN COMPONENTS
DESCRIPTION
The FCL cassette-type fan coil is an
air treatment unit. The FCL combines
advanced technological and function-
al characteristics, making it the ideal
climate control unit for every type of
room. The supply of climate-controlled
air is distributed throughout the room.
FCL generates heat if included in
a heating system with boiler or heat
pump, but may also be used in the
summer as an air conditioner if the
heating system has a water chiller.
The fan coils are designed for 2- and
4-pipe systems (in the versions with hot
water coil).
The unit is installed in a suspended ceil-
ing with the possibility to send con-
ditioned air to adjacent rooms and
introduce external air regardless of unit
ventilation.
The FCL units are available in two basic
sizes, called:
"Module 600" for units integrable in
standard 600x600mm suspended ceil-
ing panelling
"Module 840" for the more powerful ver-
sions (to be housed in a compartment
measuring 840x840mm).
BASE
The load-bearing base is made of gal-
vanised sheet steel. The following
are fixed to the base: fixing brackets,
coils, motor and fan, condensate dis-
charge pump, attachment plate, control
board unit and condensate drip tray.
By means of the flanges (accessories),
it allows the channels (for renewing
ambient air and/or delivery to an adja-
cent room) to be joined to the sides.
The units with "Module 600" consist of a
reinforced load-bearing structure with a
side band in galvanised sheet steel and
thermal insulation provided by injec-
tion-moulded polystyrene foam ele-
ments that reduce noise and convey air.
The units with "Module 840" consist of
a structure made entirely of galvanised

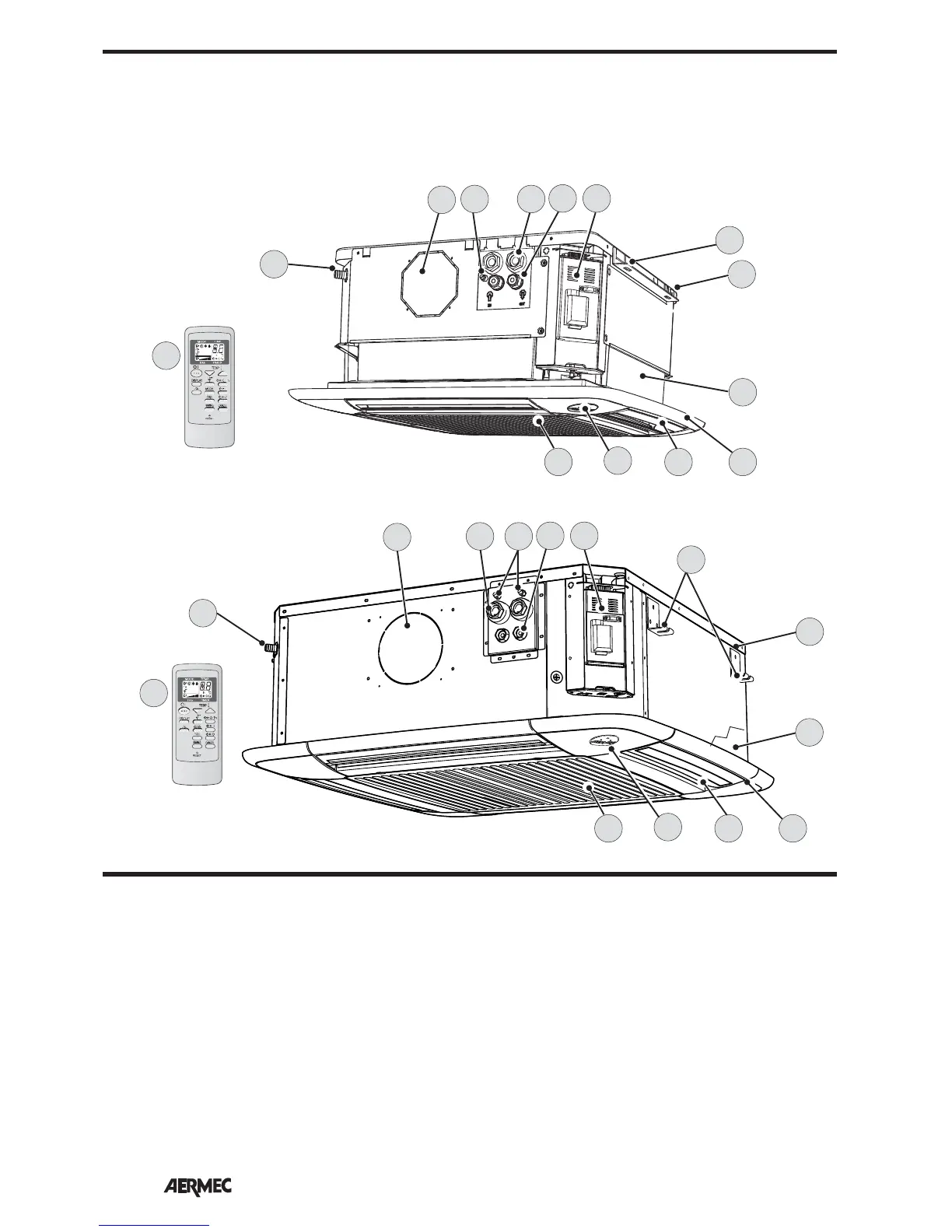

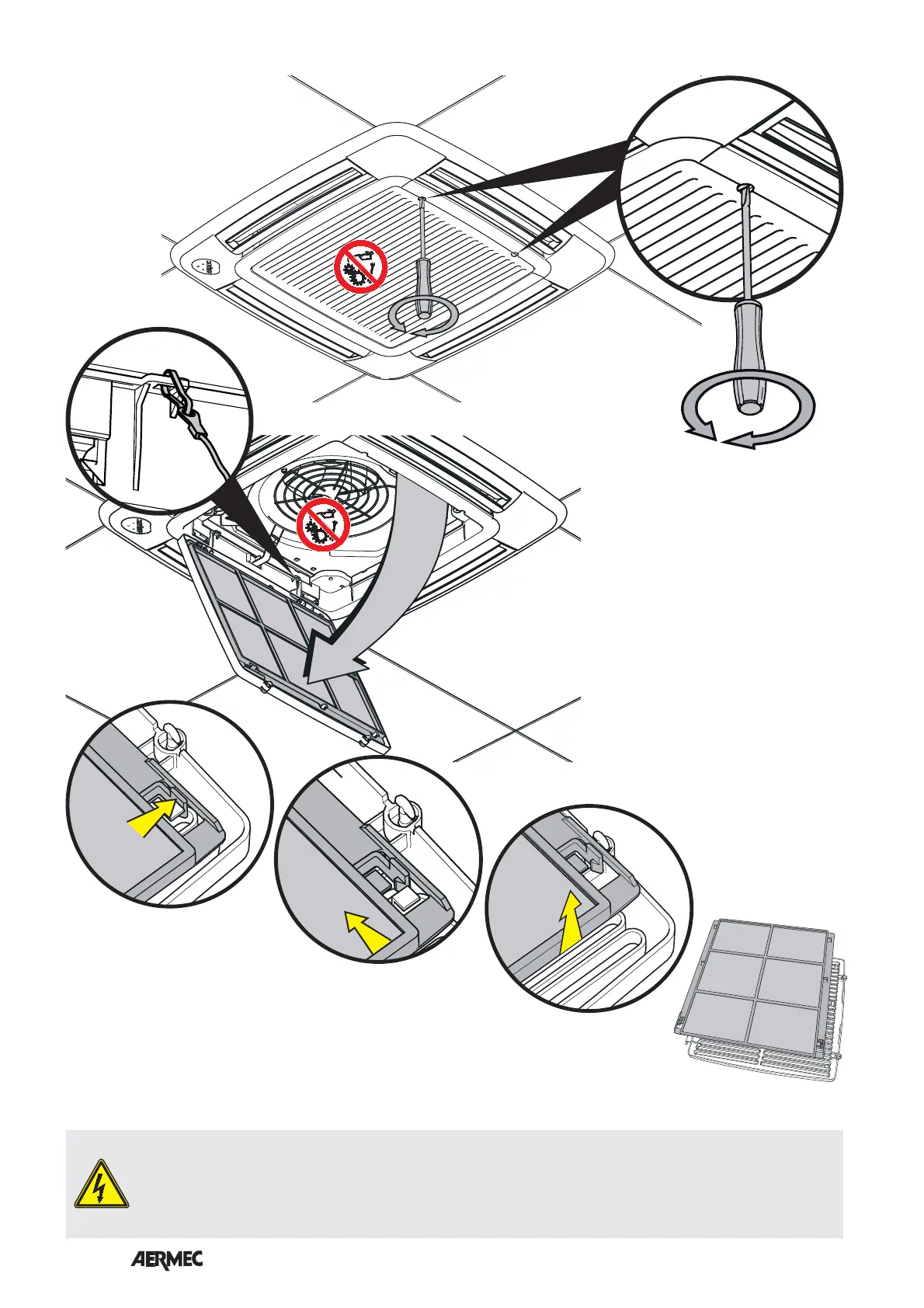

1 Grille with air filter
2 Receiver (GLL_M; GLL_R)
3 Air delivery deflector
4 Grille frame
5
Tray
6 Base unit
7 Fastening brackets
8 Electrical box
9
Water connections (only for 4 pipes)
10
Water connections (2 pipes)
11 Air drain valve
12 Push-out, coupling for air delivery in
an adjacent room
13 Condensate drain
14 Remote control (GLL_M; GLL_R)
FCL (Module 600)
GLL 10M
GLL 10R
31 4
5
6
8
11 10
7
13
14
2
12
9
FCL (Module 840)
GLL 20R
31 4
8
10 11
13
14
2
12
9
7
6
5
