7.4 VIEWING THE ERROR LOG ERROR LOG
These pages display the alarm log for the unit. After accessing the "Error" function,
you can browse any pages using the buttons on the left and right sides of the win-
dow.

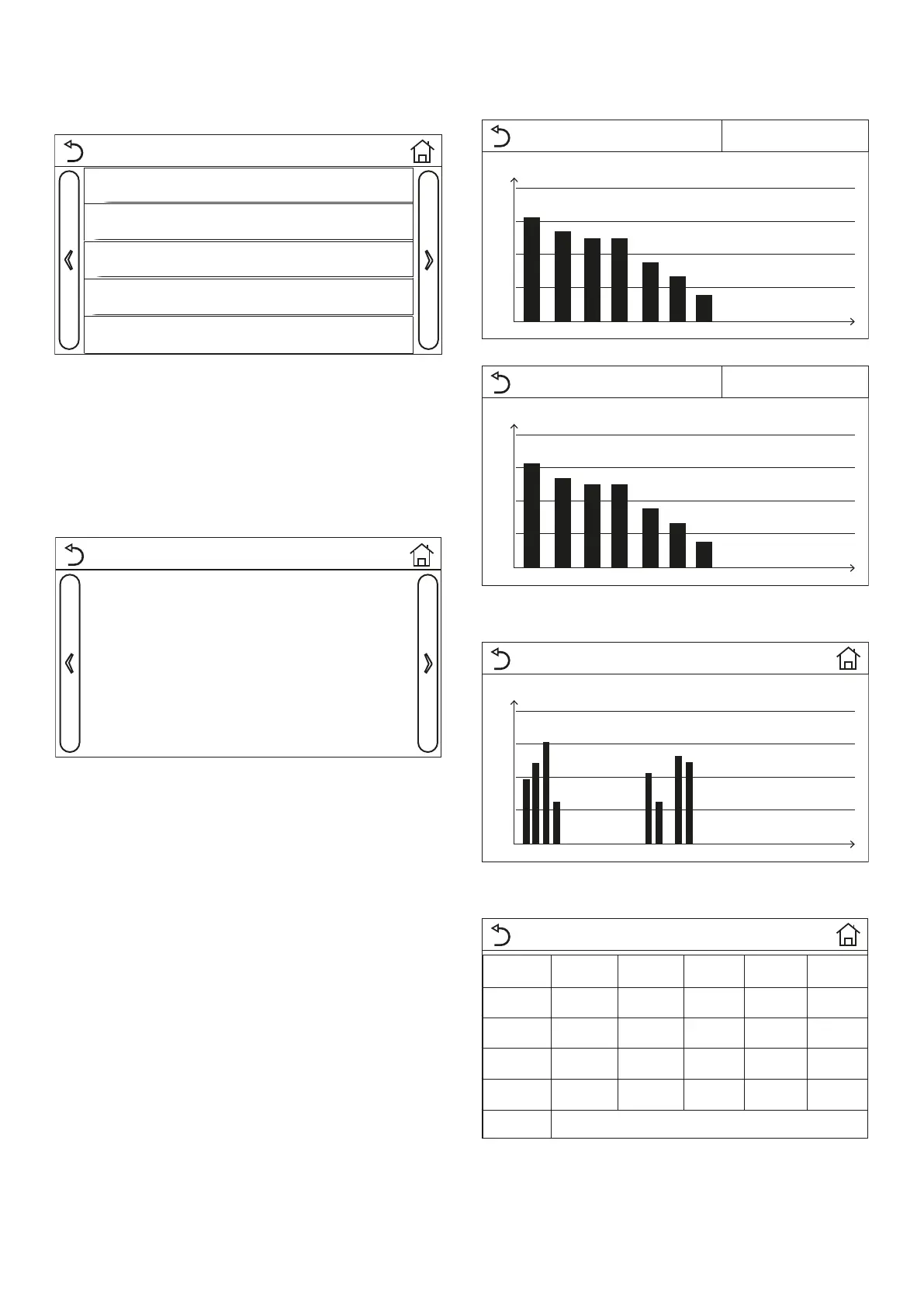

Error log (1)
Num. Error Time
 Note:
1. There may be several pages, depending on the number of errors; the log lists
the last 20 errors;
2. When error log exceeds 20, the latest will supersede the earliest.
7.5 VIEWING SOFTWARE INFORMATION VERSION
At the “VIEW” page, by touching “Version”, the control panel will go to the version
view page, where it is able to view both the program version and protocol version.
Version view
Protocol version: Vxx
Program version: Vxx
7.6 POWER CONSUMPTION
Monthly and yearly power consumption (based on the system date of the control
panel) can be recorded and displayed through a bar chart.
2023
10,000
7,500
2,500
5000
0
Last year
Note: Unit(kWh), Statistic data just for reference.
Total P.C.: 39732
Jan. Feb. Mar. Apr. May.
Jun. Jul. Aug. Sep. Oct. Nov. Dec.
2022
10,000
7,500
2,500
5000
0
This year
Note: Unit(kWh), Statistic data just for reference.
Total P.C.: 39732
Jan. Feb. Mar. Apr. May.
Jun. Jul. Aug. Sep. Oct. Nov. Dec.
Click the current month and then go to the daily power consumpt ion page, as
shown in the gure below:
2023-05
600
450
150
300
0
2 4 6 8 10
12 14 16 18 20 22 24 26 28 30
Note: Unit(kWh), Statistic data just for reference.
Total P.C.: 1813
Click the middle of some day and then go to the power consumpti on value page,
as shown in the gure below:
2023-05
0.0
1 2 3 4 5 6
8 9 10 11 127
13 14 15 16 17 18
20 21 22 23 2419
25 26 27 28 29 30
31
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
56.7
0.0
0.0
0.0
0.0
84.9
0.0
0.0
 Note: as the power consumption statistics is calculated and may dier with the ac-
tual, therefore it is just for reference.
