AERMEC MVA - Serial Connection

14
L NXT1
XT2
L NXT1
XT2
L NXT1
XT2
L
N
120Ω
IL IL IL
D1 D2 H1 H2 D1 D2 H1 H2 D1 D2 H1 H2
Indoor unit (1)
Wired controller Wired controller Wired controller
Indoor unit (2) Indoor unit (n)
Terminating
resistor
Outdoor
unit
Key:
IG: switch (protection line);
IL: circuit breaker (protection unit);
XT1: terminal power (220-240V ~ 50Hz);
XT2: terminal for serial connection;
D1 / D2: terminals for serial communication;
H1 / H2: terminals for connecting the control panel;

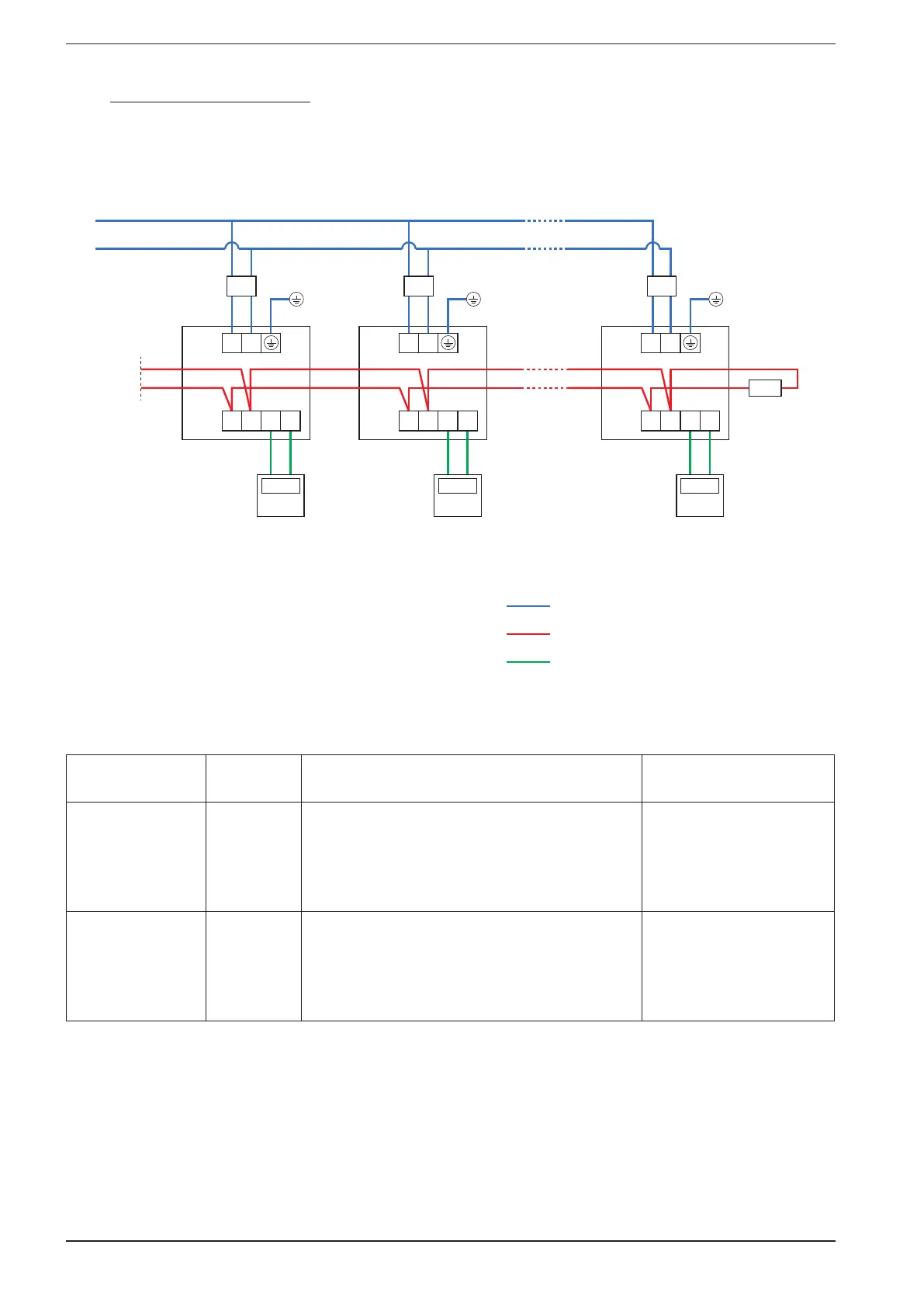

9.2. SERIAL CONNECTION
The units of a multi-split system, communicate with
one another in such a way as to coordinate the
operating parameters necessary for the proper
operation of the entire system; to enable this com-
munication is necessary to create a point-to-point,
the outdoor unit to each unit’s internal system (as
shown in the diagram); please note that this serial
line must end with a “termination resistor”, which
will be connected to the final unit of the system
(such resistance is supplied with the outdoor unit).
Connection type Max lenght m Note
Section minimum
recommended
Wired pannel
connection
250
NOTE: For more information about length limitations,
and about the kinds of installation, cable connection,
refer to the manual for the panel flush;
• The cable should be a two-pole isolated twisted;
• If the unit is installed in an environment with a lot of
electromagnetic interference, it is recommended
to use shielded cable
2 x 0,75 ~ 2 x 1,25
Serial connection 1000
• If you are using a serial connection cable with a
cross section greater than 1mm2 total length can
go up to 1500m;
• The cable should be a two-pole isolated twisted;
• If the unit is installed in an environment with a lot of
electromagnetic interference, is to use a shielded
cable racccomanda
≥ 2 x 0,75
L NXT1
XT2
L NXT1
XT2
L NXT1
XT2
L
N
120Ω
IL IL IL
D1 D2 H1 H2 D1 D2 H1 H2 D1 D2 H1 H2
Power supply
Serial connection
Wired pannel connection
