AERMEC RePuro 650 - RePuro250 Performance Curves

24
IREPPY - 1404 - 4238051_01
0
100
200
300
400
500
600
0 50 100 150 200 250
G4
[Pa]
[m³/h]
⑦
⑪
⑭
⑰
⑳
RePuro250

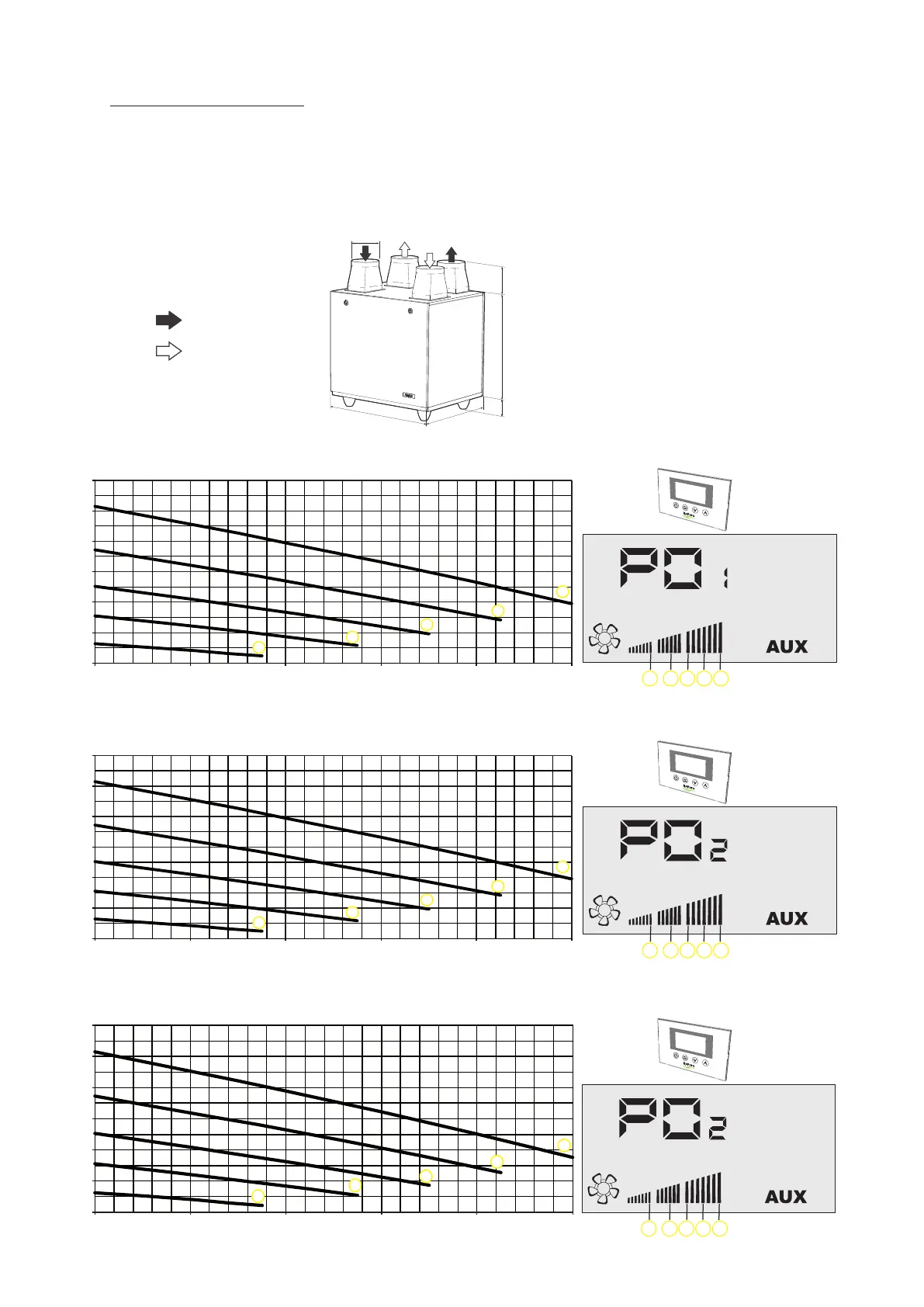

RePuro250 t air fan curves - Fan available pressure with standard filter G2
0
100
200
300
400
500
600
0 50 100 150 200 250
G2
[Pa]
[m³/h]
⑦
⑪
⑭
⑰
⑳
RePuro250
RePuro250 - Supply air fan curves - Fan available pressure with accessory filter FF7350
0
100
200
300
400
500
600
0 50 100 150 200 25 0
FF7
[Pa]
[m³/h]
⑦
⑪
⑭
⑰
⑳
RePuro250
Supply air ow
Supply air ow
Extract air ow
Available stac pressure Available stac pressure Available stac pressure
RePuro250 - Supply air fan curves - Fan available pressure with standard filter G4
Ø150
575
72*
160
655
520
10.3. RePuro250
Air flow - Pressure Curves with G2 extract
air filter and G4 supply air filter (standard
configuration).
Air flow - Pressure Curves with G2 extract
air filter and efficiency class F7 supply air
filter (accessory FF7350).
Air flow - sound power output at intake
curves.
Air flow - sound power output at supply
curves.
Air flow - Efficiency curve.
Data selection
This document shows the performance at
maximum speed ⑳ and at intermediate
speeds ⑦ ⑪ ⑭ ⑰.
To determine the performance at each of
the 20 speeds use the selection programme
available on www.aermec.com.
⑦
⑪⑭⑰⑳
⑦
⑪⑭⑰⑳
⑦
⑪⑭⑰⑳
Extract air
Supply air
