15
TA 15 4R
Description Notes Accessory
Air ow rate
m
3
/h 900 1100 1300 1500
Intake grid GAP Pa -13 -19 -26 -33
Anti-freeze damper SAP Pa -3 -4 -5 -7
Intake silencers SSL Pa -10 -14 -19 -25
Return fan VRF Pa 421 410 391 320
Mixing chamber with 3 dampers M3S Pa -4 -6 -8 -10
Mixing chamber with 2 dampers M2S Pa -3 -4 -5 -7
Mixing chamber with 2 front dampers S2Z Pa -8 -11 -15 -19
∆ pressure drops between the 4R and 6R coil Pa -5 -7 -10 -14
2R Water post-heating coil 2RPR Pa -19 27 -36 -46
1R Water post-heating coil 1RPR Pa -9 -13 -17 -22
Electric Post -Heating Coil PBE Pa -3 -4 -6 -8
Silencers SSL Pa -10 -14 -19 -25
•Soft bag lters, FTF Pa -25 -37 -49 -64
Closed ow plenum PMC Pa 0 0 0 0
Flow plenum with circular vents PMM Pa -1 -1 -1 -2
Flow damper SAP Pa -3 -4 -5 -7
Flow grid GMD Pa -3 -4 -5 -7
X Version (without coil)
Pa 18 25 35 48

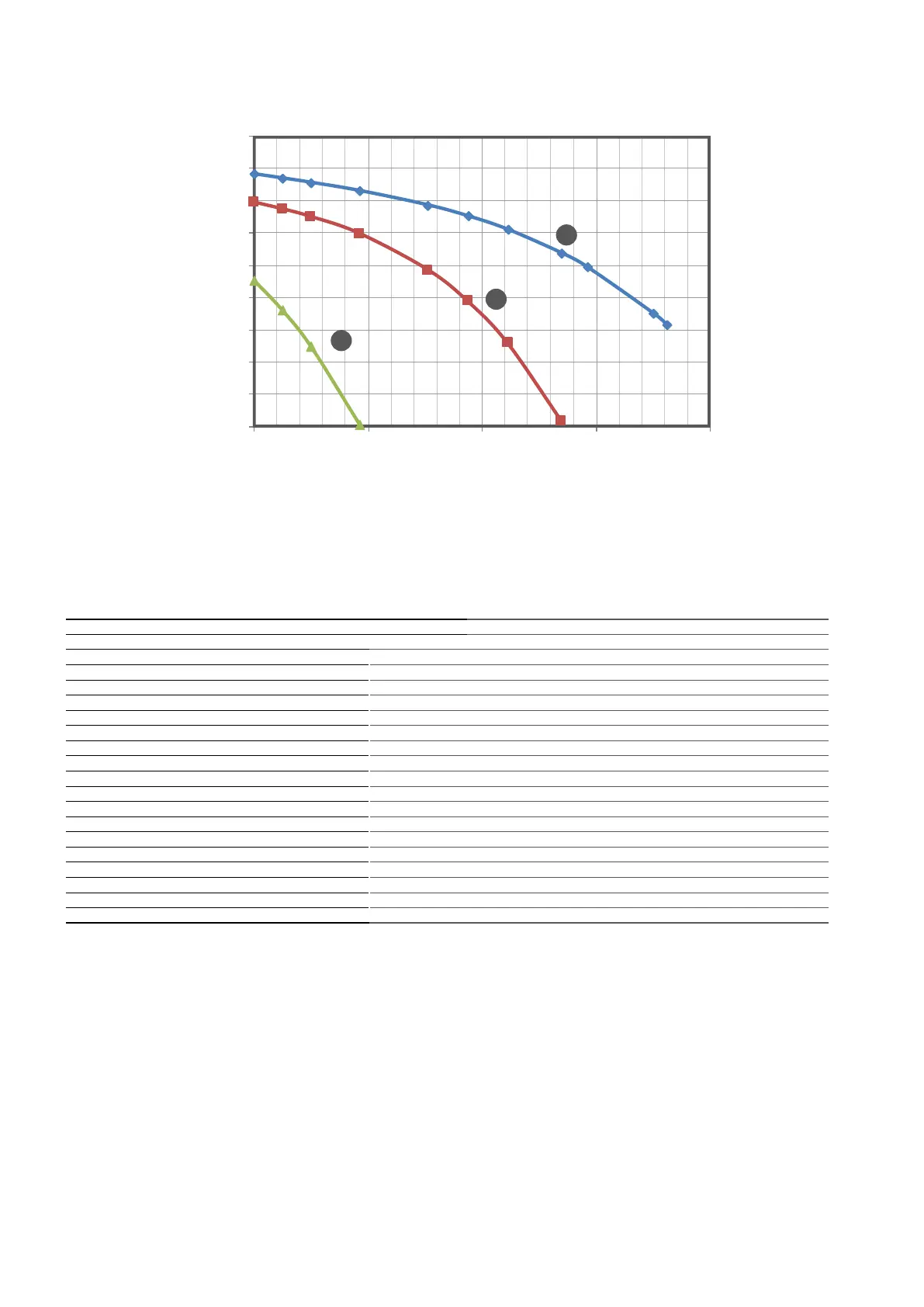

H Maximum speed; M Average speed; L Minimum speed
Air ow rate
(m
3
/h)
Useful static pressure (Pa)
0
50
100
150
200
250
300
350
400
450
800 1000 1200 1400 1600
L
M
H
