6 INPUT/OUTPUT MENU
These pages contain the values and states associated with inputs and outputs avail-
able on the unit.

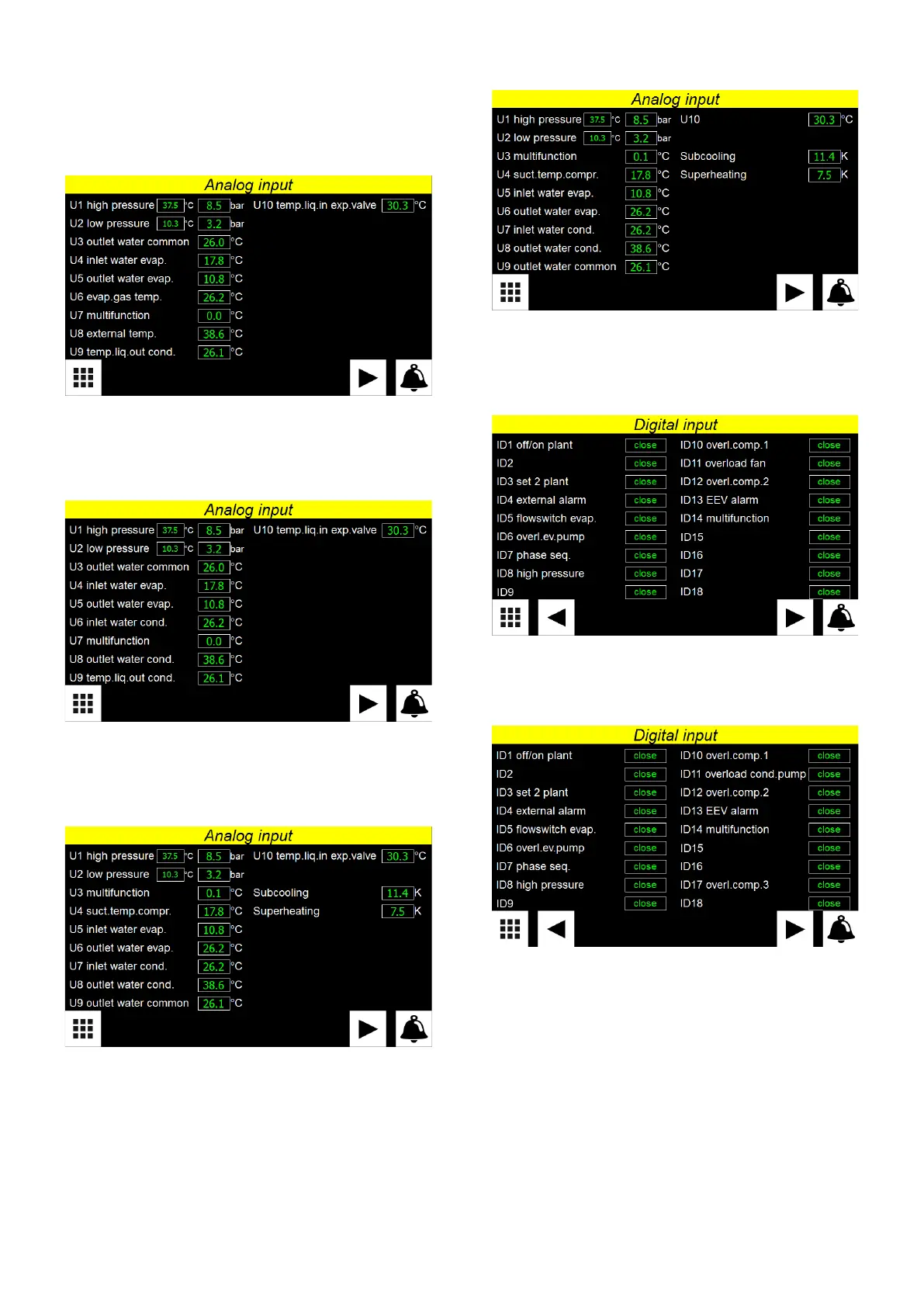

6.1 TBX ANALOGUE INPUTS PAGE
The values read by the transducers and by the probes connected to the various
analogue inputs available on the unit board are indicated.
6.2 WTX/WTG ANALOGUE INPUTS PAGE
The values read by the transducers and by the probes connected to the various
analogue inputs available on the unit board are indicated.
6.3 WMX/WMG ANALOGUE INPUTS PAGE
The values read by the transducers and by the probes connected to the various
analogue inputs available on the unit board are indicated.
6.4 TW110 ANALOGUE INPUTS PAGE
The values read by the transducers and by the probes connected to the various
analogue inputs available on the unit board are indicated.
6.5 TBX DIGITAL INPUTS PAGE
The statuses of the digital inputs available on the unit board are indicated
6.6 WTX/WTG DIGITAL INPUTS PAGE
The statuses of the digital inputs available on the unit board are indicated
