AERMEC Turbocor C-Touch - WMX;WMG;TW110 Digital Inputs; TBX Digital Outputs; WTX;WTG Digital Outputs; WMX;WMG Digital Outputs

18

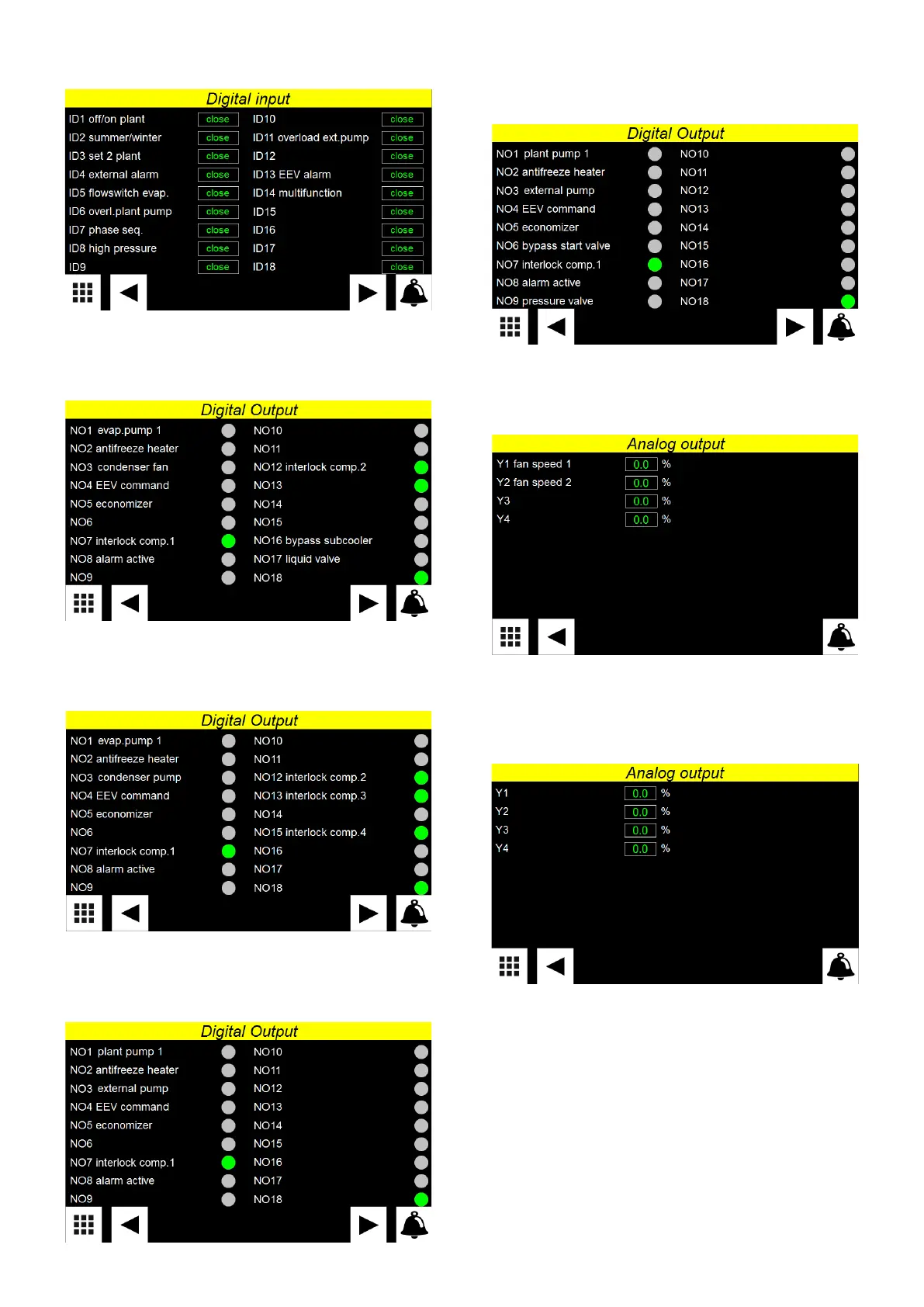

6.7 WMX/WMG/TW110 DIGITAL INPUTS PAGE
The statuses of the digital inputs available on the unit board are indicated
6.8 TBX DIGITAL OUTPUTS PAGE
The statuses of the available digital outputs are indicated (green = On; grey = O).
6.9 WTX/WTG DIGITAL OUTPUTS PAGE
The statuses of the available digital outputs are indicated (green = On; grey = O).
6.10 WMX/WMG DIGITAL OUTPUTS PAGE
The statuses of the available digital outputs are indicated (green = On; grey = O).
6.11 TW110 DIGITAL OUTPUTS PAGE
The statuses of the available digital outputs are indicated (green = On; grey = O).
6.12 TBX ANALOG OUTPUTS PAGE
The percentage values of the analog outputs of the board are indicated
6.13 WTX/WMX/WMG/WTG/TW110 ANALOG OUTPUTS
PAGE
The percentage values of the analog outputs of the board are indicated
