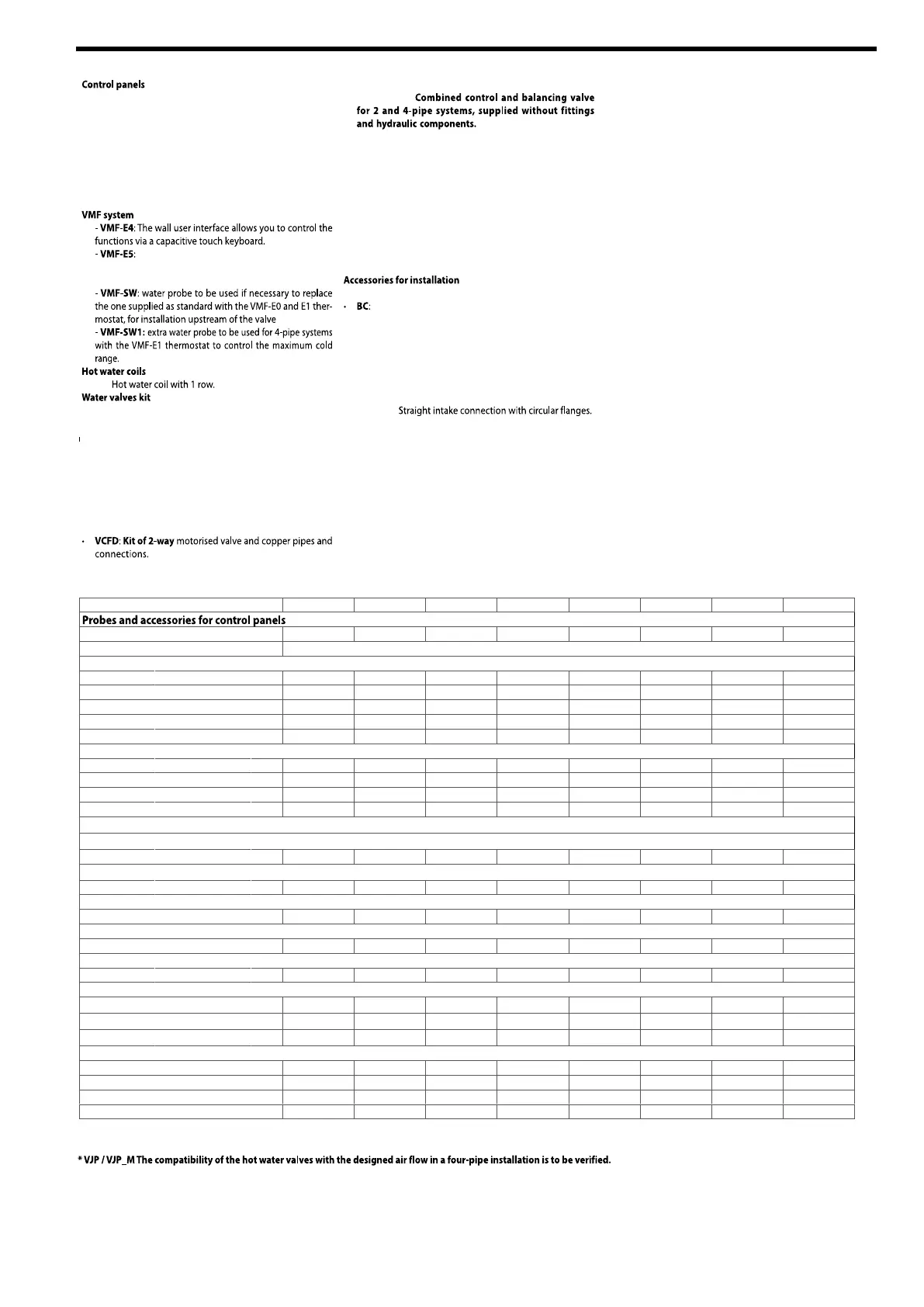

ACCESSORIES
ACCESSORIES
a range of dedicated wall-mounted controls is available
but it is essential to choose between these panels for simple
and complete tuning, for more details please refer to the
dedicated sheet.
Probes and accessories for control panels
• WMT21: Electronic thermostat with LCD display (wall
installation).
• SWAI: Water temperature probe for WMT21 control
panels. Cable length L=2m.
The wall recessed panel allows you to control
the functions of a complete hydronic system via a
capacitive touch keyboard.
• BV:
• VCF_X4: Kit of valves for systems with 4 pipes and
fan coils with one 2-connection coil. Kit made of
special motorised 3-way valves with isolating shell, fit-
tings and isolated copper pipes. _X4L Version for left
connection fan coils. _X4R Version for right connection
fan coils. 230V~50Hz power supply
• VCF: Kit of 3-way motorised valves with insulating
shell, insulated copper fittings and pipes. For standard
or larger main coil and for heating-only coil. Versions
with 230V and 24V~50Hz power supply.
For standard or larger main coil and for
heating-only coil. Versions with 230V and 24V~50Hz
power supply.
• VJP/VJP_M:
The valve can guarantee a
constant water flow in the terminal within its operating
range. Available with 230V and 24V ~ 50Hz power sup-
ply.
The VJP is controlled by an on-off logic with compat-
ible control panels (accessories)
VJP_M is controlled by a modulating logic with pan-
els not supplied by Aermec
The flow rate of the project is crucial to refine the
selection of the valves shown in the compatibility
table.
• AMP: Kit for wall/ceiling mounted installation.
Auxiliary condensate drip tray.
• DSC4: Condensate draining device when level differ-
ences must be exceeded.
• SE: External air damper with manual control
Accessories for ducted installation:
• RDA_V: Straight intake connection with rectangular
flange.
• RDAC_V:
• RPA_V: Intake plenum with rectangular flange.
• RDMC_V: Straight discharge with circular flanges.
Internally insulated.
• PA_V: Intake plenum with circular flanges. Flanges in
plastic material.
• RPM_V: Discharge plenum with rectangular flange.
Internally insulated.
• PM_V: Discharge plenum with circular flanges.
Internally insulated. Flanges in plastic material.
• KFV10: Circular flanges kit for intake/discharge ple-
num.
Flow and intake grid:
• GA: Intake grid with fixed louvers.
• GAF: Intake grid with fixed louvers with filter.
• GM: Flow grid with adjustable louvers.
For more details on the control panels and VMF system refer
to the special data sheets
VES_I
030 040 130 140 230 240 330 340
WMT21 • • • • • • • •
SWAI In combination with WMT2
VMF System
VMF-E18 • • • • • • • •
VMF-E4 • • • • • • • •
VMF-E5 • • • • • • • •
VMF-SW • • • • • • • •
VMF-SW1 • • • • • • • •
Additional coil (heating only)
BV030 •
BV130 •
BV230 •
BV162 •
Water valves
Valve Kit for 4 pipe systems with Main coil
VCF3X4L-R • • • • • • • •
3 way valve kit
VCF43/4324 (1) • • • • • • • •
3 way valve kit
VCFD3/324 (1) • • • • • • • •
3 way valve kit for heating coil only
VCF45/4524 (1) • • • •
2 way valve kit for heating coil only
VCFD4/424 (1) • • • •
Combined adjustment and balancing valve independent of pressure
VJP060/060M • • • •
VJP090/090M • •
VJP150/150M • •
Accessories for installation
AMP • • • • • • • •
DSC4 (2) • • • • • • • •
ZX7 • • • • • •
ZX8 • •
For more details on the control panels and VMF system refer to the dedicated sheet.
(1) VCF4324-VCFD324-VCF4524-VCZD424-VJP060M are 24V
(2) DSC4 It's not available with AMP - BC -VMF system.
(3) BC4 is not available with valve VCZ-VCZD / VCF-VCFD
(4) The accessory SE require pairing with ZX
(5) All the Plenums ( RPA_V; PA_V; RPM_V; PM_V ) have a circular push-outs (Ø=150mm ) on both sides, which can be removed, All the can have intake/discharge either
straight or downwards (straight or downwards with reference to horizontal installation).
