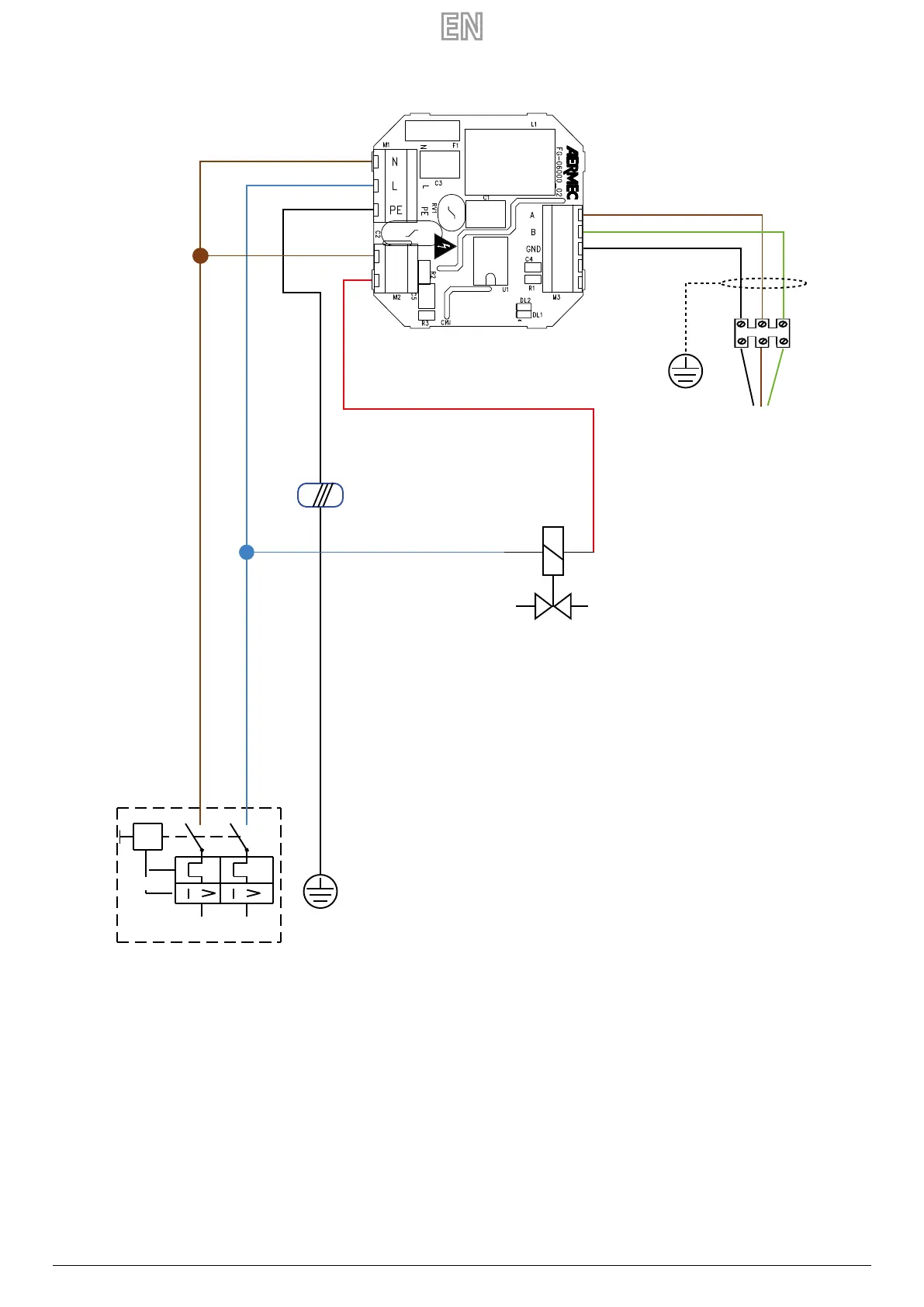

EXAMPLE OF ELECTRICAL CONNECTION
Below you will nd the electrical connection which may be used for all thermostats VMF-FMD:
23OV 50Hz
L
N
IG
VMF-FMD
GND
A
B
MODBUS
RTU RS485
C1
C0
