28 22/10 – 5905355_00

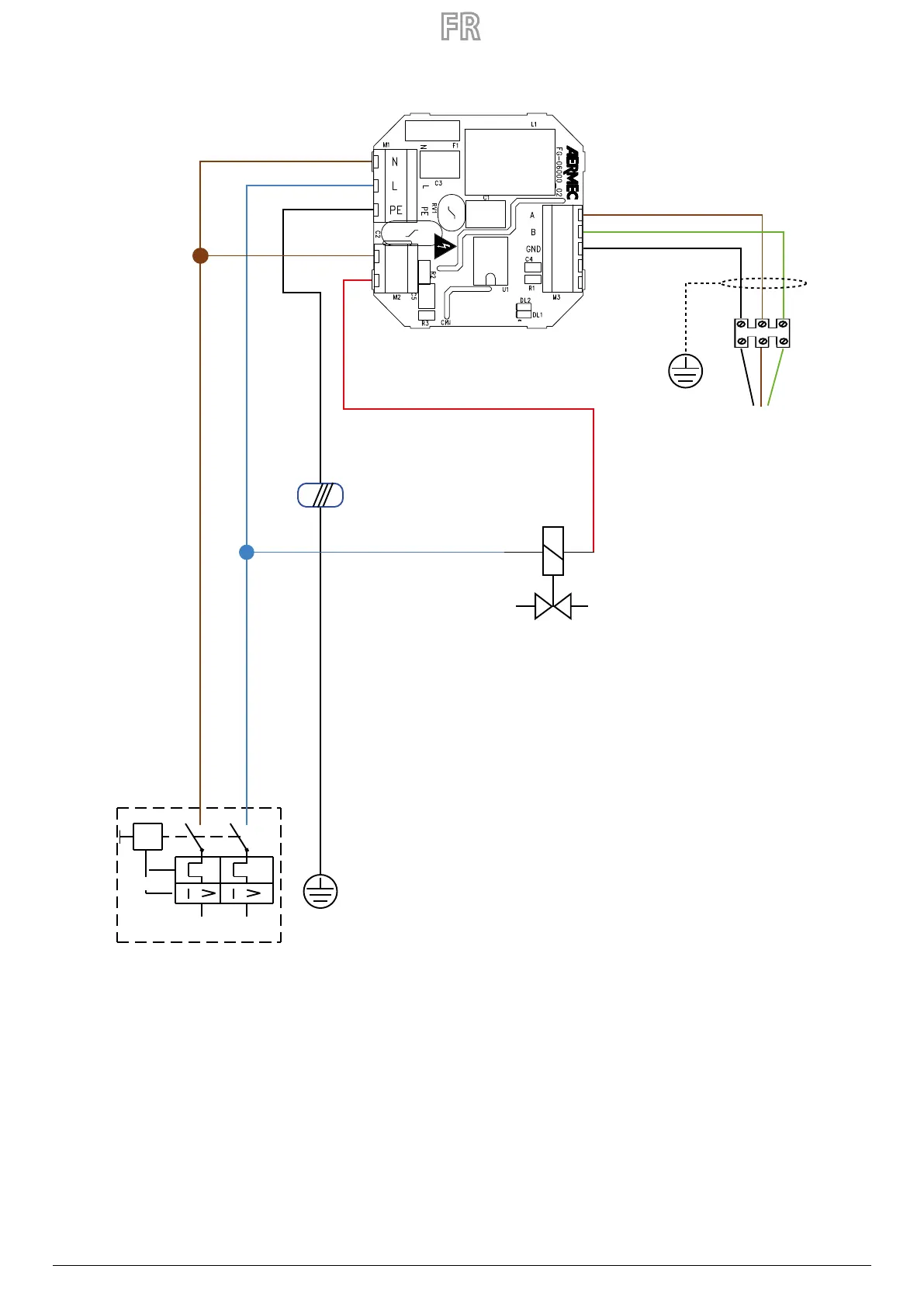

EXEMPLE DE CONNEXION ÉLECTRIQUE
Voir ci-dessous est le schéma de connexion électrique qui peut être utilisé pour tous les thermostats VMF-FMD:
23OV 50Hz
L
N
IG
VMF-FMD
GND
A
B
MODBUS
RTU RS485
C1
C0
