15

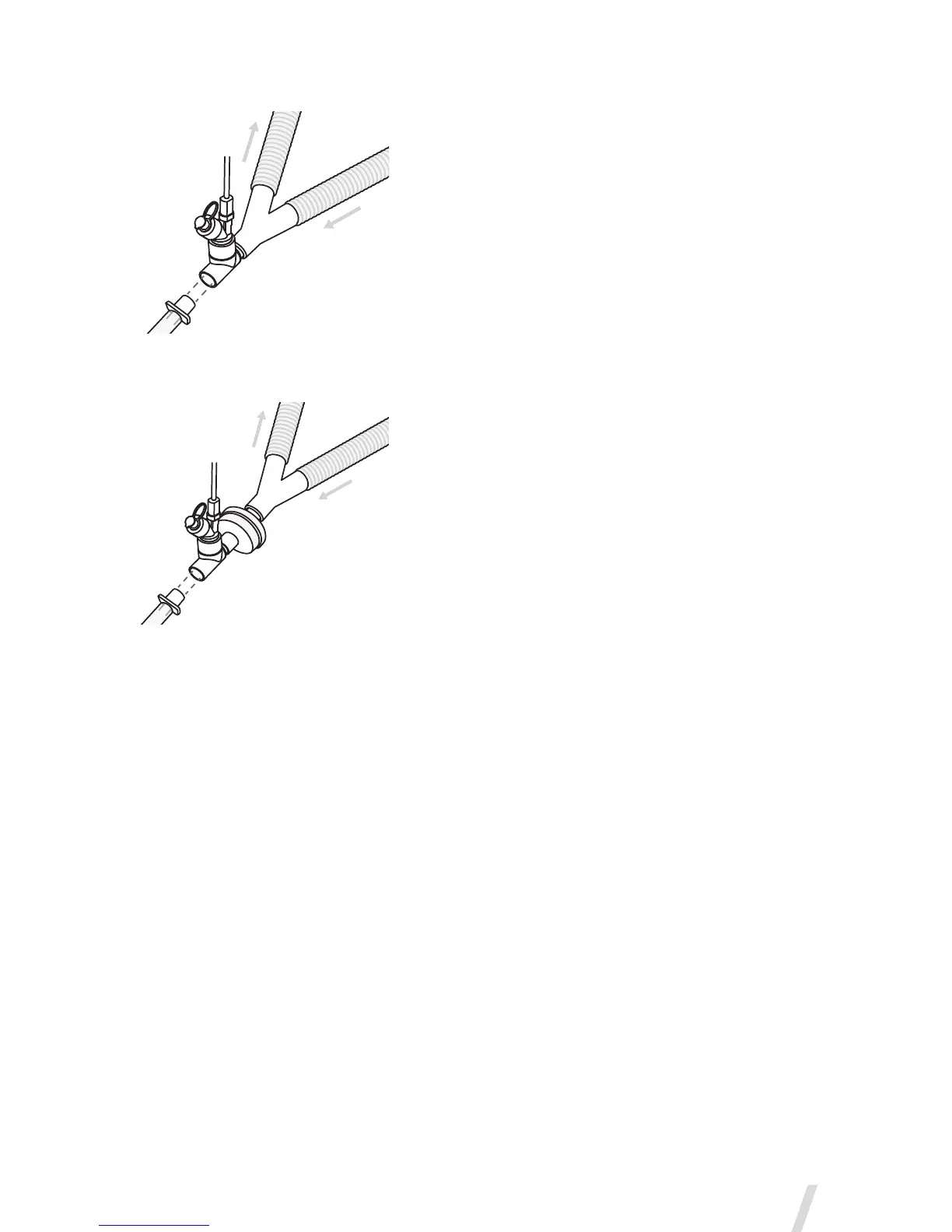

Between the Wye and Endotracheal Tube
The Aerogen Solo can be placed between
the wye and endotracheal tube as shown.
The Aerogen Solo can be used with a Heat
and Moisture Exchange Device (HME)
which may contain a filter.
Between the HME and Endotracheal Tube
Only a HME approved for use with
a nebulizer should be used in this
configuration (as shown). Follow the HME
manufacturer instructions regarding use
with a nebulizer. Ensure the combination
of nebulizer, T-piece and HME volumes
is suitable for the tidal volume being
delivered. See Table 5 for T-piece volumes.
Note: Always perform a leak test of the breathing circuit after inserting or
removing the nebulizer.
Follow ventilator manufacturer instructions for performing a leak test.
For additional T-piece Adapters visit www.aerogen.com for full
parts list.
