WT-9 Dynamic Club S FLIGHT MANUAL Section 4 Page 4-
7
4.5 Normal procedures and check list
The standard cockpit control arrangement is shown in fig.7 and the actual instrument
panel is shown in fig.9.

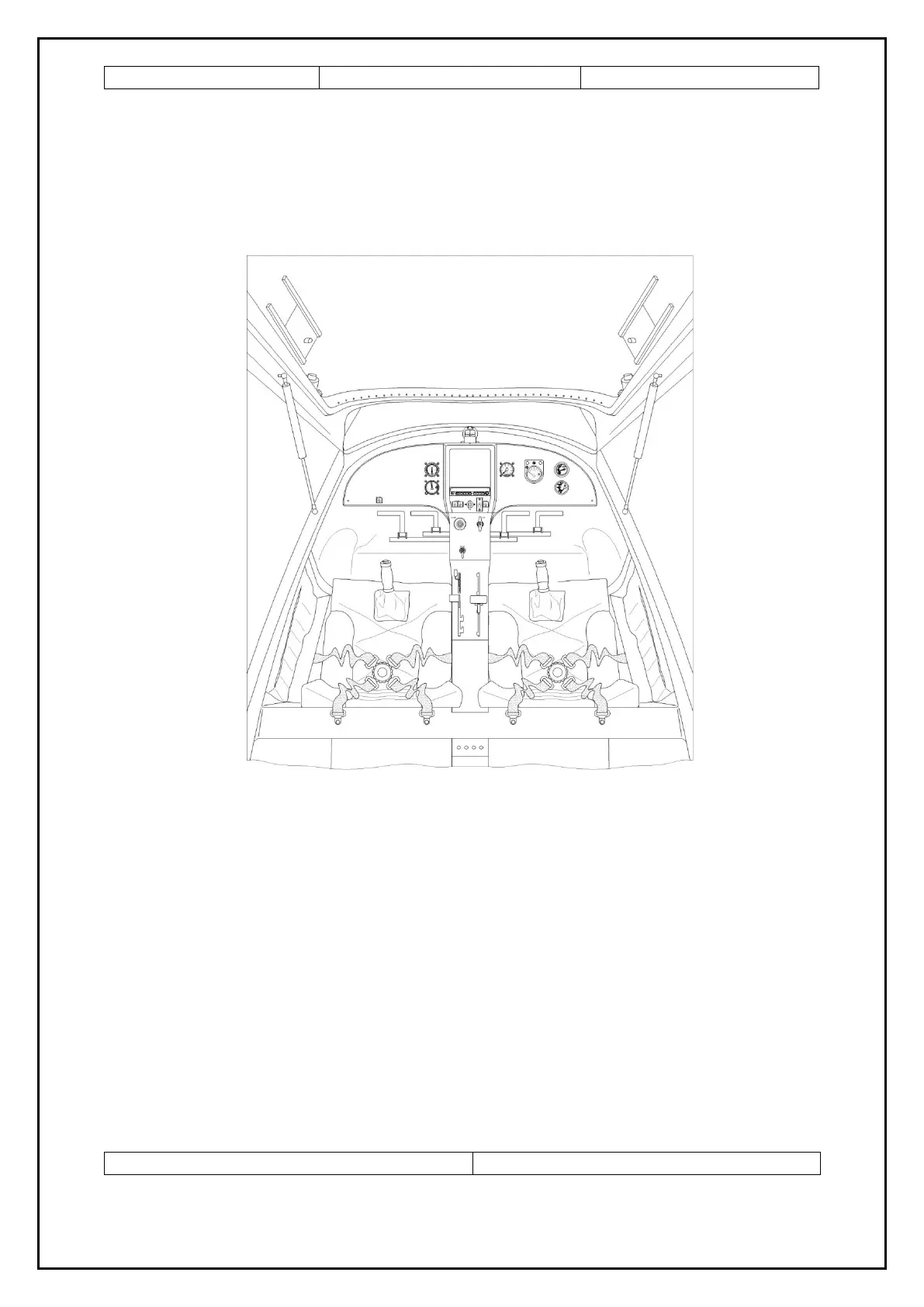

Fig. 7. The standard cockpit controls (see also fig.9 on page 7 – 3)
1. Control stick 9. Instrument panel
2. Rudder pedals 10. Ventilation sliding window
3. Elevator trim control lever 11. Ventilation flow baffle
4. Brake control lever 12. Fuel selector valve
5. Wing flaps control lever 13. Chock and throttle lever
6. Pocket 14. Ignition, Starter key, Master
7. Headset socket / jack switch
8. Seat and safety belt 15.GPS, Radio, Transponder
16. Powerplant instruments
17. Flight instruments
Date: 1.12.2001 „Appr“
1
3
2
4
5
6
7
8
9
10
11
12
13
14
15
16
17
