AEV BSM Evolution USB User Manual

BSM Evolution USB - Compact ON AIR console
AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy
Web site www.aev.eu e-mail info@aev.eu
12

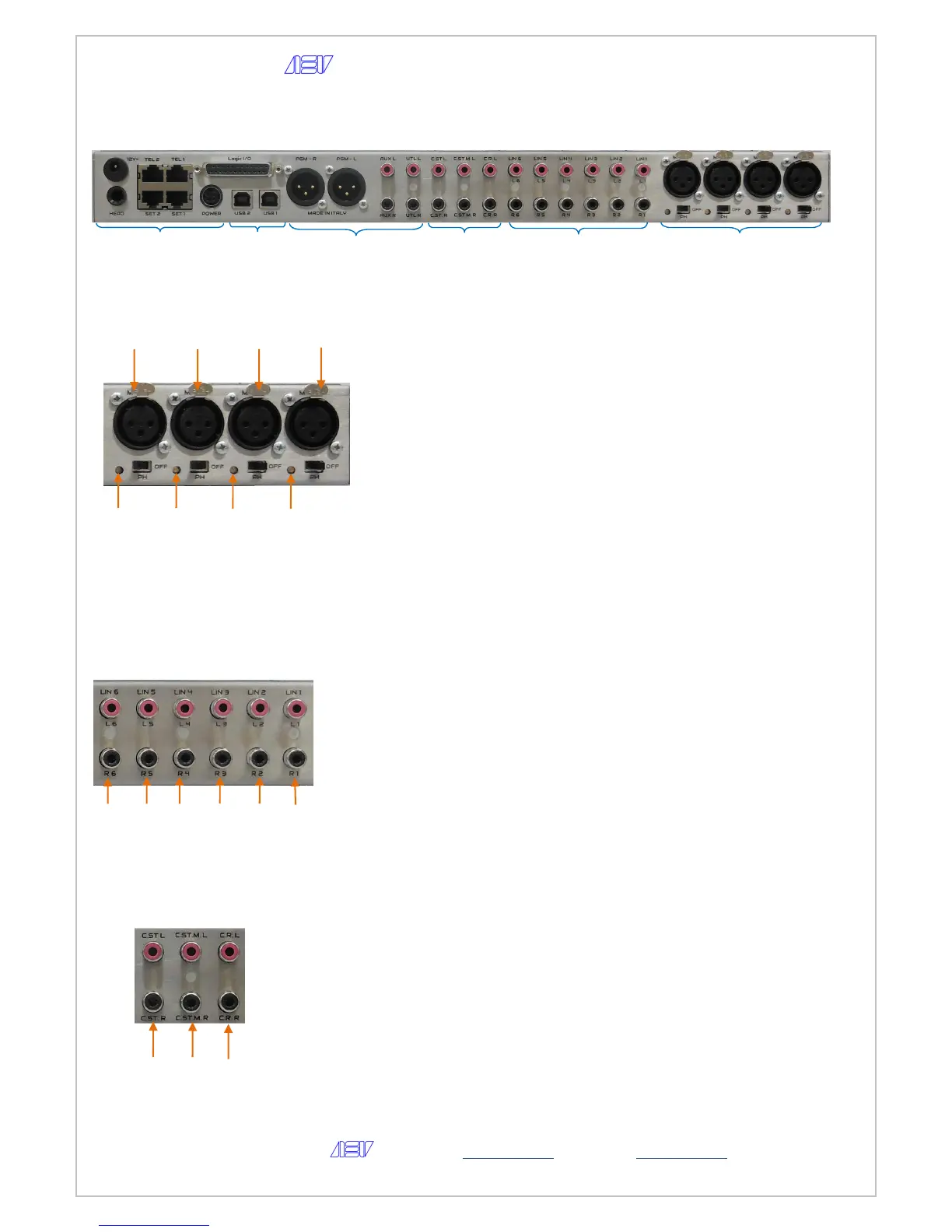

Rear panel – connections
Microphone inputs connection
1 – Microphone 1 input XLR F connector.
2 - Trimmer adjusting the MIC 1 input level from 0 ÷
to +30 dB for very low volume microphones.
3 – Microphone 2 input XLR F connector.
4 - Trimmer adjusting the MIC 2 input level from 0 ÷
to +30 dB for very low volume microphones.
5 – Microphone 3 input XLR F connector.
6 - Trimmer adjusting the MIC 3 input level from 0 ÷
to +30 dB for very low volume microphones.
7 – Microphone 4 input XLR F connector.
8 - Trimmer adjusting the MIC 4 input level from 0 ÷
to +30 dB for very low volume microphones
Line inputs connection
9 – Stereo line 1 input RCA connector.
10 – Stereo line 2 input RCA connector.
11 – Stereo line 3 input RCA connector.
12 – Stereo line 4 input RCA connector.
13 – Stereo line 5 input RCA connector.
14 – Stereo line 6 input RCA connector
Ausiliary Outputs connections
15 – Control Room outputs RCA connectors.
16 – Control Studio Mutable outputs RCA connectors.
17 – Control Studio outputs RCA connectors.
7
5
3
1
8
6
4
2
15
16
17
Microphone inputs
Line inputs
Auxiliary outputs
USB
Master Outputs
Head//Logic & PWS
10
9
13
14
11
12

AEV BSM Evolution USB Specifications

Microphone Inputs

input impedance	200 Ω
sensitivity level range	-70 ÷-40 dBu
maximum input level	- 30 dBu

Line Inputs

input impedance	10 K Ω
input level range	±12 dBu
headroom	+ 18 dBu

Telephone Hybrid

input impedance	600 Ω
tx level	±12 dBu
frequency response	300 Hz ÷ 3400 Hz (-2 dB)

Analog Outputs

output impedance	100 Ω
pgm output level range	-12 ÷ +12 dBu
utl/aux output level range	-12 ÷ +12 dBu

Headphones

output impedance	50 Ω
connector	JACK 6, 3 mm
configuration type	Stereo unbalanced

Logic I/O

max voltage	50 Vdc/ac
max current	100 mA
connector	DSUB 15 pole female

Physical Specifications

dimensions	484 x 310 x 45 mm
weight	5 Kg
usb port	2 x USB 2.0 interface
