AEV BSM Evolution USB User Manual

BSM Evolution USB - Compact ON AIR console
AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy
Web site www.aev.eu e-mail info@aev.eu
8

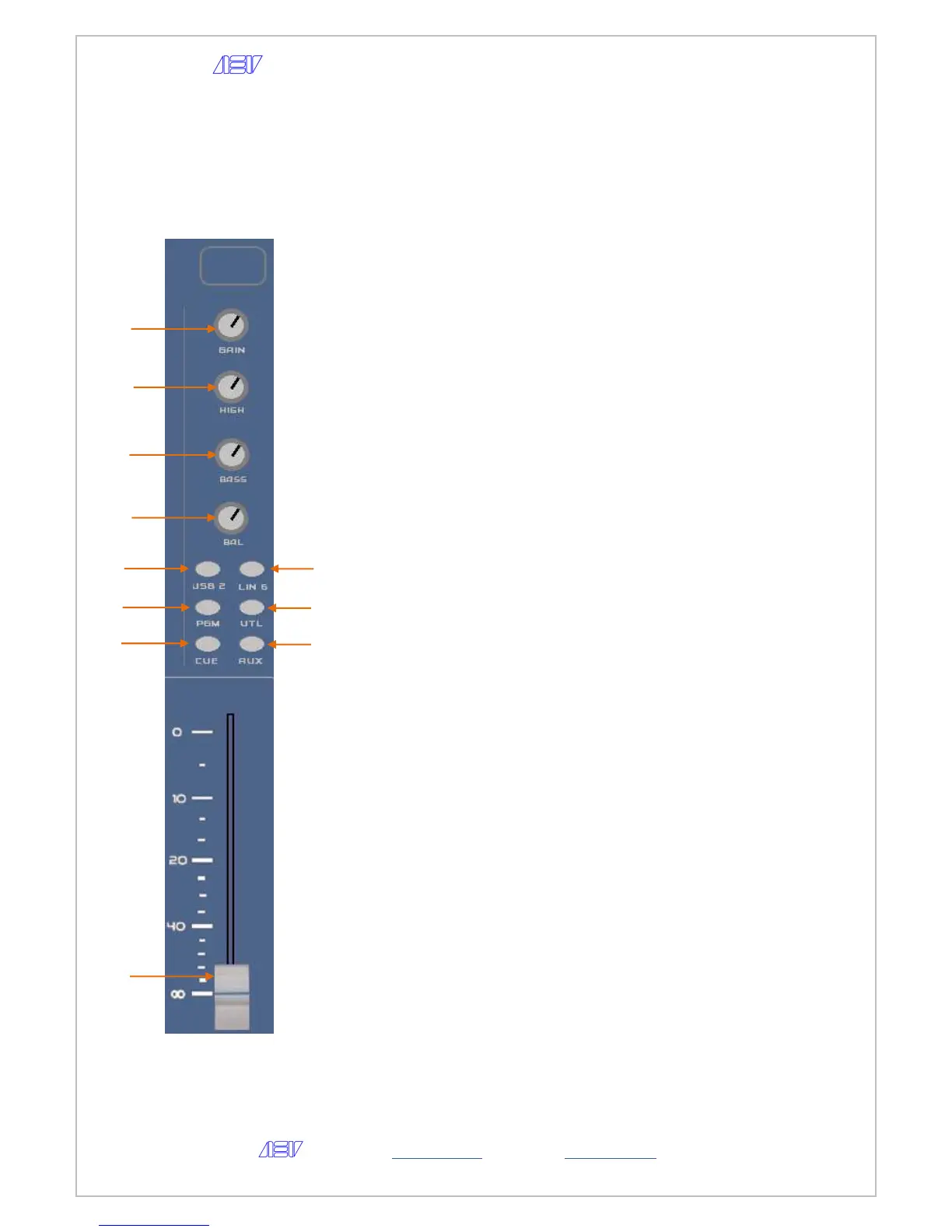

USB - Line Channel ( channels 5 – 6 )
All controls on the USB-Line input channel are described below.
1 – GAIN potentiometer.
2 – TREBLE potentiometer band adjust
3 – BASS potentiometer band adjust
4 – BALANCE L/R potentiometer adjust
5 – Button for selecting the input USB source (only
with the channel in STOP)
6 – Button for selecting the input stereo line source
(only with the channel in STOP)
7 – Button for routing the channel to the PGM bus
8 – Button for routing the channel to the UTL bus
9 – Button enabling the preview CUE
10 – Button for routing the channel to the AUX bus
11 – Fader
1
2
3
4
5
6
7
8
9
10
11

AEV BSM Evolution USB Specifications

Microphone Inputs

input impedance	200 Ω
sensitivity level range	-70 ÷-40 dBu
maximum input level	- 30 dBu

Line Inputs

input impedance	10 K Ω
input level range	±12 dBu
headroom	+ 18 dBu

Telephone Hybrid

input impedance	600 Ω
tx level	±12 dBu
frequency response	300 Hz ÷ 3400 Hz (-2 dB)

Analog Outputs

output impedance	100 Ω
pgm output level range	-12 ÷ +12 dBu
utl/aux output level range	-12 ÷ +12 dBu

Headphones

output impedance	50 Ω
connector	JACK 6, 3 mm
configuration type	Stereo unbalanced

Logic I/O

max voltage	50 Vdc/ac
max current	100 mA
connector	DSUB 15 pole female

Physical Specifications

dimensions	484 x 310 x 45 mm
weight	5 Kg
usb port	2 x USB 2.0 interface
