AEV BSM Evolution USB User Manual

BSM Evolution USB - Compact ON AIR console
AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy
Web site www.aev.eu e-mail info@aev.eu
13

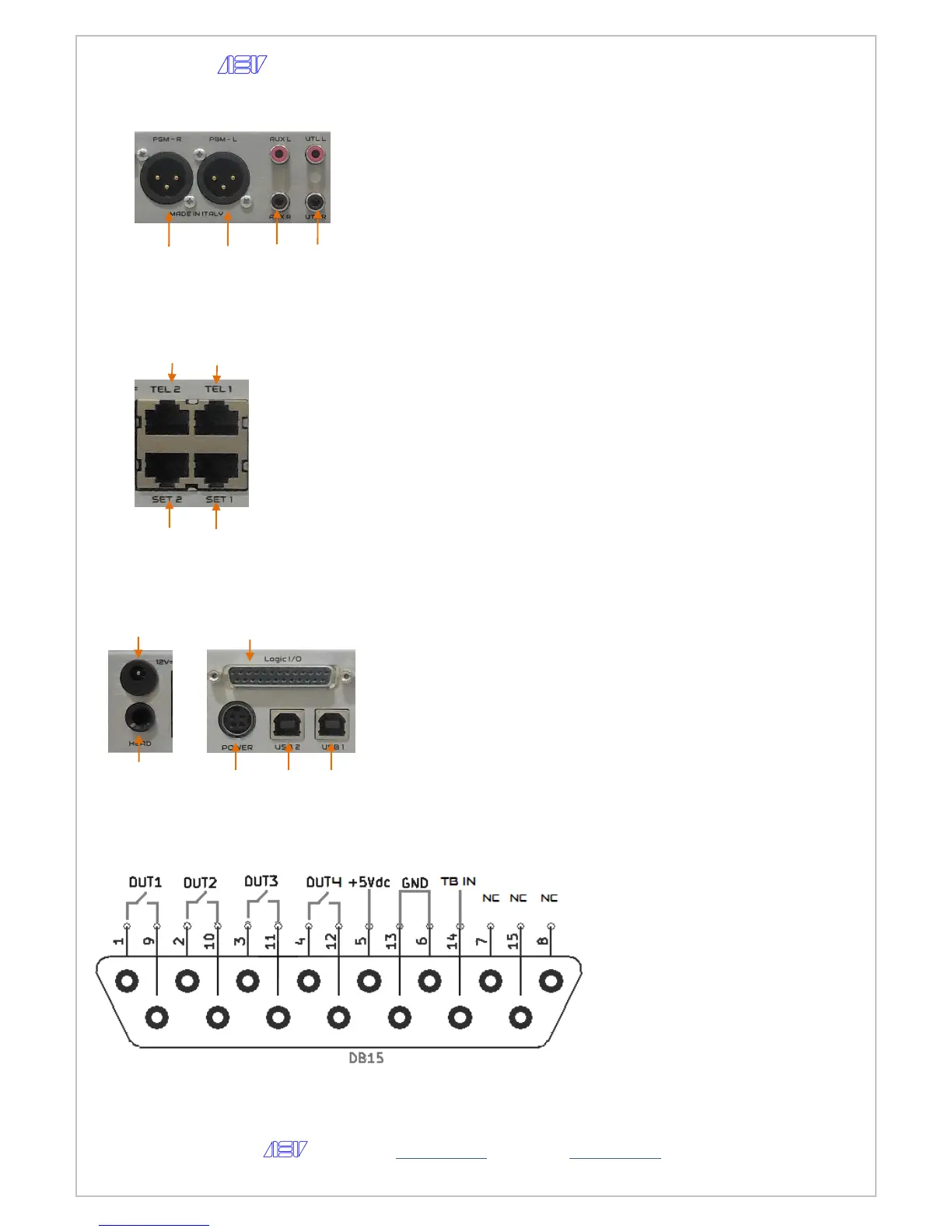

Master Outputs connections
18 – Master UTL output RCA connectors.
19 – Master AUX output RCA connectors.
20 – Master PGM Left output XLR connector.
21 – Master PGM Right output XLR connector.
Telephone connection
22 - Connector RJ45 for telephone line 1.
23 - Connector RJ45 for telephone service 1.
24– Connector RJ45 for telephone line 2.
25– Connector RJ45 for telephone service 2.
USB/Logic & PWS connections
26 – Logic I/O DB15 connector.1.
27 – PWS connector.
28 – Headphone jack 6,3 mm connector.
29 – USB 1 connector.
30 – USB 2 connector.
31 – Auxiliary PWS connector
Logic I/O pinout
18
19
20
21
23
25
22
24
31
29
28
27
26
30

AEV BSM Evolution USB Specifications

Microphone Inputs

input impedance	200 Ω
sensitivity level range	-70 ÷-40 dBu
maximum input level	- 30 dBu

Line Inputs

input impedance	10 K Ω
input level range	±12 dBu
headroom	+ 18 dBu

Telephone Hybrid

input impedance	600 Ω
tx level	±12 dBu
frequency response	300 Hz ÷ 3400 Hz (-2 dB)

Analog Outputs

output impedance	100 Ω
pgm output level range	-12 ÷ +12 dBu
utl/aux output level range	-12 ÷ +12 dBu

Headphones

output impedance	50 Ω
connector	JACK 6, 3 mm
configuration type	Stereo unbalanced

Logic I/O

max voltage	50 Vdc/ac
max current	100 mA
connector	DSUB 15 pole female

Physical Specifications

dimensions	484 x 310 x 45 mm
weight	5 Kg
usb port	2 x USB 2.0 interface
