AEV BSM Evolution USB User Manual

BSM Evolution USB - Compact ON AIR console
AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy
Web site www.aev.eu e-mail info@aev.eu
9

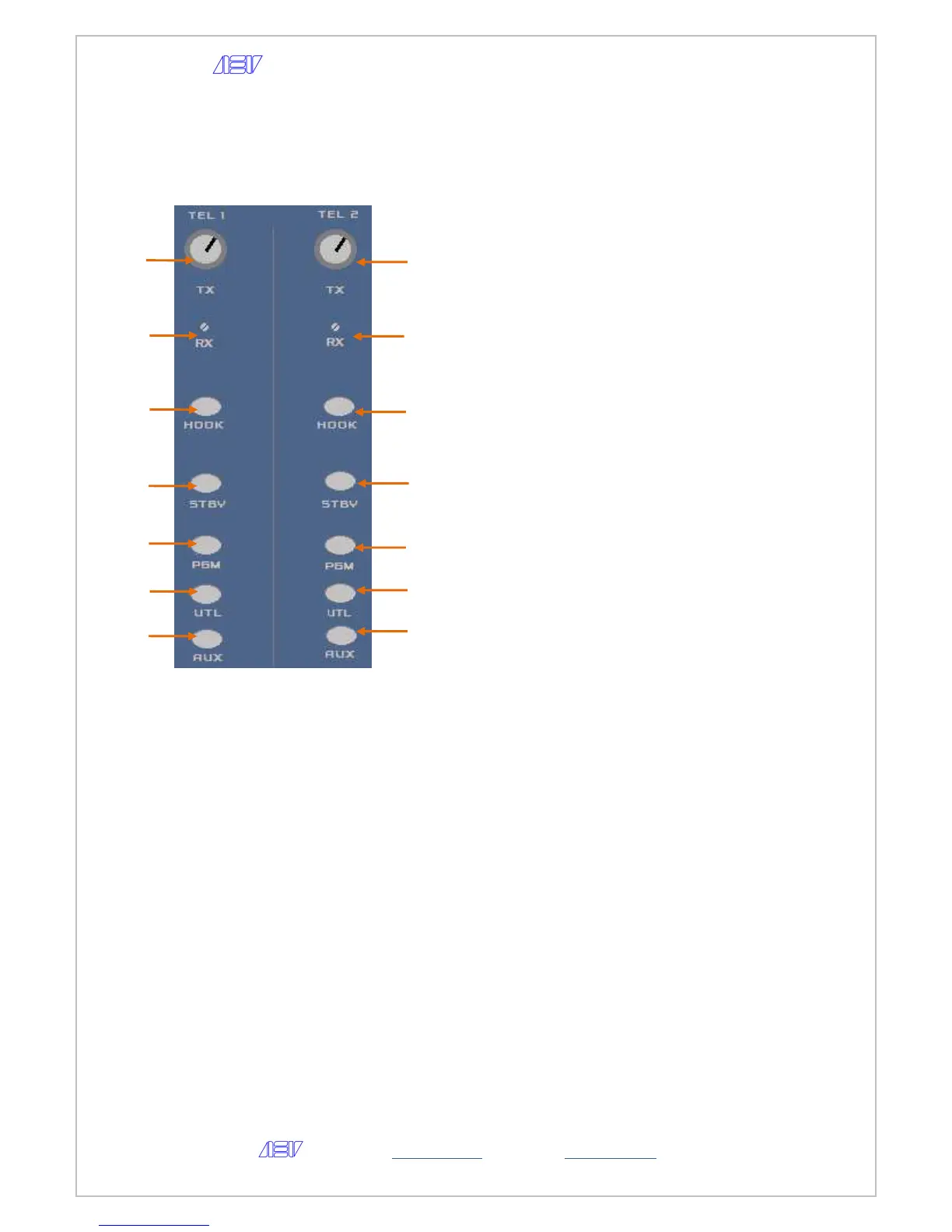

Telephone hybrids section
1A - output level potentiometer telephone line 1
1B - output level potentiometer telephone line
2A - level adjust receive for telephone line 1.
2B - level adjust receive for telephone line 2.
3A - HOOK button for telephone line 1 hook-up
3B - HOOK button for telephone line 2 hook-up
4A - Button for Stanby state for telephone line 1.
4B - Button for Stanby state for telephone line 2.
5A - Button for assigning the tel1 to the PGM
bus.
5B - Button for assigning the tel2 to the PGM
bus.
6A - Button for assigning the tel1 to the UTL bus.
6B - Button for assigning the tel2 to the UTL bus.
7A - Button for assigning the tel2 to the AUX
bus.
7B - Button for assigning the tel2 to the AUX
bus.
1
A
2A
3A
4A
5A
6A
7A
1
B
2B
3B
4B
5B
6B
7B

AEV BSM Evolution USB Specifications

Microphone Inputs

input impedance	200 Ω
sensitivity level range	-70 ÷-40 dBu
maximum input level	- 30 dBu

Line Inputs

input impedance	10 K Ω
input level range	±12 dBu
headroom	+ 18 dBu

Telephone Hybrid

input impedance	600 Ω
tx level	±12 dBu
frequency response	300 Hz ÷ 3400 Hz (-2 dB)

Analog Outputs

output impedance	100 Ω
pgm output level range	-12 ÷ +12 dBu
utl/aux output level range	-12 ÷ +12 dBu

Headphones

output impedance	50 Ω
connector	JACK 6, 3 mm
configuration type	Stereo unbalanced

Logic I/O

max voltage	50 Vdc/ac
max current	100 mA
connector	DSUB 15 pole female

Physical Specifications

dimensions	484 x 310 x 45 mm
weight	5 Kg
usb port	2 x USB 2.0 interface
