Afikim PRS4024a - Part 1: Assembling the Bottom Beam

11/21
Part 1: Assembling the Bottom Beam

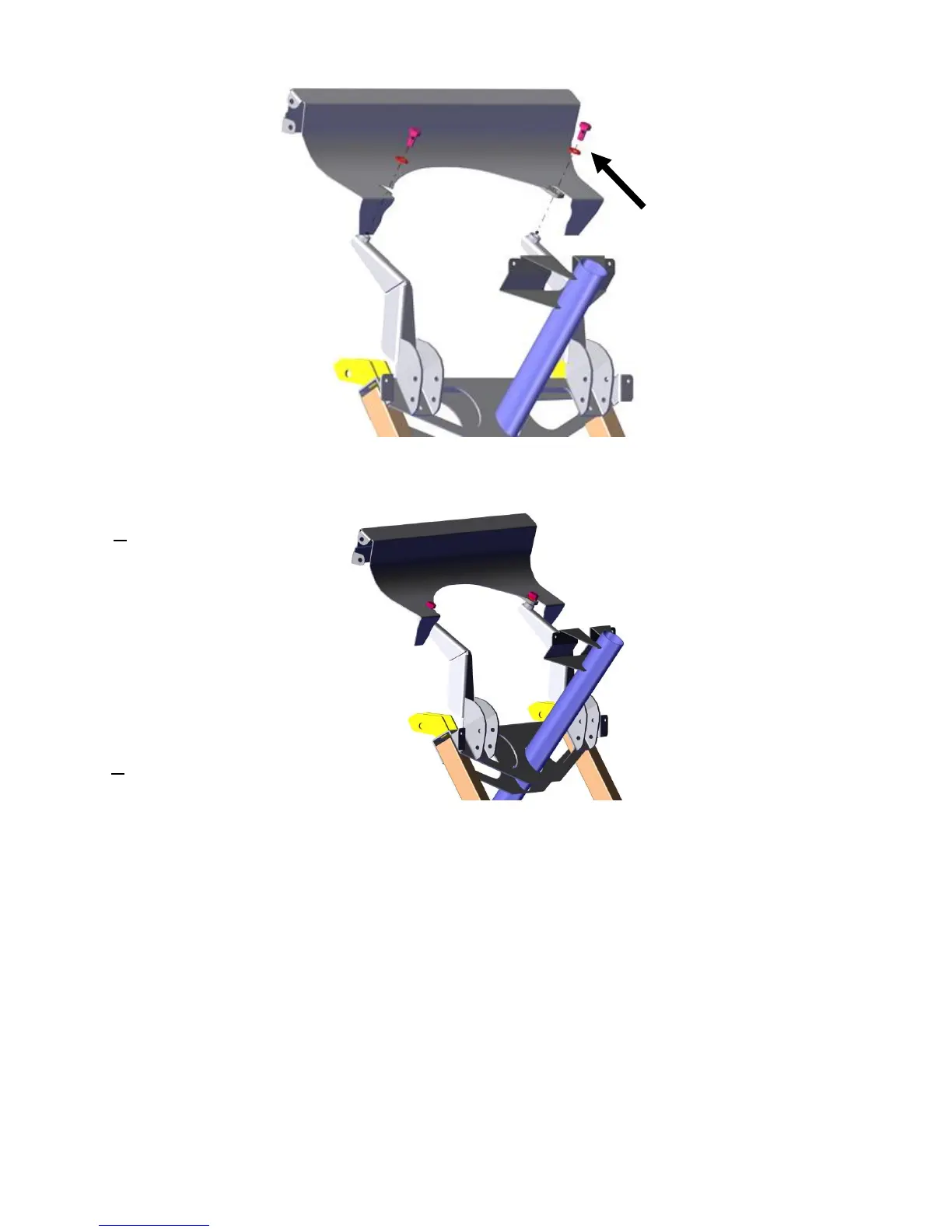

1.
Assemble the
bottom beam, onto
the inner brackets,
as shown.
2.
If using a chassis as
a jig, fasten the
bolts, but do not
fasten them
strongly. (After
assembly, these
bolts will be
loosened to remove
the canopy.)
If assembling the
canopy directly onto
the scooter, fasten
these anchor bolts
securely. (This is a
permanent assembly
of the bracket to the
vehicle.)
 M8x16
 Spring washer
5/16
