Afikim PRS4024a - Part 3: Assembling the Side Beams

13/21
Part 3: Assembling the Side Beams

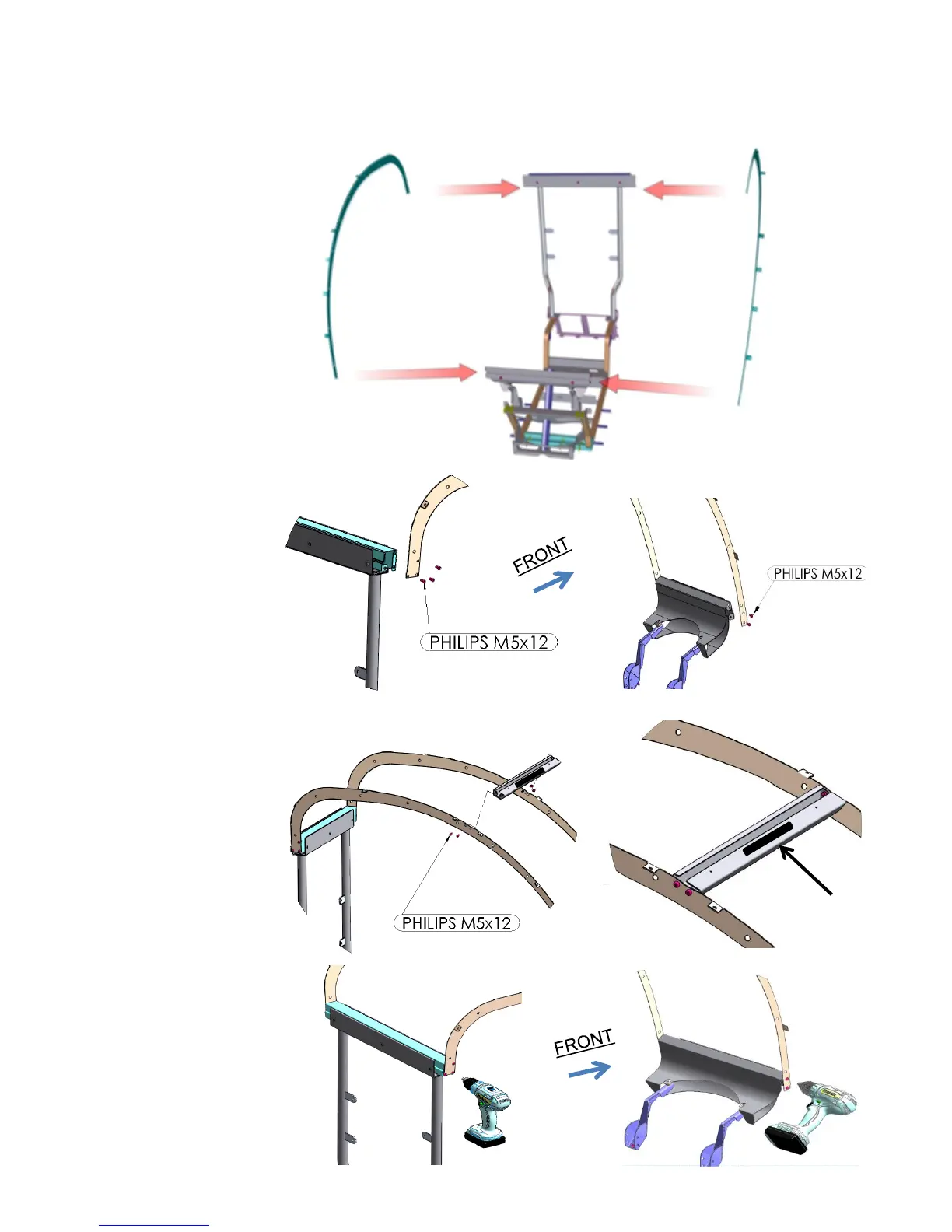

Assemble side beams to the bottom beam, and Top-Beam, as shown below.
1.
At first, LOOSLEY
attach the side
beams to the
bottom beam and
top-beam.
Do NOT tighten the
bolts.
2.
Secure the center
beam between the
two side beams.
Tighten the bolts
securely on both
sides.
3.
After securing the
center beam, tighten
all remaining bolts
on both sides.
AC00198
Foam Tape
