Afikim PRS4024a User Manual

18/21
Part 5: Assembling the Side Panels

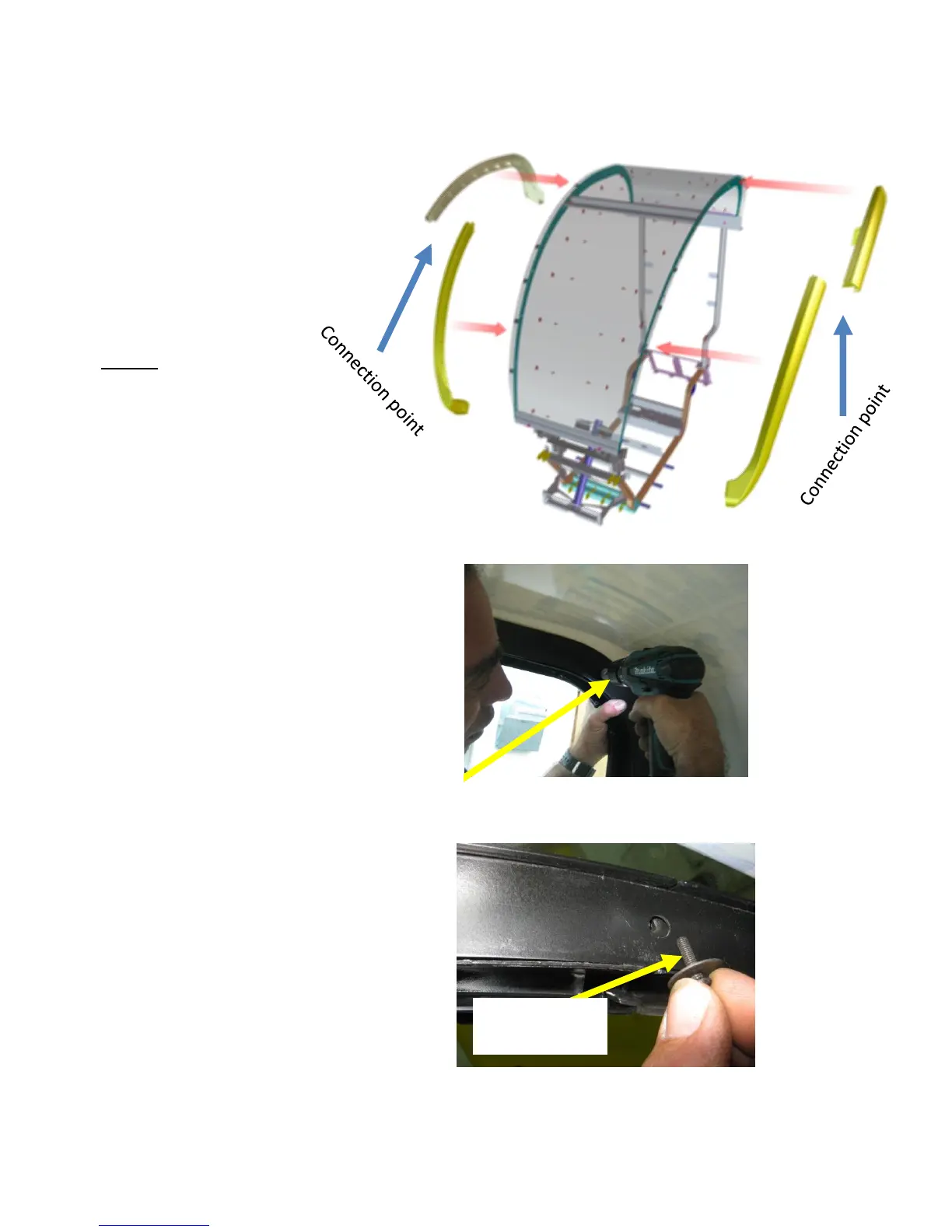

Assemble side Panels as shown below.
1.
Assemble four side panels
onto the sides of the canopy.
Start from the back, and
work towards the front.
Caution: Don`t over tighten
the M4 screws.
T
max
=2.2 Nm (18.5 lbf·in).
2.
Fasten screws.
Ensure that each screw is
properly centered in its
housing.
Note: use tool #2 on the tool
table for the 4 corner screws.
3.
At the connection point
between the upper and
lower plastic beam, fasten a
black screw M4x16.
 Black M4x12
 Black washer
 Black M4x16
 Black washer
