Part B: Mounting the Inner Bracket

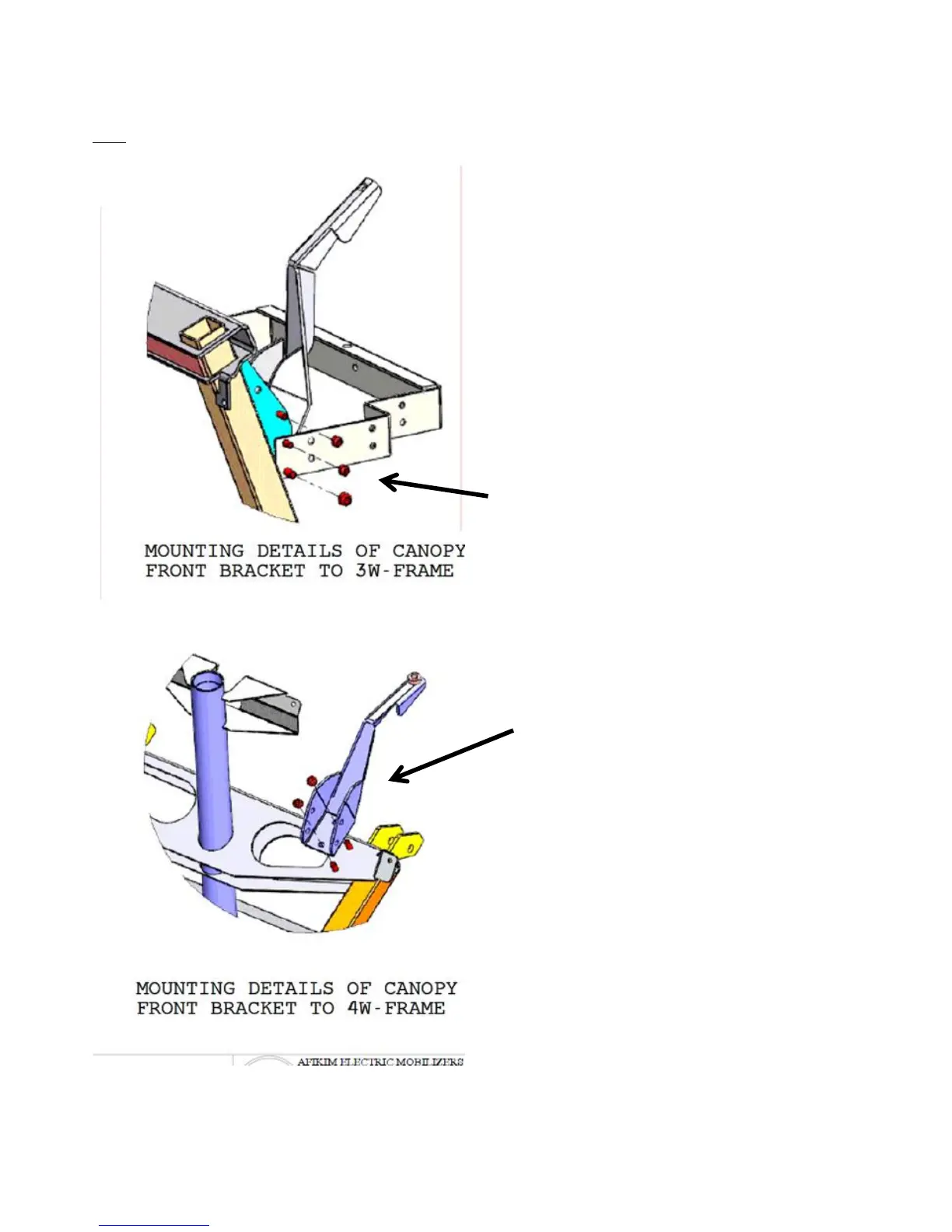

Mount the inner bracket as shown below.
Note: You may need to pre drill (Ø 6mm) the holes upon the scooter frame.
M6X16
NYLOCK M6
M6X16
NYLOCK M6
