Part C: Assembling the Rear Frame

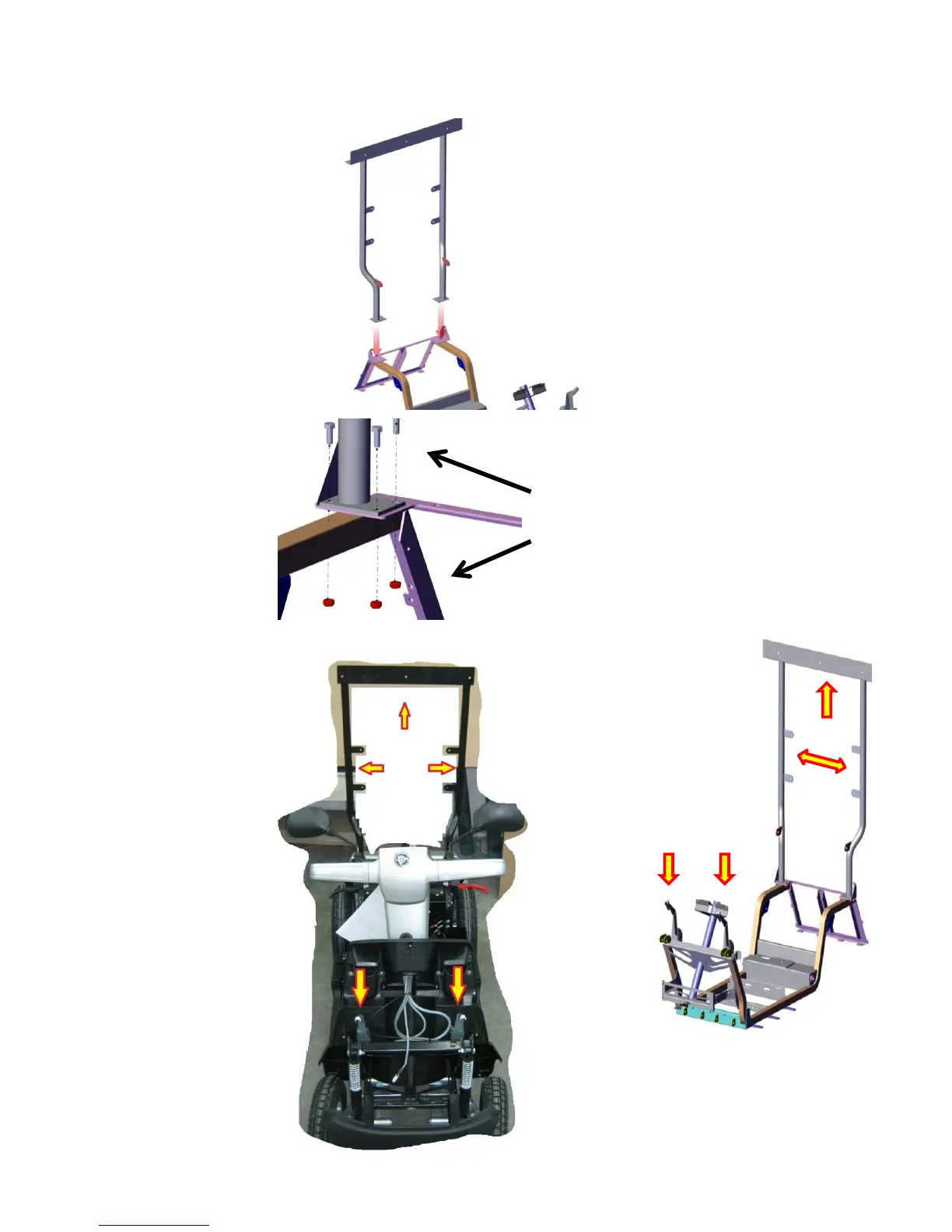

Assemble the rear frame as shown below.
1.
2.
Three bolts anchor
each frame base.
Tighten bolts
securely.
After assembling the
rear frame and the
inner brackets, the
scooters will appear
as shown.
After
assembling
the rear
frame and
the inner
brackets,
the chassis
will appear
as shown.
M6x16
NYLOCK M6
