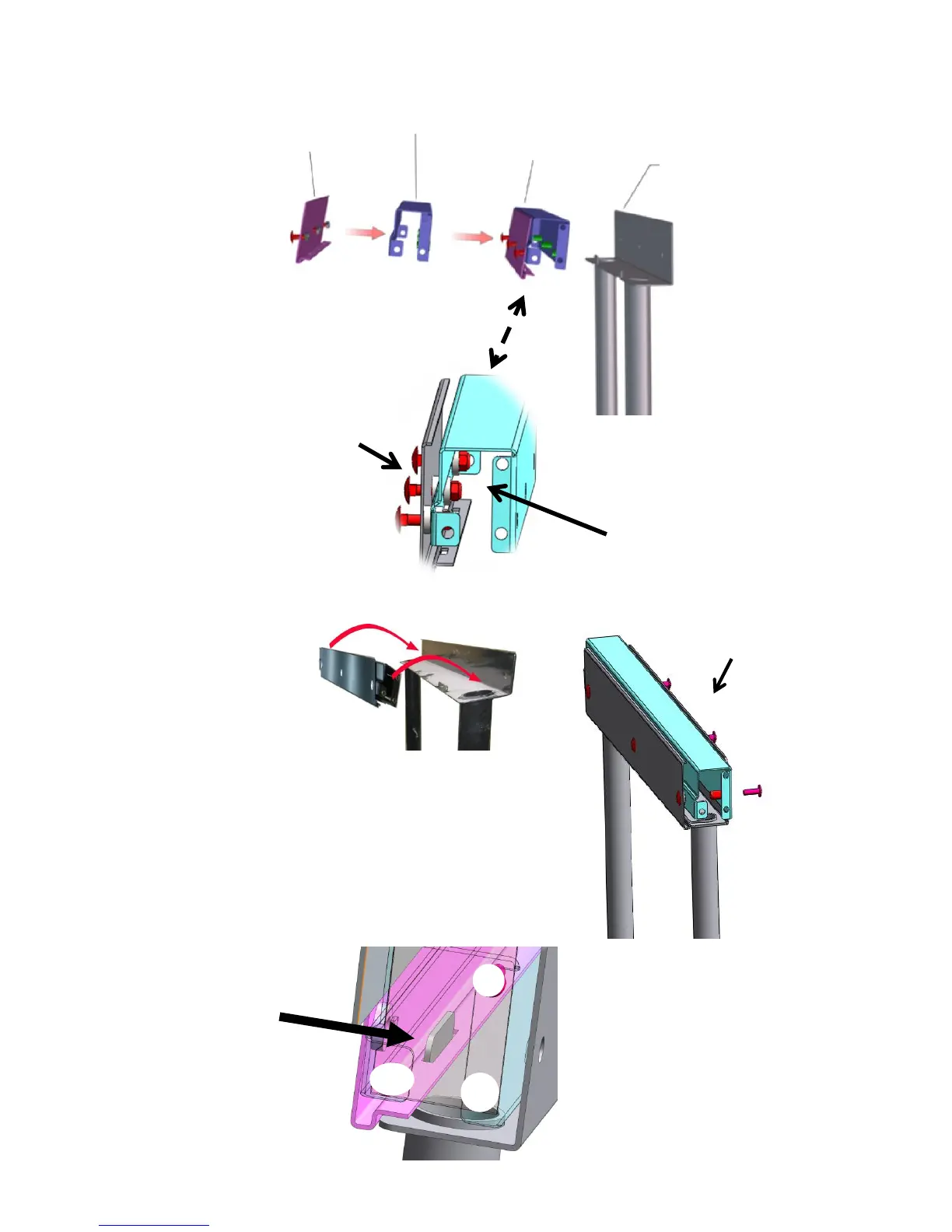

Part 2: Assembling the Top Beam
1.
LOOSLY attach the
cover to the top-
beam back plate.
Do NOT tighten the
square neck bolts.
2.
Place the top-beam
assembly on the rear
frame, as shown.
LOOSLY Secure the
top-beam assembly
to the rear frame
with a hex socket
screw.
Top-Beam
Cover
Top-Beam
Top-Beam
Assembly
Rear Frame
washer
NYLOCK M6
SQ.NECK M6x20
Hex socket button
M6x20
Ensure that slots are placed
over flat pins.
