AFL FlexScan FS200 OTDR Quick Reference Guide

12

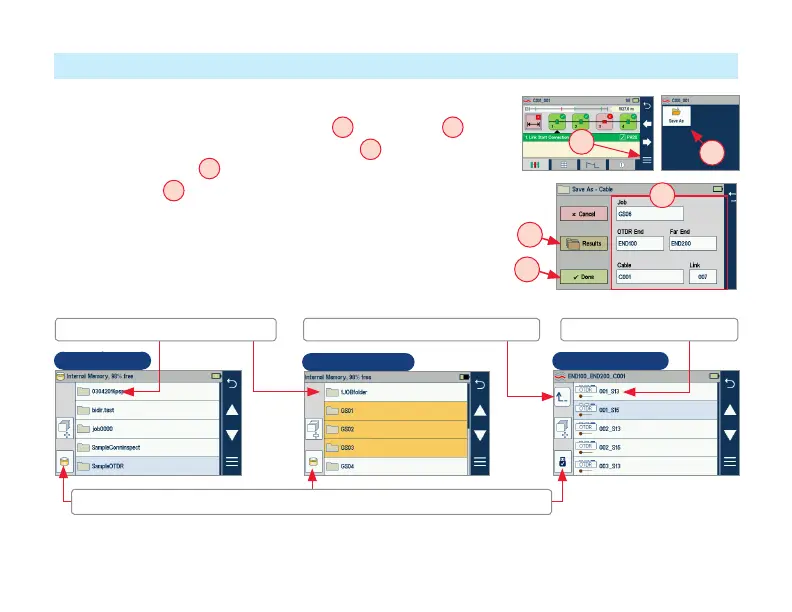

Saving, Recalling and Uploading Test Results
To Save Test Results
1. While in the Results view, touch the Menu
A
, then Save As
B
.
2. Dene Job/OTDR End/Far End/Cable/Link elds
C
used to name saved
results. Touch Done
D
when nished.
3. Touch Results
E
to view, navigate and select a different Job or Cable
folder,or to select USB or Internal memory.
To View Saved Test Results
1. From the Home screen, touch Saved to display the Results Manager.
2. Navigate through Job/Cable/Results screen to locate the desired test
record, then touch it to display test results.
A
B
Cables Screen
Results Screen
©2019 AFL , all rights reserved. FS200-00-1ENG Revision AC 2019-01-15
Refer to the FlexScan User’s Guide (available on the supplied CD or USB stick and www.AFLglobal.com).
Touch this icon to toggle between Internal Memory & USB (if USB stick present)
Touch to display test resultsTouch to move up one directory level Touch the desired folder to open it
C
D
E
Jobs Screen

AFL FlexScan FS200 OTDR Specifications

General

Battery Life	12 hours
Interface	USB, Ethernet
Wavelengths	1310 nm, 1550 nm
Event Dead Zone	0.8 m
Pulse Width	5 ns to 20 μs
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Connector	FC, SC
Attenuation Dead Zone	Single mode: 3.5 m; Multimode: 3.5 m
