AFL FlexScan FS200 OTDR Quick Reference Guide

3

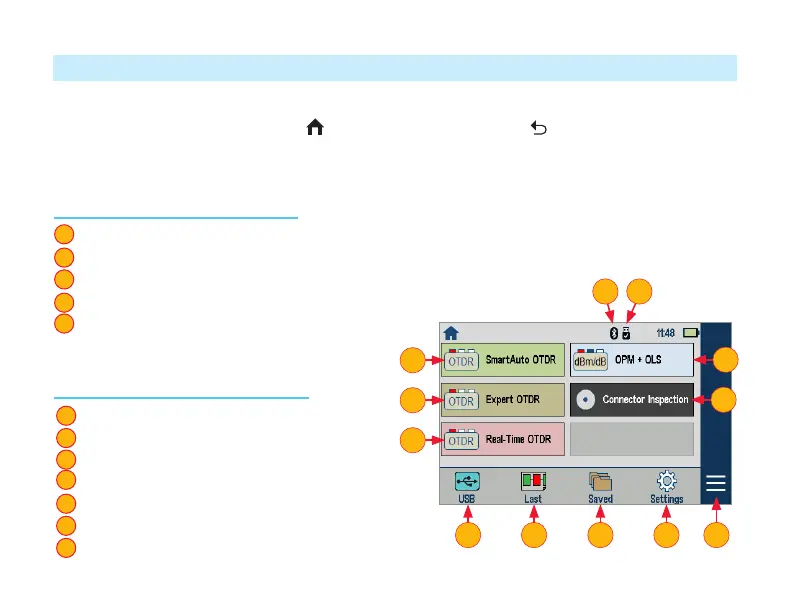

Home Screen
The Home screen is the FlexScan’s Main menu that is displayed at startup. While in any other screen, return to
Home by either pressing the Home button or touching (if available) the Back soft key. This screen
contains menus of Test and Utility modes that allow users to set test parameters, select user preferences,
manage saved test results, congure general settings and perform other non-test functions.
Test Modes and Features Summary
1. SmartAuto
™
OTDR: Congure and run SmartAuto OTDR test using multi-pulse acquisition.
2. Expert OTDR: Congure and run Expert OTDR test with averaging.
3. Real Time OTDR: Congure and initiate OTDR test with real-time updates.
4. Source & Power Meter: Enable light source and/or measure optical power.
5. Connector Inspection: View connector inspection
results received via Bluetooth from FOCIS Flex auto-
focus probe.
Utility Modes and Features Summary
6. USB: Touch to enable le transfer.
7. Last: Touch to view the most recent test results.
8. Saved: Touch to recall and view saved test results.
9. Settings: Touch to access General Settings menu.
10. Menu: Touch to view Device Information screen.
11. Bluetooth: Indicates Bluetooth enabled.
12. USB: Indicates external USB memory stick detected.
1
2
3
4
5
6
7
8
9
10
11
12
4
5
8 9 10
11 12
76
2
1
3
