·The AC (grid) voltage must not exceed inverter’s range
·The phase-line from AC distribution box are correctly connected
·Use the AC plugs in the accessory
·The surge protector should be equipped between grid and inverter
·Disconnect the AC (grid) switch during wiring
Installation
12
Warning:
The fatal high voltage may on the AC side, please comply with
electric safety when connecting.
Please make sure the right line of AC grid connected with inverter,
otherwise inverter could be damaged.
Note:

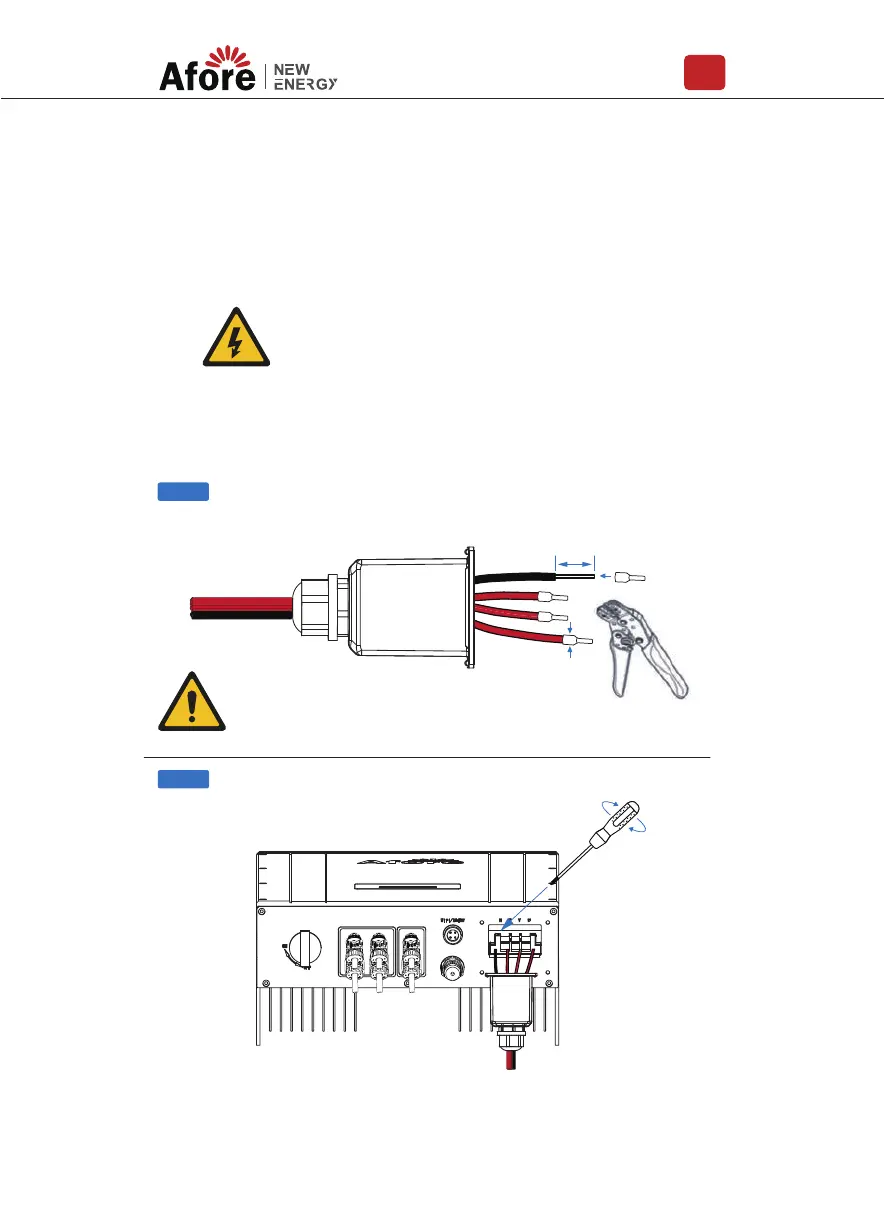

Please use PV connector crimper
to pinch the point of the arrow
Unscrew the row of screws, insert the wire harness into the N, W, V, U caps one by one, and
tighten the screws
N=Neutral line
W, V, U=Live line
Step 1
Step 2
10±0.5mm
Sectional Area > 6mm²
To Next Page
