Commissioning
20
Before starting up commissioning at site, please make sure below procedures
and requirements are fully meet.
· Mounting location is meet the requirements.
· All of the electrical wiring is firmly connected, including PV wiring, Grid wiring
and Earth wiring.
· The inverter setting has been finished accordingly to local standards or
regulations.
Commissioning Procedures
· Turn on the AC switch between inverter output and the public grid;
· Turn on the DC switch on the inverter;
· Turn on the PV switch of the system.

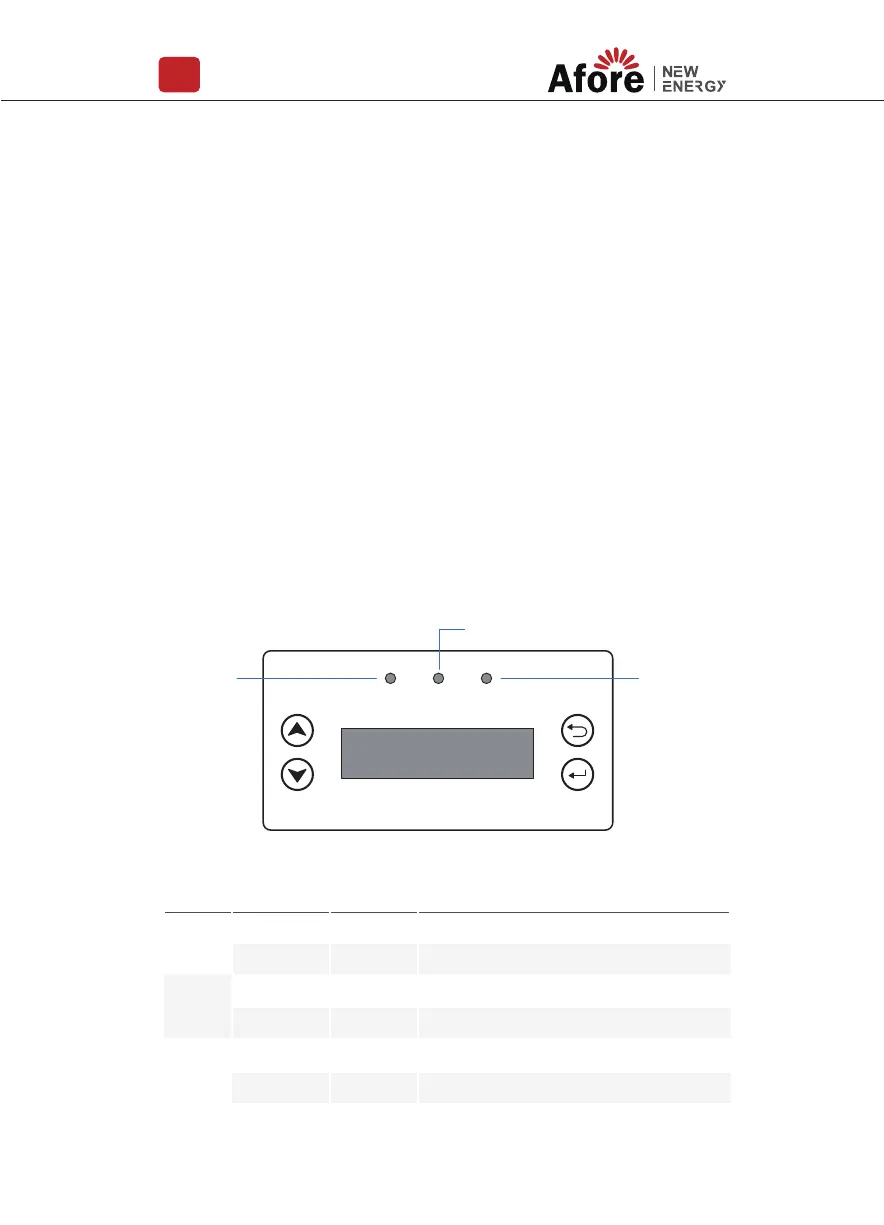

5.Commissioning
DOWN ENT
UP ESC
POWER FAULTCOM
FAULT
Red LED
Green LED
Green LED
POWER
COM
LED Indication
Sign Color Explanation
COM
GreenOn
Off
On
Off
On
Off
Green
Red
FAULT
Inverter is feeding power
Inverter is not feeding power at the moment
Power On
No Power
Fault occurred
No fault
POWER
Power
