The inverters are designed for indoor and outdoor installation (IP65), to increase
the safety, performance and lifespan of the inverter, please select
the mounting location carefully based on the following rules:
The inverter should be installed on a solid surface, far from flammable or
corrosion materials, where is suitable for inverter’s weight and dimensions.
The ambient temperature should be within -25℃ ~ 60℃ (between -13 °F and
140°F).
The installation of inverter should be protected under shelter. Do not expose the
inverter to direct sunlight, water, rain, snow, spray lightning, etc.
Installation
07

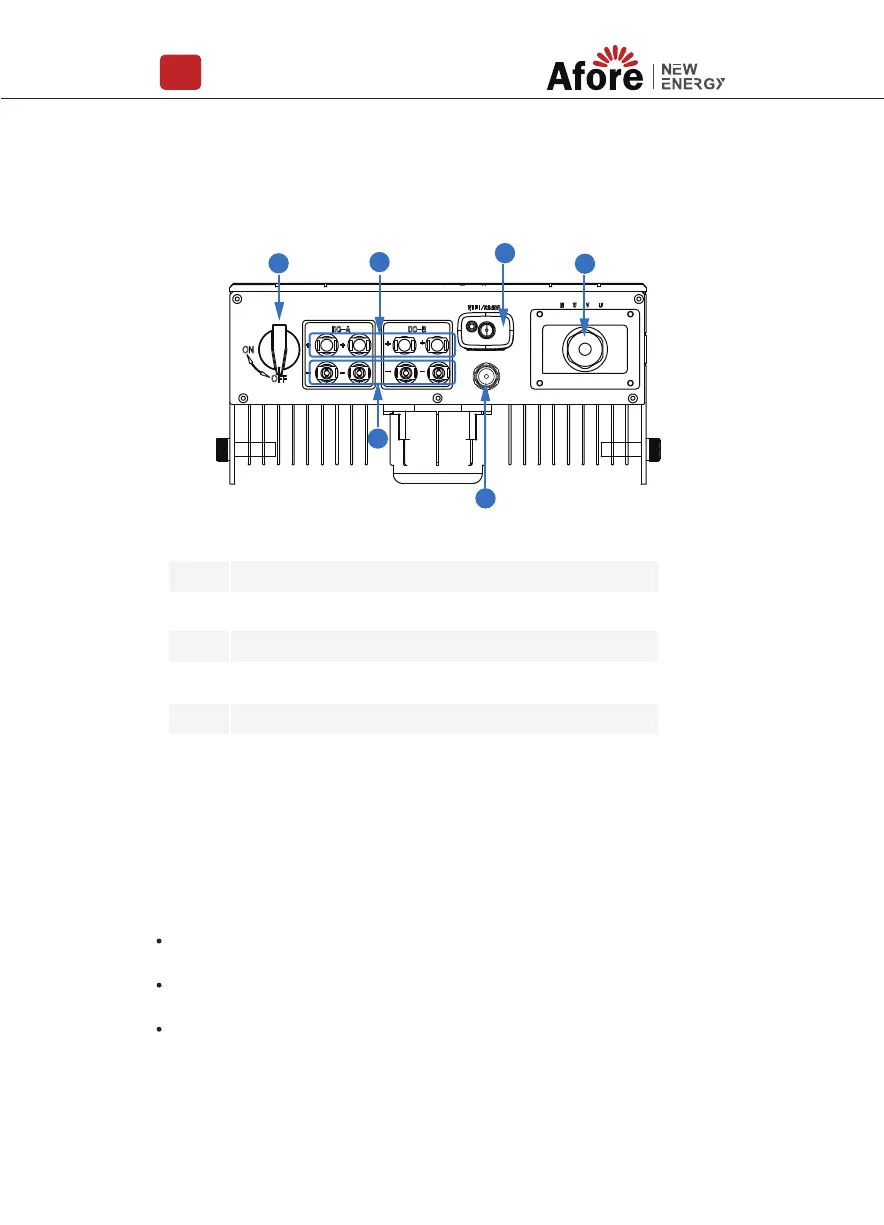

3.3 Mounting Location
No.
1
2
3
4
5
6
DC Switch
DC Connectors ( + ) For PV Strings
DC Connectors ( − ) For PV Strings
AC Connector
Monitor Module Port
Zero-Injection Port (Optional)
Items
BNT017-020KTL
4
1
2
5
3
6
