TO CHANGE IGNITION GENERATOR
1. Turn o electricity supply.
2. Remove top plate and hotplate (See REMOVAL OF TOP
PLATE and REMOVAL OF HOTPLATE).
3. Remove two screws retaining the generator xing
bracket to the burner mounting panel, and remove
generator (Fig. 19.5).
4. Carefully remove all wiring from ignition generator (Fig.
19.5).
5. Re-assemble in reverse order and check operation of
ignition to hotplate burners.
TO CHANGE IGNITION ELECTRODE
1. Turn o top plate and hotplate (See REMOVAL OF TOP
PLATE and REMOVAL OF HOTPLATE).
2. Disconnect the electrode cable from the ignition
generator.
3. Remove spring clip retaining electrode to burner body
(Fig. 19.6) and remove electrode and cable.
4. Replace with new electrode ensuring spring clip is
correctly located into burner body.
5. Re-assemble in reverse order and check operation of
ignition to hotplate burners.
DESN 511649

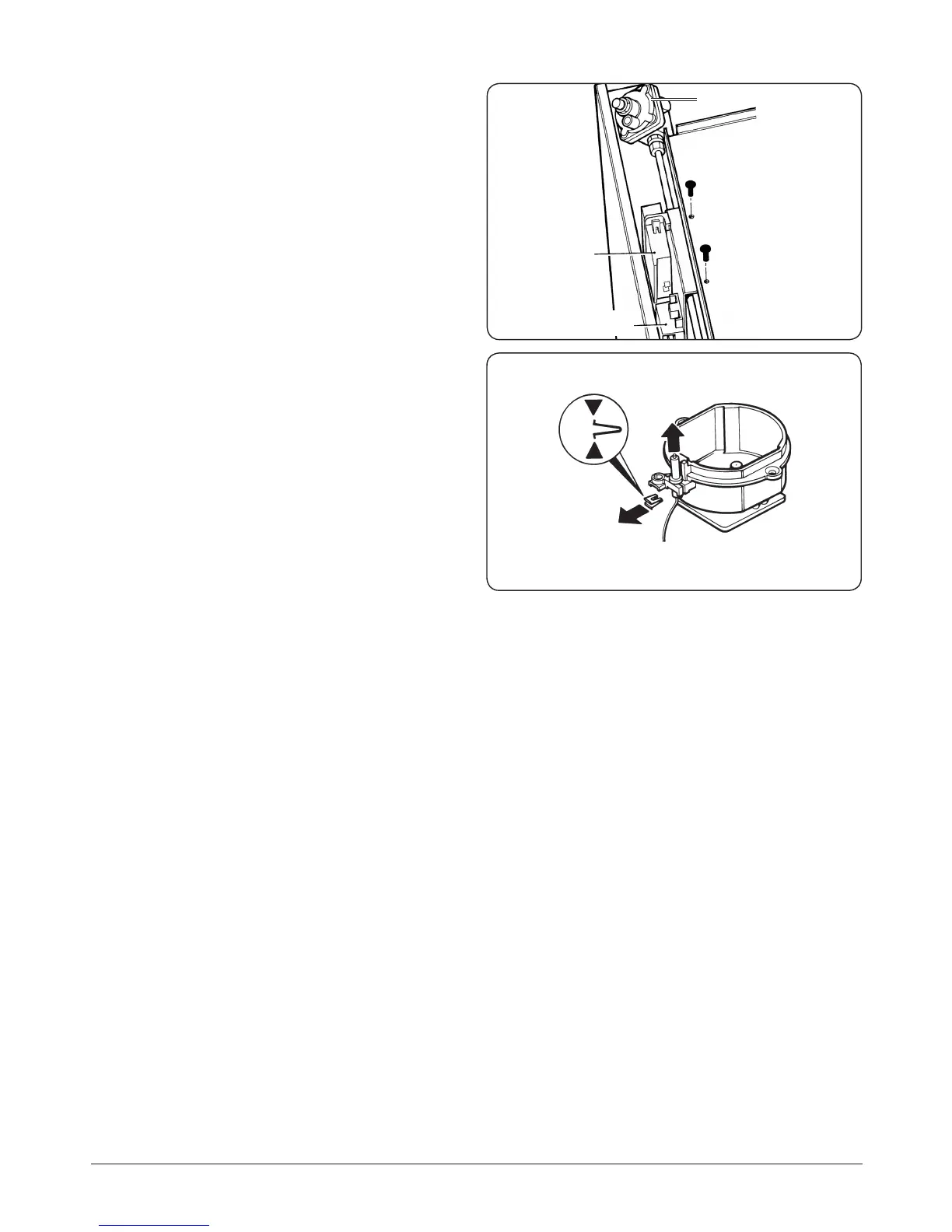

Fig. 19.6
DESN 511792
SPARK
GENERATOR
TERMINAL
BLOCK
Fig. 19.5
GAS REGULATOR
