26
Electrical Connection
Electrical connections are located at the back of the
appliance.
Refer to Fig. 11.4 and Fig. 11.5 for wiring connection to the
appliance.
Remember that an excess of cable length is required for the
possible withdrawal of the cooker.
The total electrical load of the appliance is approximately
3.5 kW. The cable size used should be suitable for this load
and comply with all local requirements (i.e. PVC Insulated
Cable IEC 60227 - code 53 for ordinary cables).
Always double check connections and ensure terminals are
fully tightened and the cable is secured to the cable clamp.
The isolator should NOT be positioned immediately
above the Module, but must be sited within 2 metres
of the appliance.
The appliance requires a 30 / 32 amp power supply tted
in conjunction with a double pole isolator with a minimum
contact clearance of 3 mm and be connected to the mains
with a minimum 4 mm² cable to comply with the latest
editions of the local and national wiring regulations.

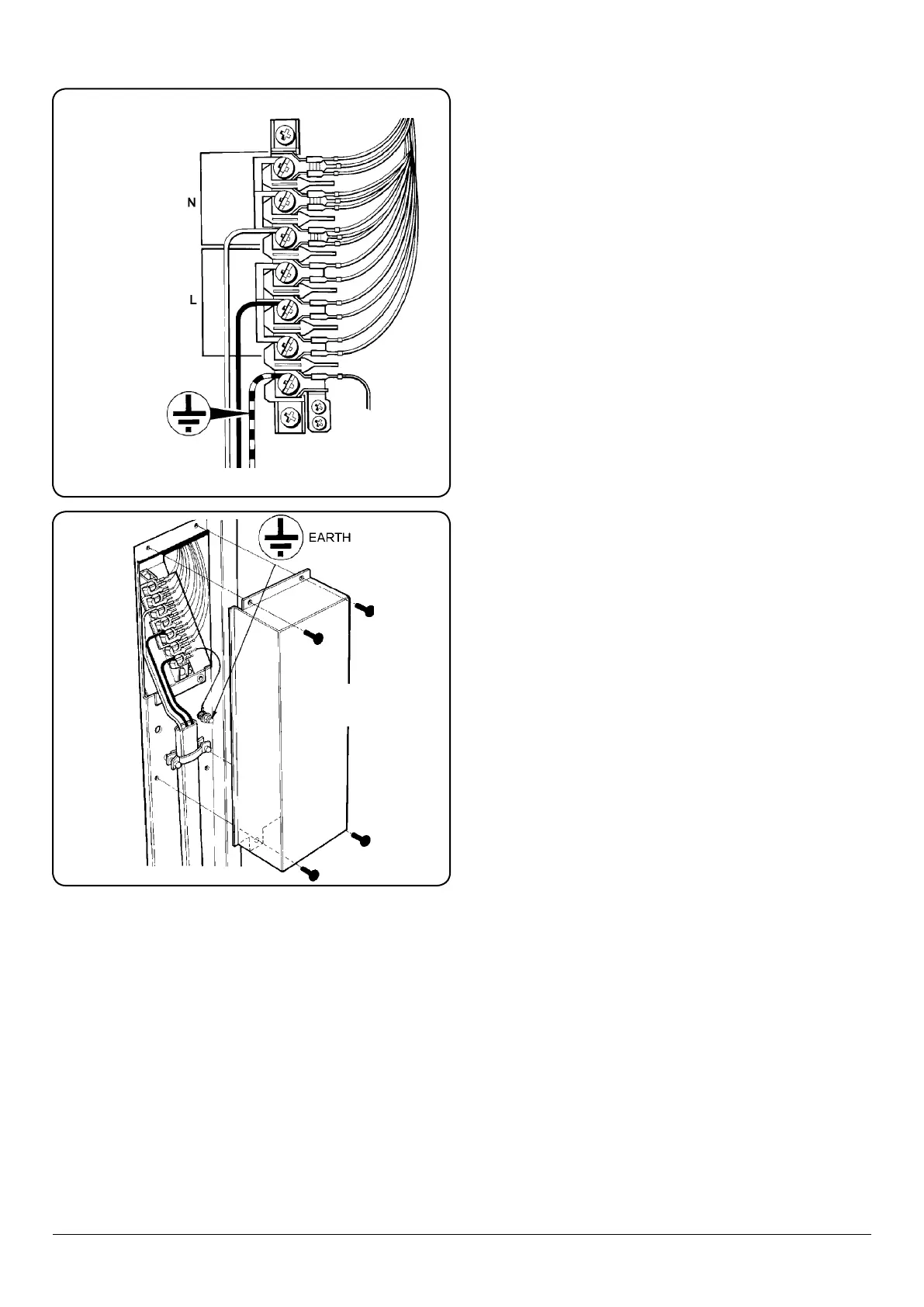

Fig. 11.4
Fig. 11.5
DESN 513370
DESN 513372 A
SINGLE PHASE
CONNECTION -
Minimum
4 mm² and must
comply with the
latest editions
of the local and
national wiring
regulations
REMOVE COVER (4 SCREWS)
TO GAIN ACCESS TO THE
MAINS TERMINAL
