16
SERVICING WARNING
Disconnect from electricity before servicing. Check appliance is safe when you have finished.

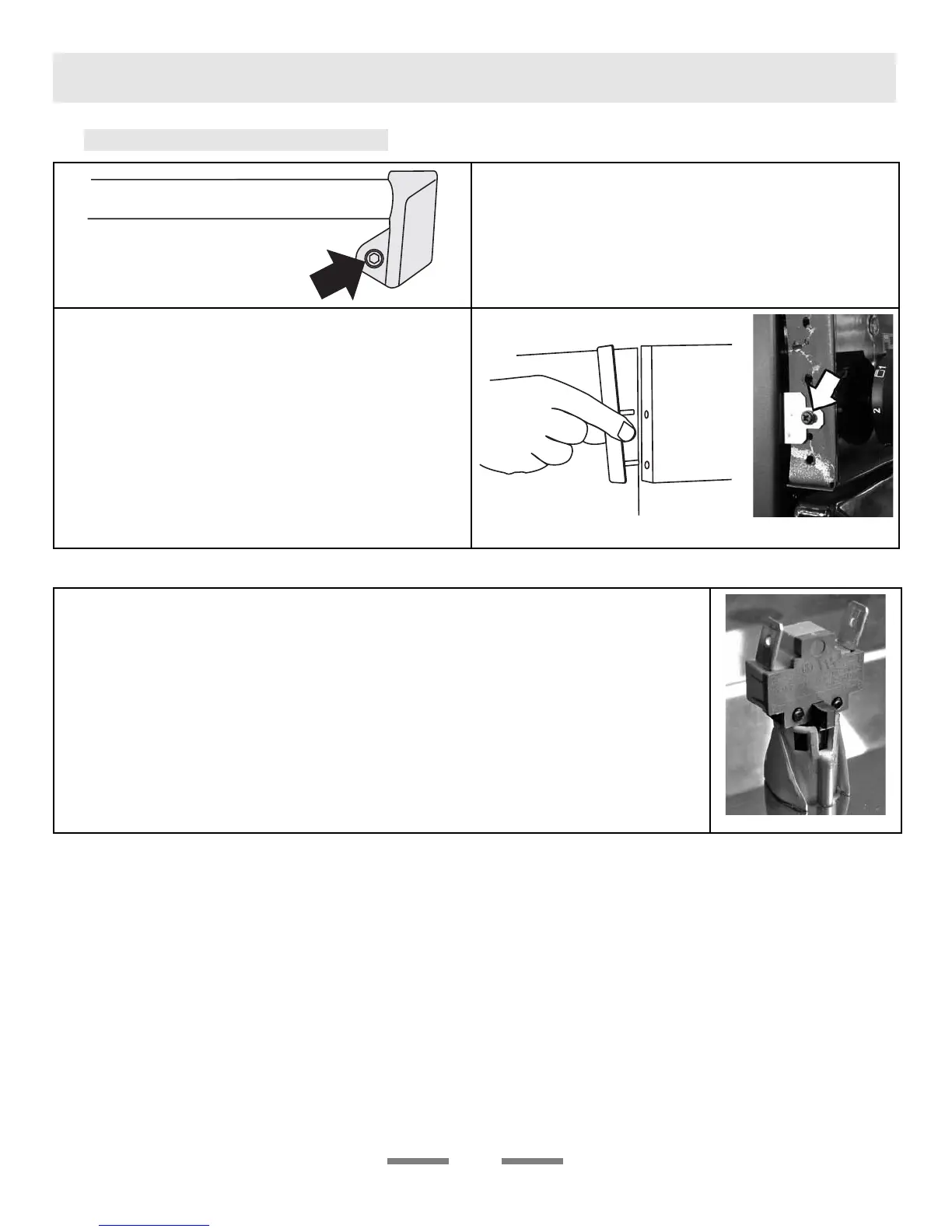

7. To Remove the Control Panel
Turn off the power at the circuit breaker.
Remove the handrail by fi rst removing the 2 plastic
screw cover plugs and then the end bracket fi xing
screws beneath the plugs.
Remove the two screws that were hidden beneath the
hand rail end brackets.
Pull off the push fi t control panel end caps at each end and
remove the end fi xing screws under the end cap.
Pull off all the control knobs. Open the broiler and
oven doors and remove the control panel fi xing screws
underneath the control panel. The screws directly below
the clock are for the clock fi xing bracket - don’t remove
them at this stage.
Lift the control panel, pull forward and disconnect the
wiring from the rear.
Reassemble in reverse order. When replacing leads refer to
the wiring diagram. Check operation of timer.
8. To Remove Oven Light Switch
Remove control panel (see 7).
NB The old switch may be destroyed during removal.
Remove switch button and old switch from its bezel by gripping the switch body
behind the control panel and twisting sharply
The switch bezel can then be removed by folding back its locking ‘wings’ and pushing
forward. Fit the new bezel to the control panel by fi rst lining up the raised key on its
body with the cut-out in the control panel and pushing it in from the front. Assemble
the new switch to the bezel by lining up the key sections and pushing home. Fit the
new button by pushing in from the front.
Replace control panel in reverse order and test for correct operation.
