25
SERVICING WARNING
Disconnect from electricity before servicing. Check appliance is safe when you have finished.

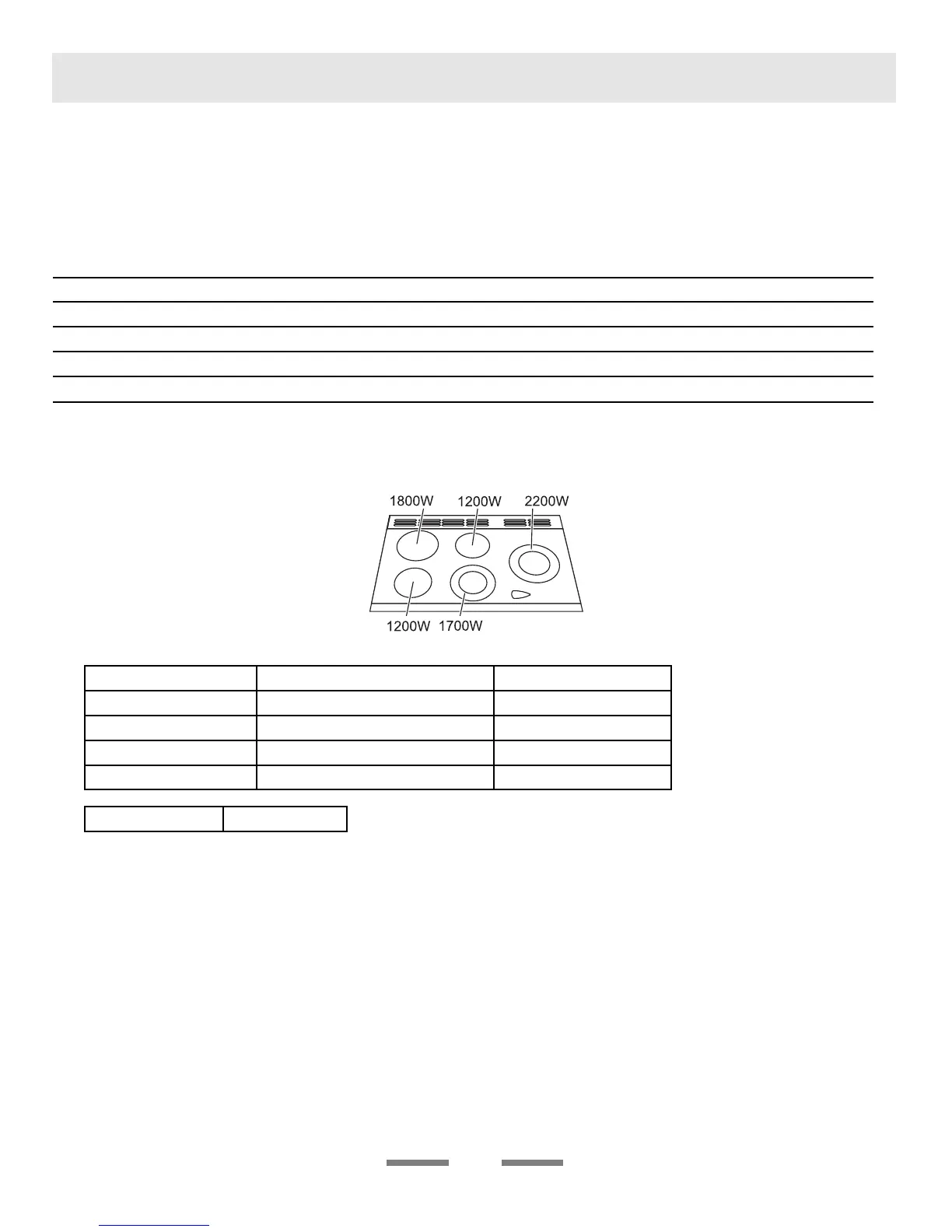

Technical Data
INSTALLER: Please leave these instructions with the User.
DATA BADGE LOCATION: Under the Main oven. Remove the plinth by pulling forward (it is held in place by
magnetic catches) and pull forward on the sheet metal tag under the center of the oven to swing out the badge
plate.
Dimensions
Overall height (splash not fi tted) minimum 35 3/8” (89.8 cm) maximum 36 7/16” (92.5 cm)
Overall width 35 1/2” (90cm) See ‘Positioning the Range’
Overall depth with spacer 28 3/4” (73cm)
Space for fi xing See ‘Positioning the Range’
Minimum space above cooktop 30” (76cm)
Connections
Electric: 208 -
240 V 60 Hz (120volt oven lights / 120volt neons)
Ratings
Ovens
Left hand Multifunction Oven Right hand Fan Oven
Fan element 2500W 2500W
Top element 1200W
Browning Element 1150W
Bottom element 1000W
Broiler
2300W
Maximum total electrical load at 240V 15500W (approximate total including oven lights, oven fan etc.)
Recommended power cord rating 50 ampere in line with Nation Electrical code ANSI/NFPA 70
Total current draw approximately 64.6A
