SERVICING WARNING
Disconnect from electricity before servicing. Check appliance is safe when you have finished.

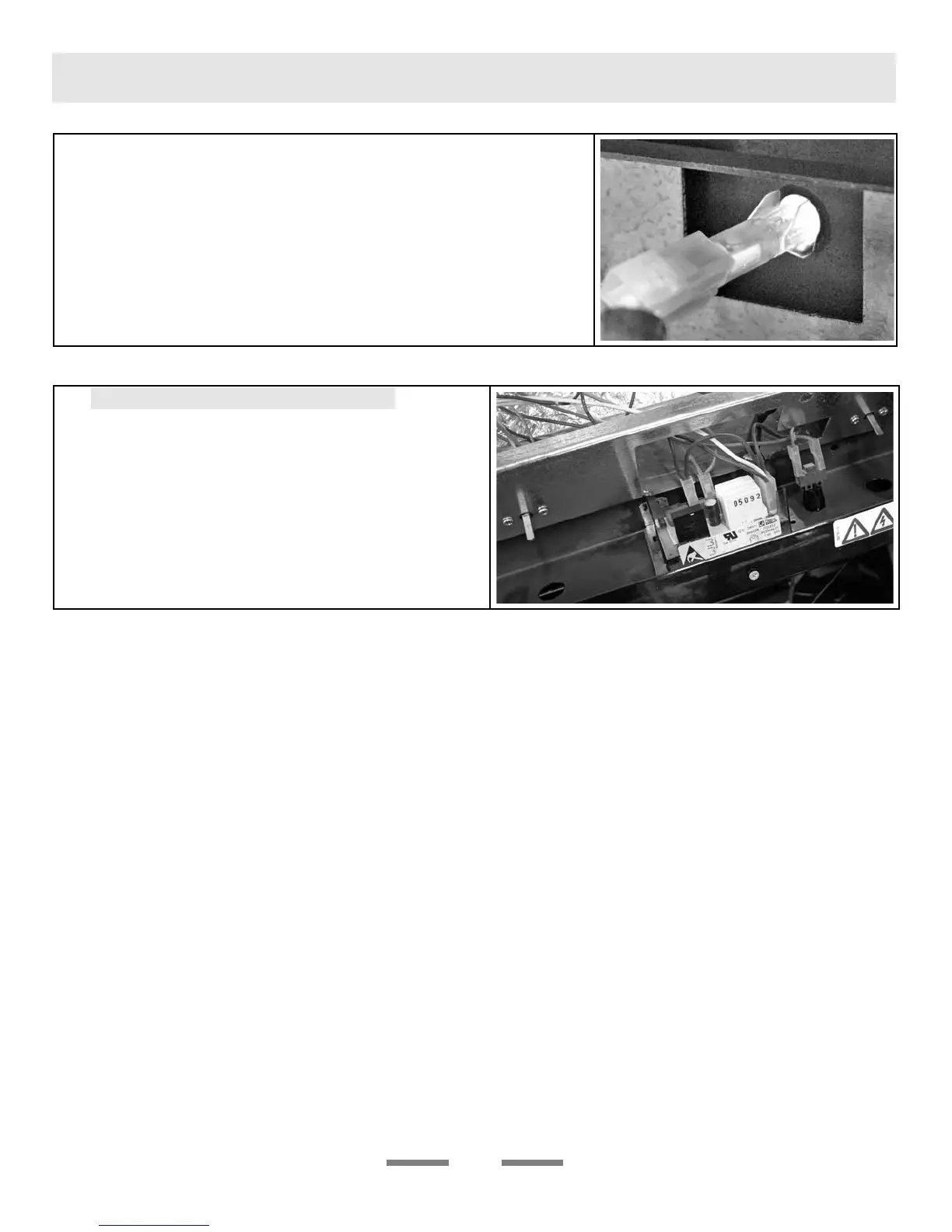

9. To Remove Oven indicator neon Light
Remove control panel (see 7).
NB The old indicator neon may be destroyed during removal.
Disconnect the wires from the rear of the neon. The light can then be
removed by folding back its locking ‘wings’ and pushing forward. Fit
the new light to the control panel by fi rst lining up the raised key on
its body with the cut-out in the control panel and pushing it in from
the front.
Replace control panel in reverse order and test for correct operation.
10. To Remove Electronic Timer
Turn off the power at the circuit breaker.
Pull off the timer control buttons and remove the
control panel (See 7). Remove the timer/mounting
bracket assembly from the control panel by removing
the two fi xing screws. Remove the timer from its
mounting bracket by depressing the plastic lugs on the
timer case, at the same time pulling the unit forward.
Reassemble in reverse order. When replacing leads
refer to the wiring diagram. Check operation of timer.
