SERVICING WARNING
Disconnect from electricity before servicing. Check appliance is safe when you have finished.
23 . To Remove the Left Hand Multifunction Oven Bottom and Top Elements
Bottom Element
Pull the range forward to access the rear of the range,
see the section ‘How To Move the Range for Servicing’.
Remove the screws that secure the right hand (when
viewed from the rear) cover and lift it clear.

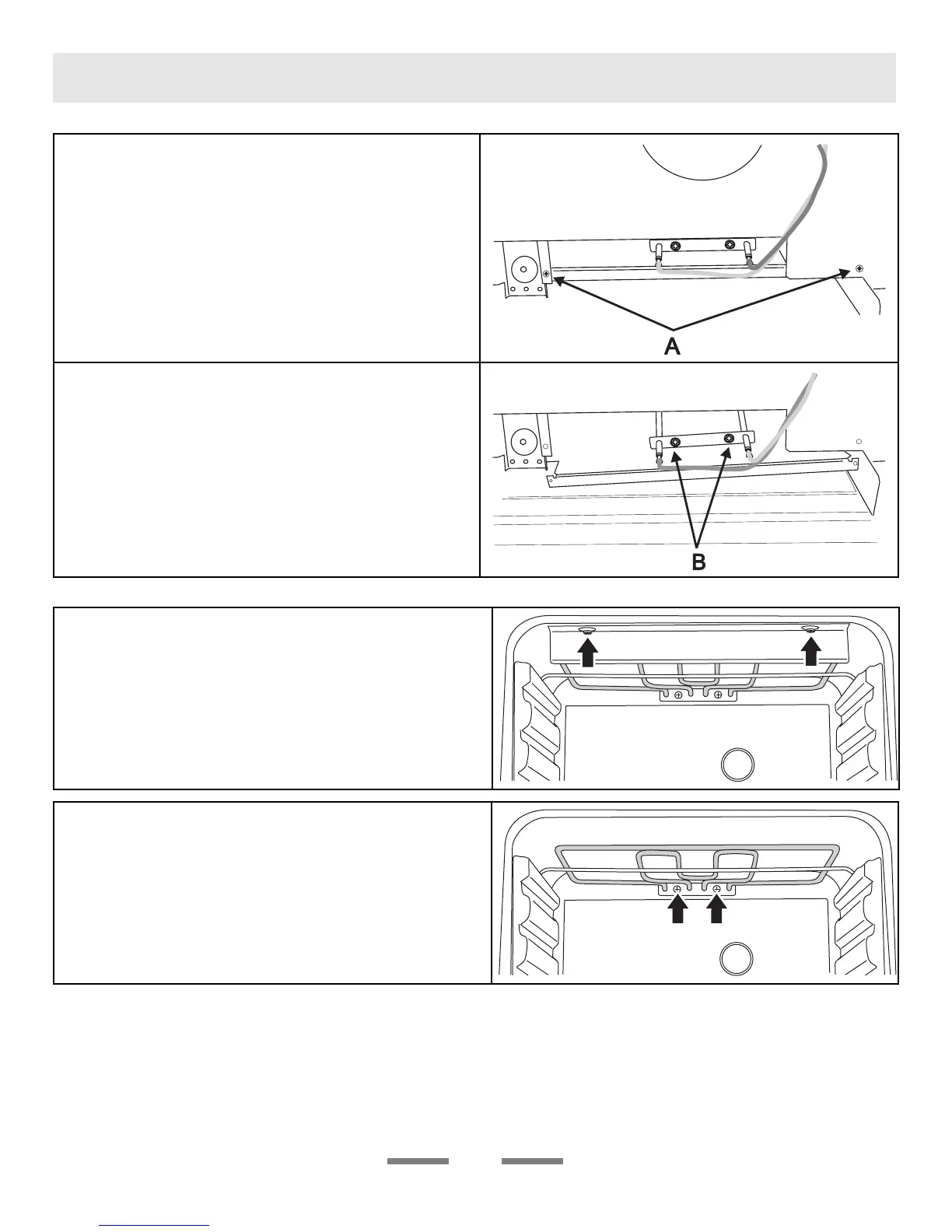

Remove the 2 screws ‘A’ and allow the plate to drop
down.
Remove the 2 screws B, holding the element to the
bottom sheet.
Disconnect the leads, noting the colors and
connection positions.
Withdraw bottom element. Fit the new element and
re-assemble parts in reverse order.
Top Element
Open the left hand oven door and undo the screws that
secure the heat shield and remove the shield.
Remove the top element bracket screws and withdraw
element.
Disconnect the leads, noting the colors and connection
positions.
Fit the new element and re-assemble parts in reverse
order. Check that the oven operates satisfactorily.
