38
Read all instructions before installing or using this appliance.
Installation Instructions
Save these instructions for future reference.
Electrical Connection
When installed the range must be
electrically grounded in accordance with
local codes or; in the absence of local
codes with the National Electrical Code
ANSI/NFPA 70, latest edition.
Electrical Power Supply
Requirements
Electrical Requirements
CAUTION: FOR PERSONAL SAFETY, DO NOT
USE AN EXTENSION CORD WITH THIS
APPLIANCE. REMOVE HOUSE FUSE OR
OPEN CIRCUIT BREAKER BEFORE
BEGINNING INSTALLATION.
This appliance must be supplied with the proper
voltage and frequency, and connected to an
individual, properly grounded branch circuit,
protected by a circuit breaker or time-delay fuse,
as noted on the rating plate.
Wiring must conform to National Electric Codes.
If the electric service provided does not meet
the above specifications, have a licensed
electrician install an approved outlet.
Because range terminals are not accessible
after range is in position, flexible service conduit
or cord must be used.

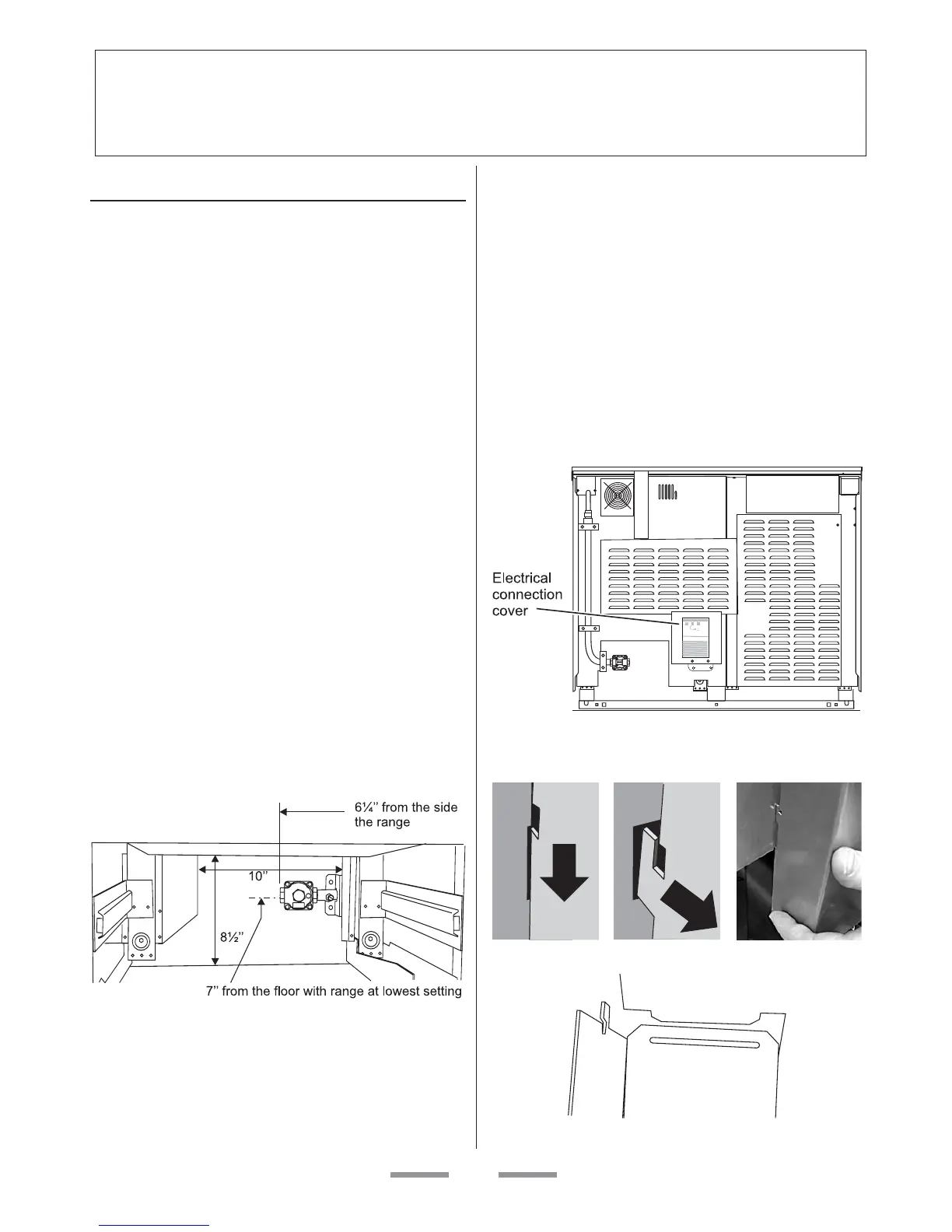

Recommended Electrical Outlet Locations
When connecting using a NEMA 14-50R
receptacle, if possible position it so that it can be
accessed through the opening at the rear of the
drawer cavity. The range can then be easily
disconnected for servicing etc.
Provide Proper Electrical Supply
This range must be supplied with 208/240 volt,
60 Hz., and connected to an individual, properly
grounded branch circuit protected by a circuit
breaker or time-delay fuse (40 amp). The
receptacle must be NEMA 14-50R to accept the
4-prong plug supplied with the range.
If the electrical service provided does not meet
the above specifications, it is recommended that
a licensed electrician install an approved outlet.
Locate the electric supply as illustrated.
Connect the Range to the Electrical
Supply
To remove the electrical connection cover first
remove the screws on the bottom edge. The
cover has two side and one bottom location tags.
Slide the cover down to free the side tags.
Free from the bottom tag.
To Next Page
