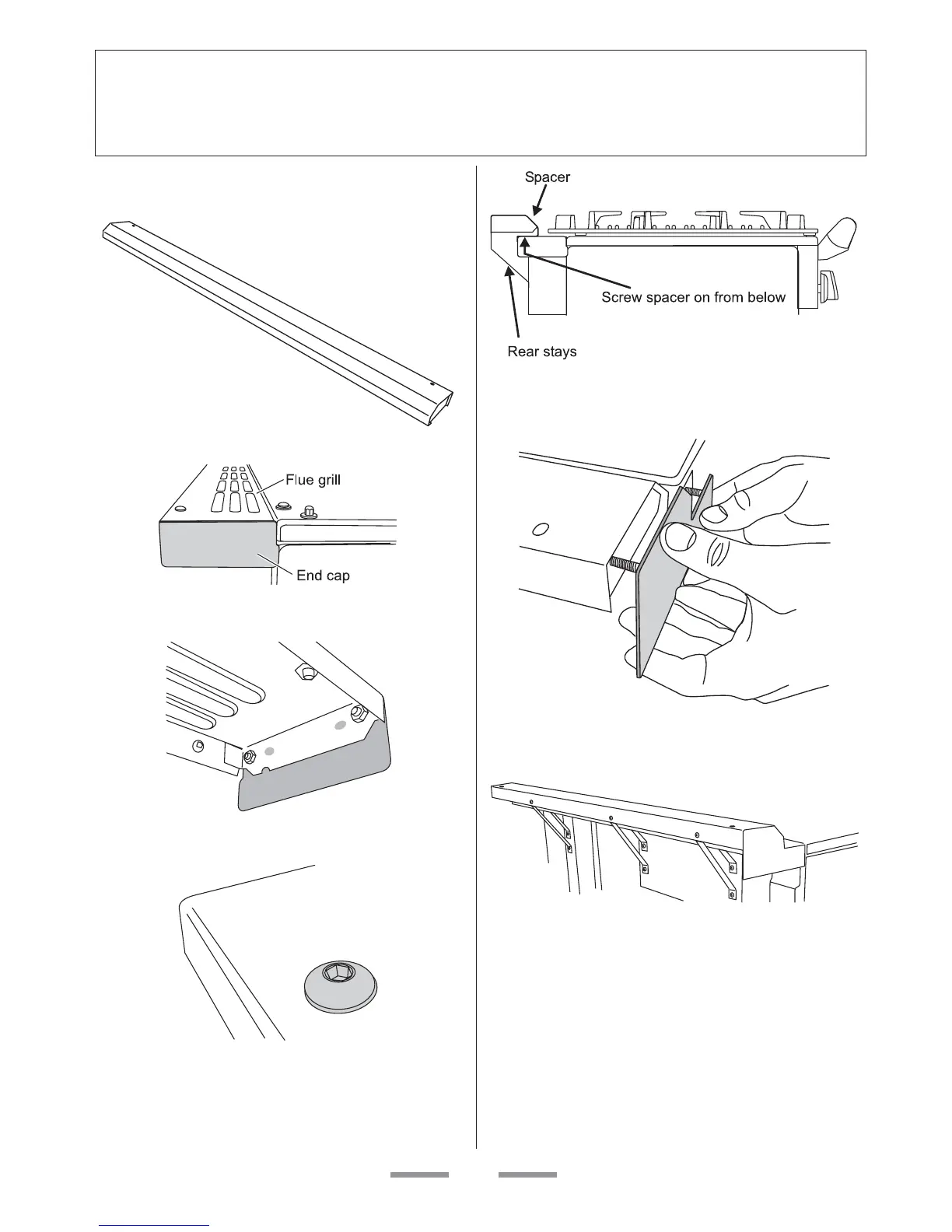

Fitting the rear spacer (optional -
but required for 24’’ deep cabinets)
Rear spacer.
The two end caps (one each end) of the
standard rear flue grille must first be removed.
They are held in place by two fixing nuts on the
inside face.
Remove the two fixing screws (3mm hexagonal
socket head) and nuts that pass through the top
of the rear flue grille.
Hold the spacer in position. From below the rear
flue grill use the 2 screws to fix the spacer in
position.
Fit the new end caps to the rear spacer and flue
grille and hold in place with the nuts and spring
washers supplied.
Screw the rear stays to the range back. Note:
the stays are of different lengths.
If you are not fitting the splashback the
splashback mounting holes can be blocked with
the extra screws supplied.
To Next Page
