Read all instructions before installing or using this appliance.
Installation Instructions
Save these instructions for future reference.

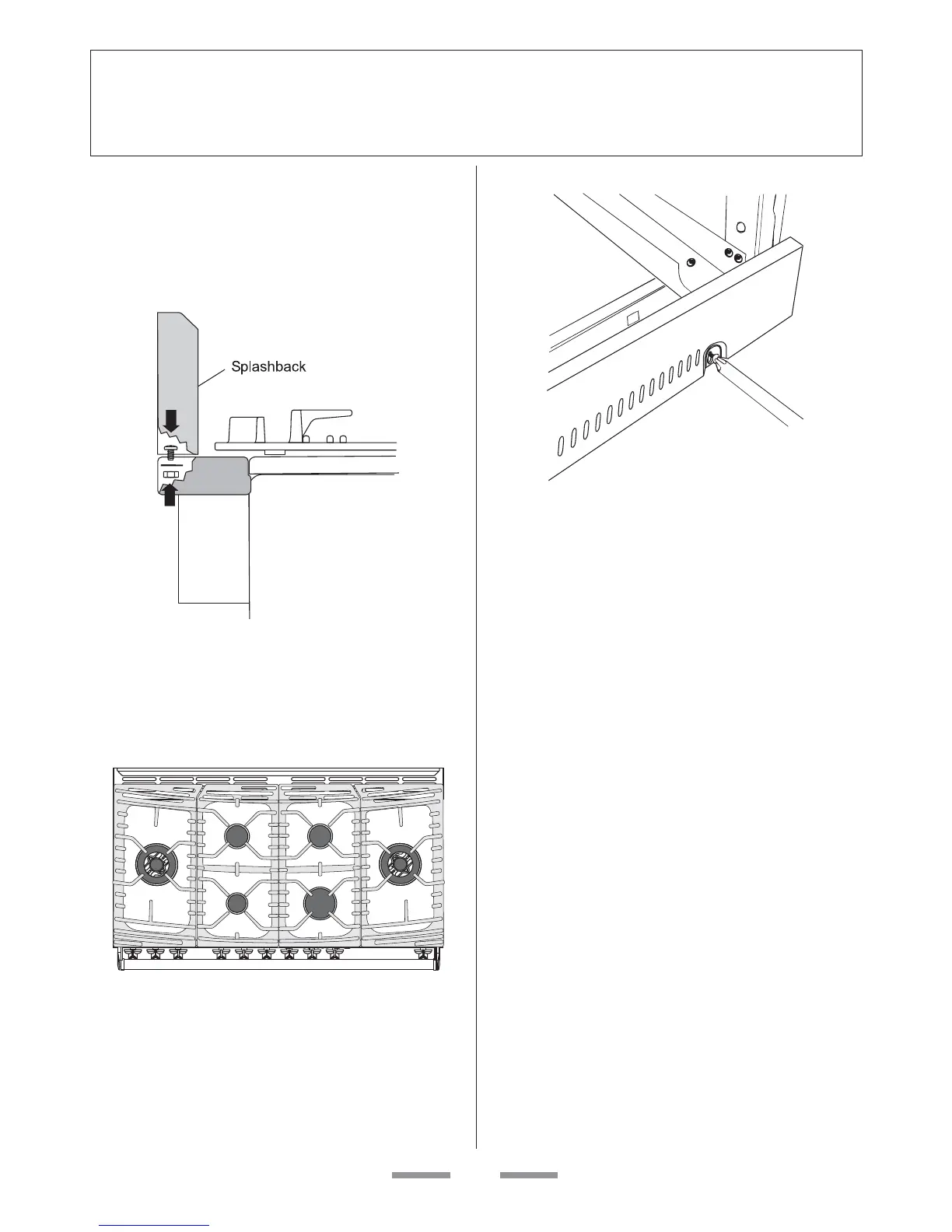

Fit the splash back (optional)
If the rear spacer is not fitted.
Remove the two fixing screws (3mm hexagonal
socket head) and nuts that pass through the top
of the rear flue grille. Hold the splash back in
position.
From the rear refit the 2 fixing screws and nuts.
If the rear spacer is fitted
Hold the splash back in position. From the rear
refit the 2 fixing screws and nuts.
Assemble the Grates
Each grate is different. Make sure that the
grates are in the correct position and sitting
down.
Fit the plinth
Loosen the 3 screws along the front bottom
edge of the range. Hook the central keyhole
over the central screw. Twist and fit each end
keyhole over their respective screws. Tighten
the fixing screws.
Refit the storage drawer
To refit the drawer pull out the side runners.
Rest the drawer back on the side runners and,
keeping it level, push it right back. The clips
should click into position holding the drawer to
the side runners. Replace the drawer by locating
on side runners and push in.
