Read all instructions before installing or using this appliance.
Installation Instructions
Save these instructions for future reference.
Dimensions and clearances
Provide adequate clearances between the
range and adjacent combustible surfaces. These
dimensions must be met for safe use of your
range. The location of the electrical outlet and
pipe opening (see Gas Pipe and Electric Outlet
Locations) may be adjusted to meet specifi c
requirements.
Positioning the Range

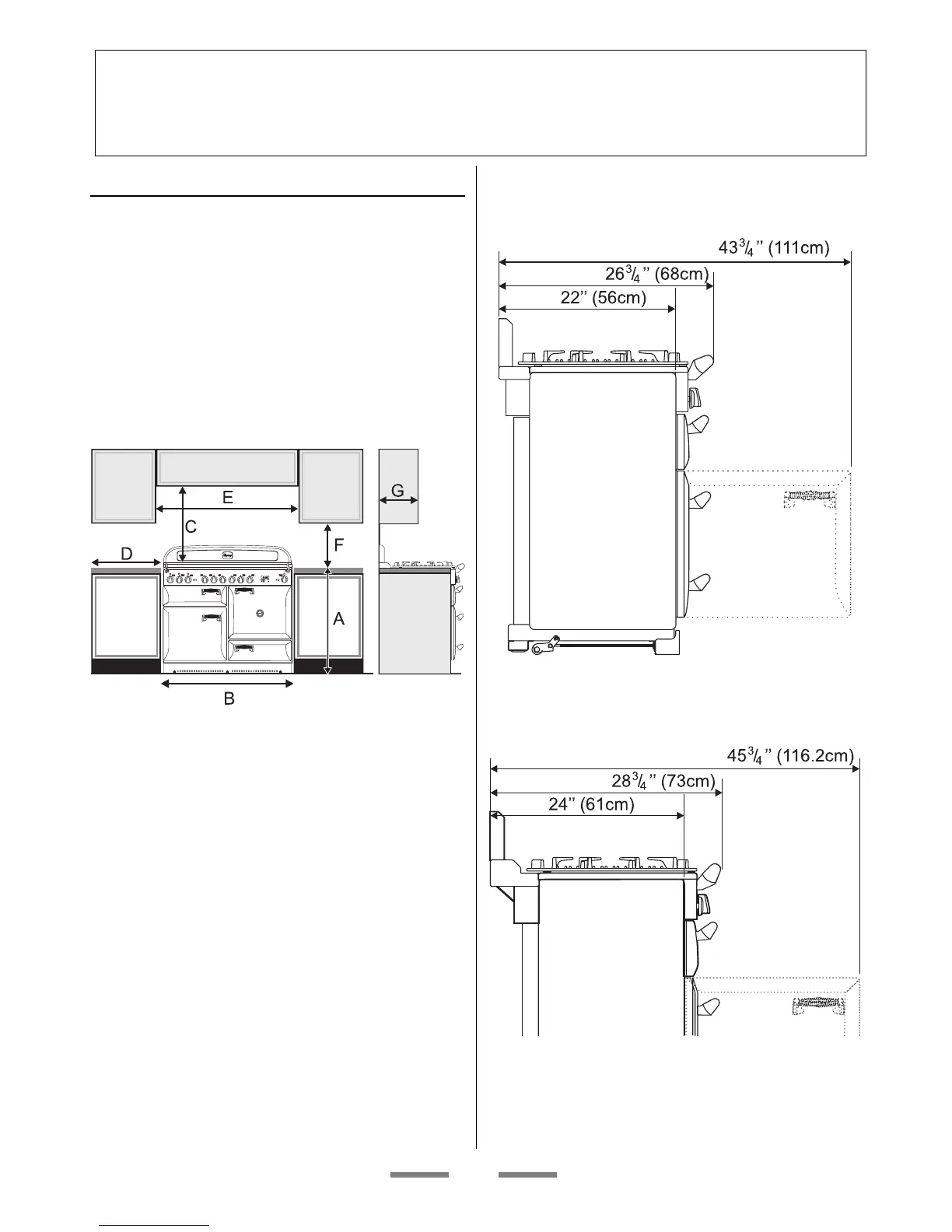

The diagrams below show the minimum
recommended distance from the range to
nearby surfaces.
A Min 35
3
/8’’(89.8cm) Max 36
7
/16 (92.5cm)
B Min 43
5
/16
’’ (110cm) - 43
11
/16
” (111cm)
recommend to allow for moving the range)
For Canada Min 44
5
/16
” (112.5cm)
C Min 30’’ (76cm)
D Min 3’’ (7.5cm) but see below about door
opening.
E Min 50’’ (127cm)
F Min 18’’ (43cm)
G Maximum 13’’ (33cm)
The cooktop surround should be level with,
or above, any adjacent work surface. Above
cooktop level a gap of 3” should be left between
each side of the range and any adjacent vertical
surface.
For non-combustible surfaces (such as
unpainted metal or ceramic tiles) this can be
reduced to 1”.
A minimum space of 30” is required between the
top of the cooktop and a horizontal combustible
surface.
The maximum depth for cabinets installed above
cooktops is 13’’.
The standard depth of the range is 26
3
/
4
’’ overall.
If the range is to be installed between 24’’ deep
cabinets the optional rear spacer should be fi tted
to move the range 2’’ forward. See the spacer
fi tting instruction section of these instructions.
Any range hood should be installed in
accordance with the hood manufacturer’s
instructions.
For safety reasons curtains must not be fi tted
immediately behind the range.
