45
Read all instructions before installing or using this appliance.
Installation Instructions
Save these instructions for future reference.

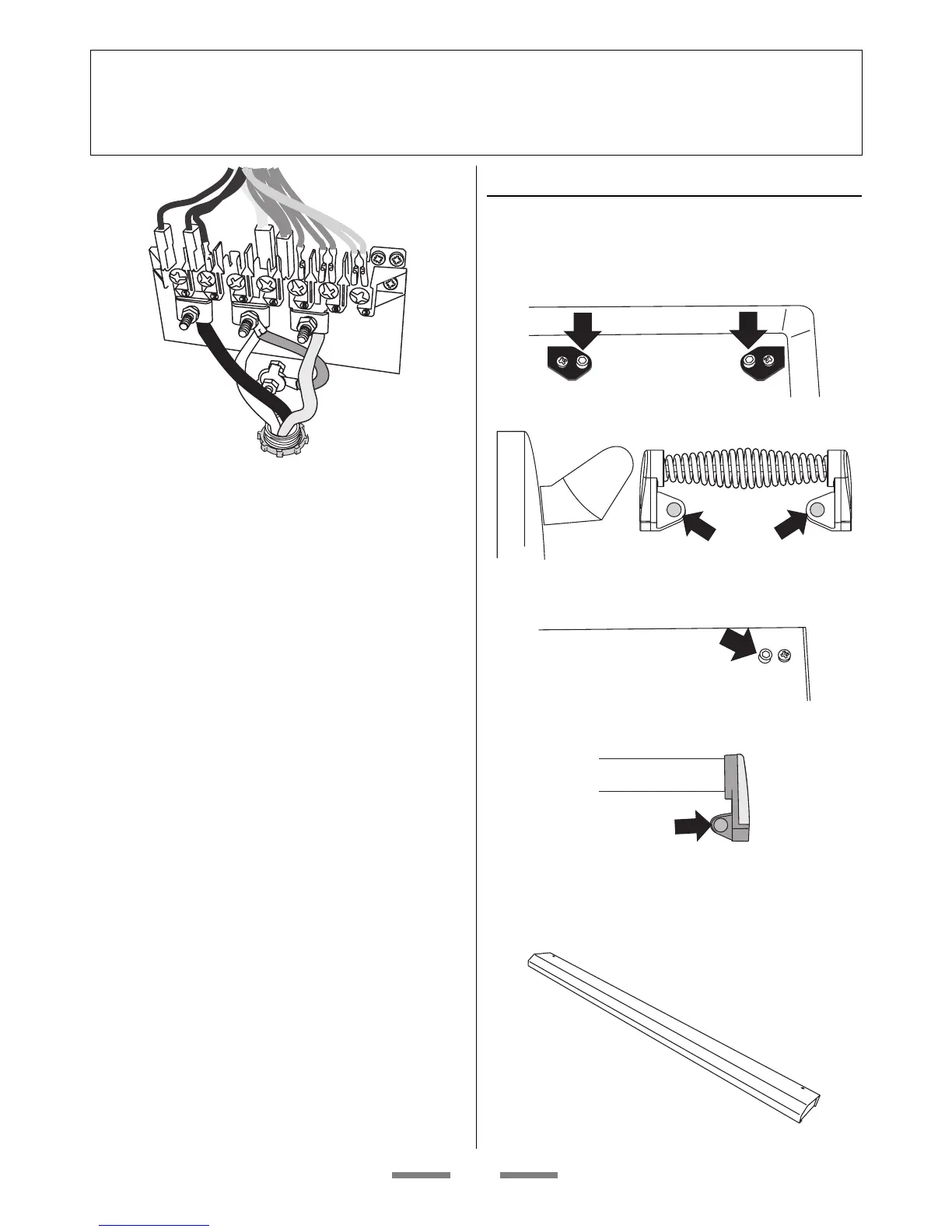

The neutral or ground wire of the power cord
must be connected to the neutral terminal
located in the center of the connector block. The
power leads must be connected to the outside
terminals.
NOTE: Make sure the wires are completely
inserted into the terminals and secure
connections are made.
Secure the squeeze connector in place in the
bracket by tightening the squeeze connector
screws.
Seal the Openings
Seal any openings in the wall behind the range
and in the fl oor under the range when hookups
are completed.
When all Connections are
Completed
MAKE SURE THE FLOW OF COMBUSTION
AND VENTILATION AIR TO THE RANGE IS
UNOBSTRUCTED.
Assemble the range
Fit the Door Handles
Remove the 4mm Hex headed screws from the
doors with the hexagon key tool. Use the screws
to fi t the door handles.
The handles should be above the fi xings.
Fit the plastic blanking plugs to the fi xing holes.
Fit the Handrail
Remove the 4mm Hex headed screws from the
top corners of the fascia.
Fix the front handrail in position. Fit the plastic
blanking plugs to the fi xing holes.
Fitting the rear spacer (optional -
but required for 24’’ deep cabinets)
Rear spacer.
